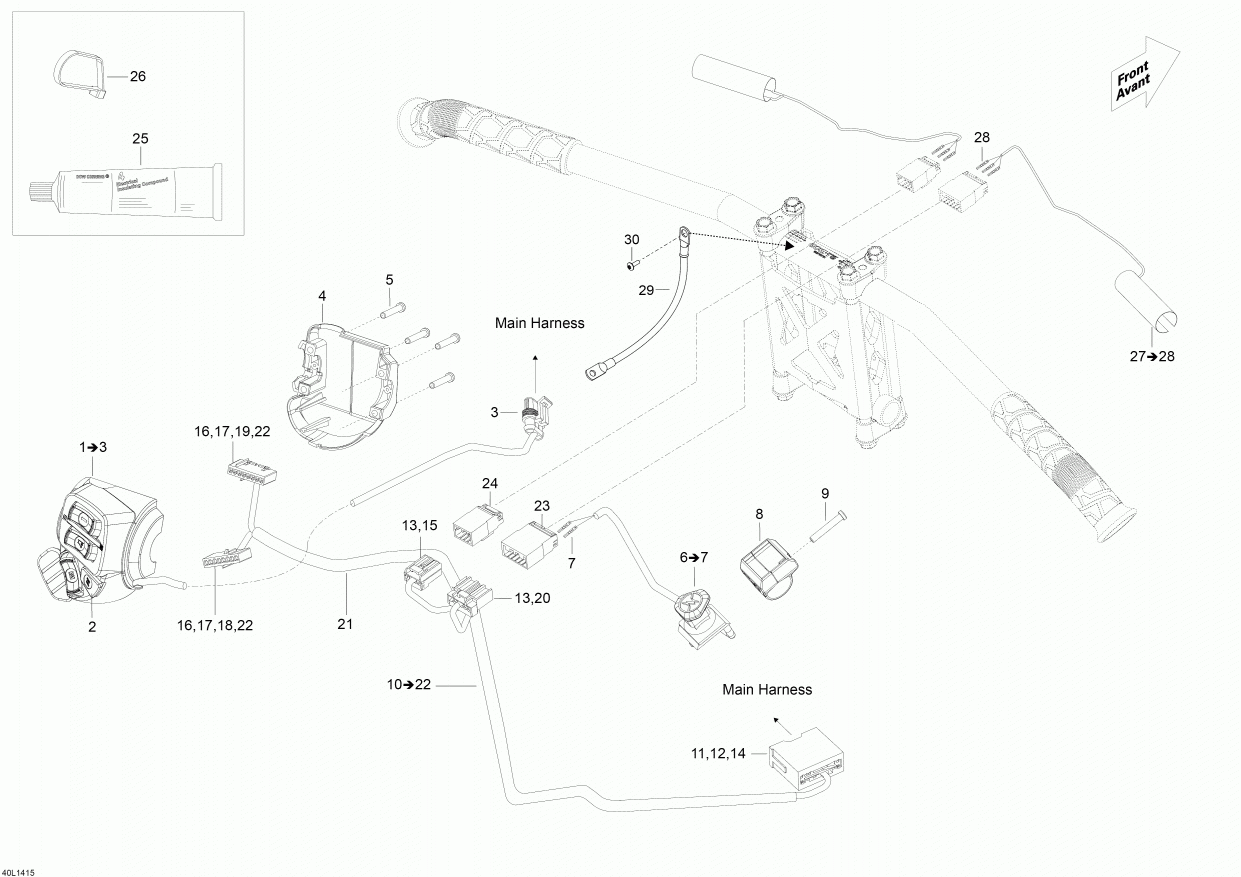

Жгут проводов

Lynx (Bombardier) Xtrim 600 ACE
Lynx (Bombardier)
#oem кодцена
1
515177508
Switch Housing Lh. Includes 1 To 3
2
515176088
Start/rer Button
3
409209600
Female Housing
4
515175926
Switch Housing Plate
5
250000263
Винт
6
515177362
Kill Switch. Includes 6 To 7
7
515175232
фишки
8
515176825
Kill Switch Support
9
250000263
Винт
10
515176867
Steering Wiring Harness. Includes 10 To 22
11
515175232
фишки
12
515175273
фишки
13
515175231
Датчик Температуры
14
515175351
Male Housing
15
515175543
Female Terminal Housing, 8 Circuits
16
515175808
Датчик Температуры
17
515175809
Femelle Lock, 8 Circuits
18
515175807
Female Terminal Housing, 8 Circuits
19
515175810
Female Terminal Housing, 8 Circuits
20
515175819
Female Housing
21
515175830
Low Temperature Tubing 1/2”
22
515175941
Датчик Температуры
23
515175817
Male Terminal Housing, 8 Circuits
24
515175662
Male Terminal Housing, 6 Circuits
25
619600021
Loctite 8104 (dielectric Grease), 75 Ml
26
414115200
Tie Rap 180 Mm
27
506152467
Heating Element. Includes 27 To 28
28
515175232
фишки
29
515177668
Ground Cable
30
250000690
Forming Screw M5 X 10
