Рама Запчасти для снегоходов Lynx (Bombardier) Adventure GT 600 E-TEC (2013)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

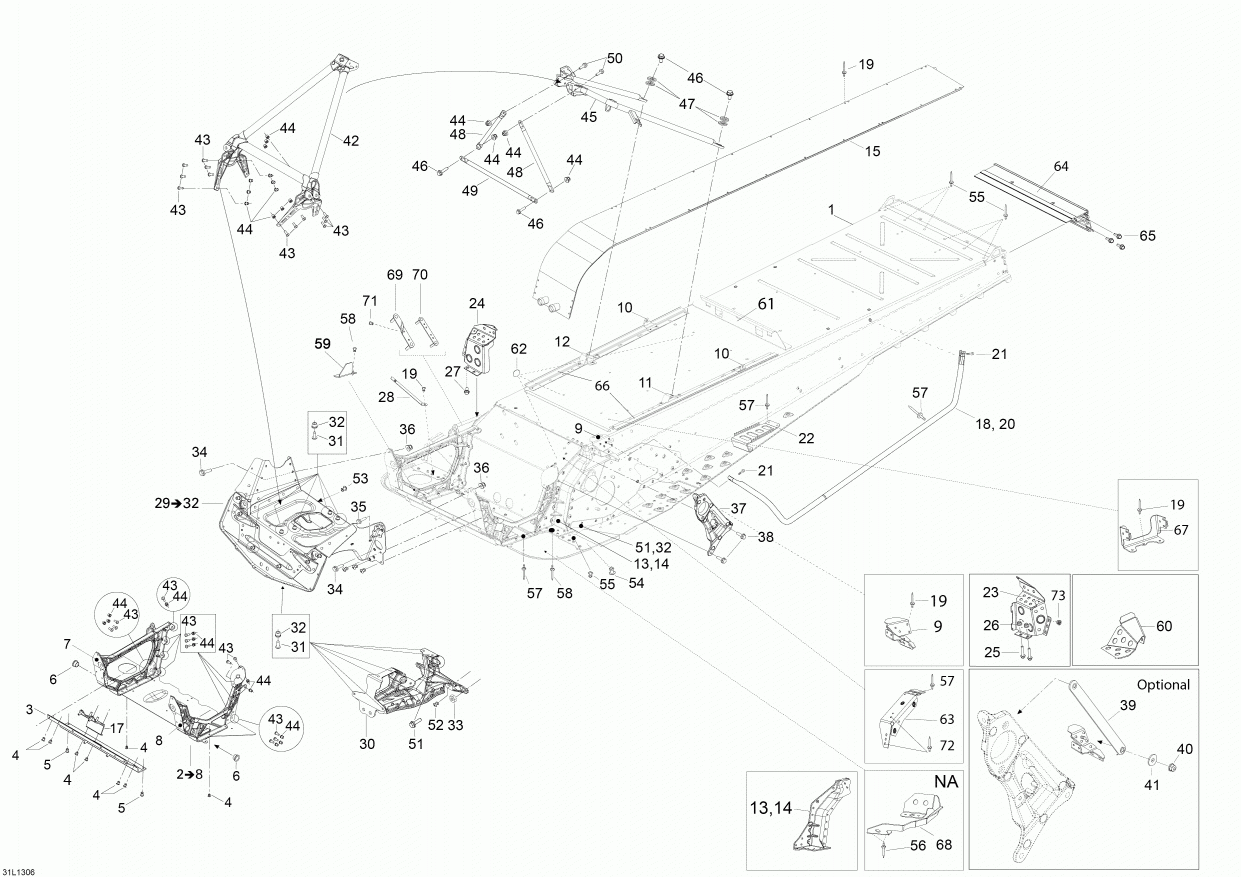

Рама

Lynx (Bombardier) Adventure GT 600 E-TEC

Рама

#

oem код

название

цена

1

Frame Xu E-tec Pps Black

Frame Xu E-tec Pps Black

2

Module E

Module E

3

Член Фронта

Член Фронта

4

Rivet Hucklok

Rivet Hucklok

5

Rivet Hucklok

Rivet Hucklok

6

Подушка

Подушка

7

R.h. Member

R.h. Member

8

L.h. Member

L.h. Member

9

Крепежный Кронштейн

Крепежный Кронштейн

10

Короб Сиденья Кронштейн

Короб Сиденья Кронштейн

11

Bracket L.h.

Bracket L.h.

12

Bracket R.h.

Bracket R.h.

13

Frame Corner L.h.

Frame Corner L.h.

14

Frame Corner R.h.

Frame Corner R.h.

15

Радиатор

Радиатор

17

Mag Support

Mag Support

18

Footrest Support Tube L.h.

Footrest Support Tube L.h.

19

Rivet Avex 10mm.

Rivet Avex 10mm.

20

Footrest Support Tube R.h.

Footrest Support Tube R.h.

21

Screw-hex. Flange M6 X 20

Screw-hex. Flange M6 X 20

22

Footrest Black

Footrest Black

23

Toe Hook L.h. Black

Toe Hook L.h. Black

24

Toe Hook R.h. Black

Toe Hook R.h. Black

25

Винт М6 Х 20

Винт М6 Х 20

26

Elastic Flanged Nut M6

Elastic Flanged Nut M6

27

Torx-screw M6 X 20

Torx-screw M6 X 20

28

Brachet Spring

Brachet Spring

29

Cross Member

Cross Member

30

Суппорт

Суппорт

31

Hex. Flanged Screw M6 X 20 (8.8)

Hex. Flanged Screw M6 X 20 (8.8)

32

Гайка М6

Гайка М6

33

Гайка М8

Гайка М8

34

Hex. Screw Forming M6 X 20

Hex. Screw Forming M6 X 20

35

Hex. Flange Screw

Hex. Flange Screw

36

Flanged Elastic Nut

Flanged Elastic Nut

37

Pulley Support

Pulley Support

38

Hex. Flanged Screw M8 X 25

Hex. Flanged Screw M8 X 25

39

Draft Bar (optional)

Draft Bar (optional)

40

Elastic Flanged Nut M6

Elastic Flanged Nut M6

41

Шайба

Шайба

42

Member-front

Member-front

43

Hex. Flanged Screw M6 X 20 (10.9)

Hex. Flanged Screw M6 X 20 (10.9)

44

Elastic Flanged Nut M6

Elastic Flanged Nut M6

45

Support Tube Upper

Support Tube Upper

46

Винт М6 Х 20

Винт М6 Х 20

47

Lock Washer D6

Lock Washer D6

48

Суппорт

Суппорт

49

Upper Colum

Upper Colum

50

Винт M6 X 25

Винт M6 X 25

51

Hex. Flanged Screw M6 X 12

Hex. Flanged Screw M6 X 12

52

Hemlock Rivet

Hemlock Rivet

53

Dart 5-6

Dart 5-6

54

Dart

Dart

55

Rivet Avex

Rivet Avex

56

Поп Заклепки 3/16

Поп Заклепки 3/16

57

Rivet Avex 12 Mm.

Rivet Avex 12 Mm.

58

Rivet Huckloc 4.8 Mm.

Rivet Huckloc 4.8 Mm.

59

Muffler Support Plate

Muffler Support Plate

60

Brake Hose Cover

Brake Hose Cover

61

Battery Support Plate

Battery Support Plate

62

Adhesive Patch

Adhesive Patch

63

Clinch Nut Plate

Clinch Nut Plate

64

Rear Profile Threaded

Rear Profile Threaded

65

Screw M8x25 10.9

Screw M8x25 10.9

66

Крепежный Рельс

Крепежный Рельс

67

Fuse Box Support

Fuse Box Support

68

Pulley Cover Plate (na Models)

Pulley Cover Plate (na Models)

69

Gearbox Counter Plate Front

Gearbox Counter Plate Front

70

Gearbox Counter Plate Rear

Gearbox Counter Plate Rear

71

Поп Заклепки 3/16

Поп Заклепки 3/16

72

Rivet Hemlock 19.7 Mm.

Rivet Hemlock 19.7 Mm.

73

Clinch Nut Hexsert

Clinch Nut Hexsert
