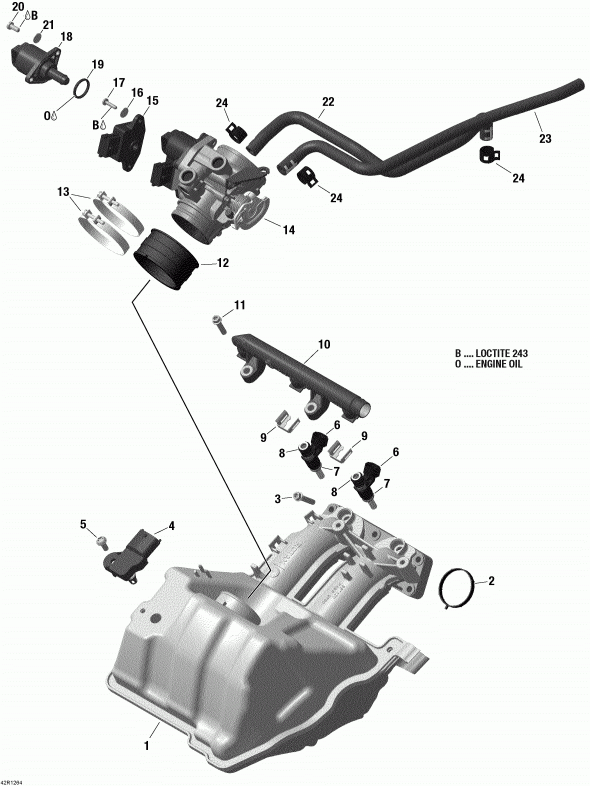

Коллектор воздухозаборника и корпус дросселя

Lynx (Bombardier) 49 Ranger 600 ACE
Lynx (Bombardier)
#oem кодцена
1-2
420867020
Airbox Assy.
2
420431660
Прокладка
3
420440647
Hex./torx-flange Screw M6x30-sw8/t30. Tightening Torque 11nm +/- 12%
4
707000995
Pressure-/temp. Sensor. Bosch 0261230030
5
420641583
Torx-pt-screw 6x16-t25 A2-70. Tightening Torque 6nm +/- 12%
6-8
420874838
Injection Valve Deka Vii Type 0
7
420431890
O-ring 8,54x3,1 Viton B70. Included In Gasket Kit
8
420631220
O-ring 7,52x3,51. Included In Gasket Kit
9
420853030
Инжектор
10
420874960
Fuel Rail
11
420440234
Hex./torx-flange Screw M6x25-sw8/t30. Tightening Torque 11nm +/- 12%
12
420460495
Разъем
13
420251480
Hose Clamp 61. Tightening Torque 0,7nm +/- 12%
14-21
420296879
Throttle Body Assy.
15
XXX
Throttle Position Sensor. Bourns 0384-003
16
XXX
Шайба
17
XXX
Oval Head Screw
18
420665940
Idle Air Control Valve
19
420631780
O-ring 18,72x2,62. Included In Gasket Kit
20
420440911
Binding Head Screw M5x16. Tightening Torque 4,5nm +/- 12%
21
420845710
Snapring
22
420460910
Шланг
23
420460915
Шланг
24
420853511
Spring Type Clamp 14
B
293800060
Loctite 243, 10 Ml
O
293600112
Моторное Масло
