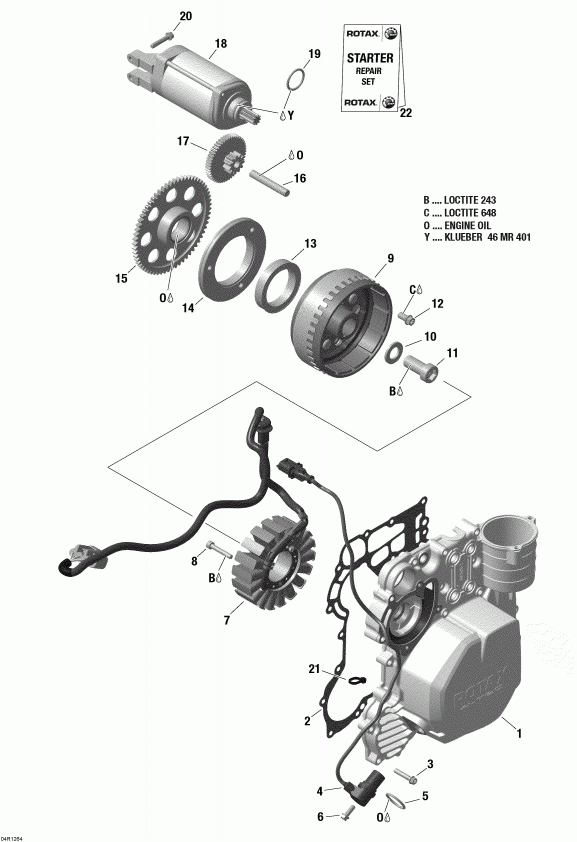

Магнето и электрическийй стартер

Lynx (Bombardier) 49 Ranger 600 ACE
Lynx (Bombardier)
#oem кодцена
1
420911052
Крышка Зажигания
2
420431640
Прокладка
3
420440647
Hex./torx-flange Screw M6x30-sw8/t30. Tightening Torque 11nm +/- 12%
4-5
420966570
Crankshaft Position Sensor
5
420431580
O-ring 17,17x1,78 Fpm 70. Included In Gasket Kit
6
420440162
Hex./torx-flange Screw M6x16-sw8/t30. Tightening Torque 11nm +/- 12%
7
420685635
Stator Assy. 14v 650w
8
420241956
Allen Screw M6x40 Iso 4762-8.8 Mc. Tightening Torque 11nm +/- 12%
9
420686190
Mag. Flywheel With Trigger Wheel Assy
10
420627270
Shim A17 Din 125
11
420241549
Allen Screw M16x35 Din 6912 Mk. Tightening Torque 150nm +/- 7%
12
420440854
Hex./torx-flange Screw M8x16. Tightening Torque 30nm +/- 12%
13
420659113
Sprag Clutch 51,710x68,377x13
14
420659261
Спрага Корпус Муфты
15
420434237
Free Wheel Gear 64 T Assy.
16
420229475
Needle Pin Iso 8734-10x65-b-st
17
420634741
Starter Double Gear 11/49 T.
18-19
420892423
Electric Starter Assy.
19
420250140
O-ring Din 3771-24,4x3,1-n Nbr70. Included In Gasket Kit
20
420440647
Hex./torx-flange Screw M6x30-sw8/t30. Tightening Torque 11nm +/- 12%
21
420866714
Tie Rap 142x3,2 Mm
22
420881140
Ремонтный комплект (электрический стартер)
B
293800060
Loctite 243 Green
C
413711400
Loctite 648 Blue
O
293600112
Моторное Масло
Y
420297616
Grease Klueber 46 Mr 401
