Рама Запчасти для снегоходов Lynx (Bombardier) 49 Ranger 600 ACE (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

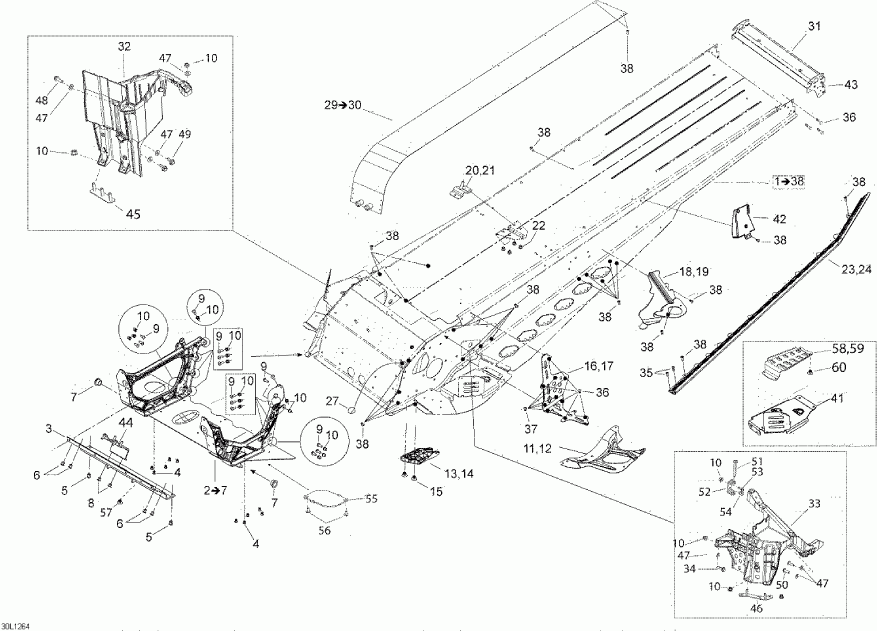

Рама

Lynx (Bombardier) 49 Ranger 600 ACE

Рама

#

oem код

название

цена

1

Frame Assy. Includes 1 To 39

Frame Assy. Includes 1 To 39

2

E Module

E Module

3

Член Фронта

Член Фронта

4

Avex Rivet

Avex Rivet

5

Hemlock Rivet

Hemlock Rivet

6

Hemlock Rivet, 6.5 Mm

Hemlock Rivet, 6.5 Mm

7

Подушка

Подушка

8

Hemlock Rivet, 6.5 Mm

Hemlock Rivet, 6.5 Mm

9

Flanged Screw M6 X 20

Flanged Screw M6 X 20

10

Flanged Elastic Nut M6

Flanged Elastic Nut M6

11

Rh Reinforcement

Rh Reinforcement

12

Lh Reinforcement

Lh Reinforcement

13

Резус Дефлектор

Резус Дефлектор

14

Дефлектор

Дефлектор

15

Заклепки 3/16"

Заклепки 3/16"

16

Rh Front Support

Rh Front Support

17

Lh Front Support

Lh Front Support

18

Rh Rear Support

Rh Rear Support

19

Lh Rear Support

Lh Rear Support

20

Rh Rear Base

Rh Rear Base

21

Lh Rear Base

Lh Rear Base

22

Заклёпка

Заклёпка

23

Lh Roller

Lh Roller

24

Rh Roller

Rh Roller

27

Adhesive Patch

Adhesive Patch

29

Rear Radiator. Includes 29 To 30

Rear Radiator. Includes 29 To 30

30

Avex Rivet

Avex Rivet

31

Rear Cap

Rear Cap

32

Поддержка Батареи

Поддержка Батареи

33

Caliber

Caliber

34

Screw Hex Cap

Screw Hex Cap

35

Заклепки 3/16"

Заклепки 3/16"

36

Screw Forming M8 X 25

Screw Forming M8 X 25

37

Avex Rivet

Avex Rivet

38

Avex Rivet

Avex Rivet

39

Заклёпка

Заклёпка

41

Footrest L.h.

Footrest L.h.

42

Seat Support R.h

Seat Support R.h

42

Seat Support L.h

Seat Support L.h

43

Rear Side Plate

Rear Side Plate

44

Engine Support

Engine Support

45

Attach R.h

Attach R.h

46

Attach L.h

Attach L.h

47

Washer A6

Washer A6

48

Screw Forming M6 X 20

Screw Forming M6 X 20

49

Screw Hex Flange M6

Screw Hex Flange M6

50

Torx Truss M6x18

Torx Truss M6x18

51

Torx Truss M6x55

Torx Truss M6x55

52

Attach

Attach

53

Винт

Винт

54

Заклёпка

Заклёпка

55

Oil Plate

Oil Plate

56

Torx Truss

Torx Truss

57

Dart

Dart

58

Foot Rest R.h

Foot Rest R.h

59

Foot Rest L.h

Foot Rest L.h

60

Rivet Pop 3/16

Rivet Pop 3/16
