Рама Запчасти для снегоходов Lynx (Bombardier) 69 YETI 600 ACE (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

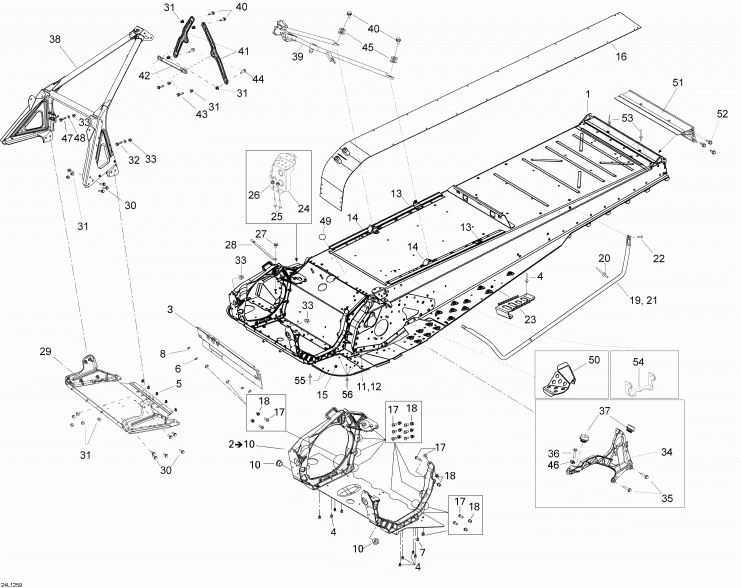

Рама

Lynx (Bombardier) 69 YETI 600 ACE

Рама

#

oem код

название

цена

1

Рама

Рама

2

E Module

E Module

3

Engine Support

Engine Support

4

Avex Rivet

Avex Rivet

5

Rivet Hucklok 6,4 Mm.

Rivet Hucklok 6,4 Mm.

6

Hemlock Rivet, 6.5 Mm

Hemlock Rivet, 6.5 Mm

7

Hemlock Rivet 6.5 Mm

Hemlock Rivet 6.5 Mm

8

Rivet Hucklok 4,8 Mm Hklp-r6-5gat

Rivet Hucklok 4,8 Mm Hklp-r6-5gat

9

Avex Rivet

Avex Rivet

10

Leg Cushion

Leg Cushion

11

Drive Axle Cover L.h.

Drive Axle Cover L.h.

12

Drive Axle Cover R.h.

Drive Axle Cover R.h.

13

Короб Сиденья Кронштейн

Короб Сиденья Кронштейн

14

Support Tube Bracket Lh

Support Tube Bracket Lh

14

Support Tube Bracket Rh

Support Tube Bracket Rh

15

Frame Corner Lh

Frame Corner Lh

15

Frame Corner Rh

Frame Corner Rh

16

Radiator Tunnel

Radiator Tunnel

17

Винт М6 Х 20

Винт М6 Х 20

18

Гайка М6

Гайка М6

19

Footboard Support Tube, Lh

Footboard Support Tube, Lh

20

Rivet Hucklok 4,8 Mm Hklp-r6-5gat

Rivet Hucklok 4,8 Mm Hklp-r6-5gat

21

Footboard Support Tube, Rh

Footboard Support Tube, Rh

22

Hex. Flanged Screw Din.6921

Hex. Flanged Screw Din.6921

23

Footrest

Footrest

24

Toe Hook Lh

Toe Hook Lh

24

Toe Hook Rh

Toe Hook Rh

25

Hex. Flanged Screw Din.6921

Hex. Flanged Screw Din.6921

26

Гайка М6

Гайка М6

27

Винт М6 Х 20

Винт М6 Х 20

28

Кронштейн

Кронштейн

29

S Module

S Module

30

Винт М6 Х 20

Винт М6 Х 20

31

Гайка М6

Гайка М6

32

Hex Flanged Screw M6 X 25

Hex Flanged Screw M6 X 25

33

Гайка М6

Гайка М6

34

Brace Ass.

Brace Ass.

35

Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip

36

Hex. Flanged Screw M8 X 40, Scotch Grip

Hex. Flanged Screw M8 X 40, Scotch Grip

37

Резиновое Крепление

Резиновое Крепление

38

Member-front Upper Assy

Member-front Upper Assy

39

Upper Support Tube Welded

Upper Support Tube Welded

40

Hex. Flanged Screw Din.6921

Hex. Flanged Screw Din.6921

41

Upper Column Support

Upper Column Support

42

Center Column Support

Center Column Support

43

Clinch Stud M6 X 20

Clinch Stud M6 X 20

44

Hex. Flange Screw Din.6921

Hex. Flange Screw Din.6921

45

Lock Washer D6 (nord-lock)

Lock Washer D6 (nord-lock)

46

Шайба М8

Шайба М8

47

Болт М6х30

Болт М6х30

48

Шайба

Шайба

49

Adhesive Patch

Adhesive Patch

50

Brake Hose Cover

Brake Hose Cover

51

Rear Profile 600 Mm.

Rear Profile 600 Mm.

52

Hex Forming Screw Din.7500d

Hex Forming Screw Din.7500d

53

Hemlock Rivet, 6.4 Mm

Hemlock Rivet, 6.4 Mm

54

Fusebox Support

Fusebox Support

55

Заклепки 3/16"

Заклепки 3/16"

56

Avex Rivet

Avex Rivet
