Рама Запчасти для снегоходов Lynx (Bombardier) 59 YETI 550 (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

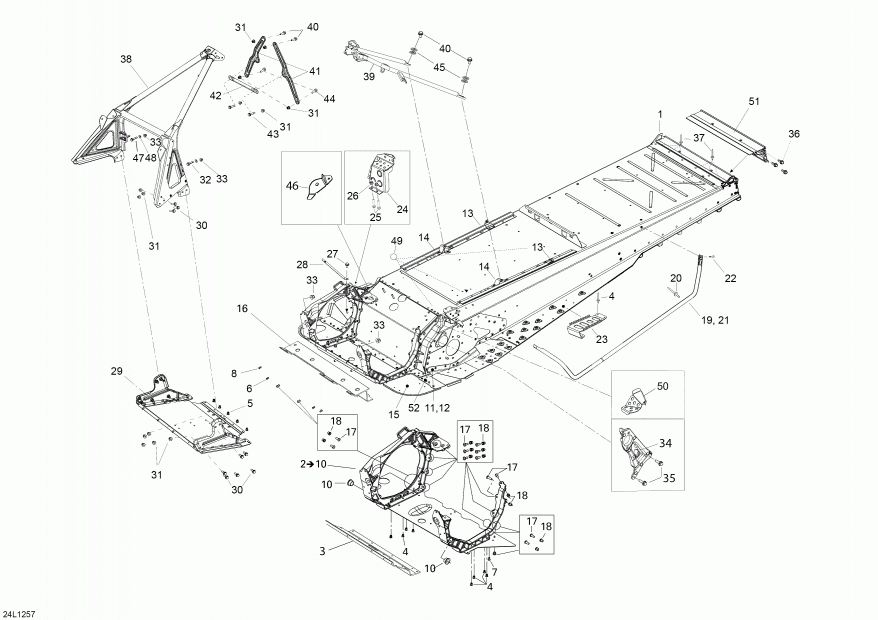

Рама

Lynx (Bombardier) 59 YETI 550

Рама

#

oem код

название

цена

1

Frame Xu 552 Fc Pps

Frame Xu 552 Fc Pps

2

Module E

Module E

3

Член Фронта

Член Фронта

4

Avex Rivet

Avex Rivet

5

Rivet Hucklok 6,4 Mm.

Rivet Hucklok 6,4 Mm.

6

Hemlock Rivet, 6.5 Mm

Hemlock Rivet, 6.5 Mm

7

Hemlock Rivet 6.5 Mm

Hemlock Rivet 6.5 Mm

8

Rivet Hucklok 4,8 Mm Hklp-r6-5gat

Rivet Hucklok 4,8 Mm Hklp-r6-5gat

9

Avex Rivet

Avex Rivet

10

Leg Cushion

Leg Cushion

11

Drive Axle Cover L.h.

Drive Axle Cover L.h.

12

Drive Axle Cover R.h.

Drive Axle Cover R.h.

13

Короб Сиденья Кронштейн

Короб Сиденья Кронштейн

14

Support Tube Bracket Lh

Support Tube Bracket Lh

14

Support Tube Bracket Rh

Support Tube Bracket Rh

15

Frame Corner Lh

Frame Corner Lh

15

Frame Corner Rh

Frame Corner Rh

16

Engine Support Machined

Engine Support Machined

17

Винт М6 Х 20

Винт М6 Х 20

18

Гайка М6

Гайка М6

19

Footboard Support Tube, Lh

Footboard Support Tube, Lh

20

Rivet Hucklok 4,8 Mm Hklp-r6-5gat

Rivet Hucklok 4,8 Mm Hklp-r6-5gat

21

Footboard Support Tube, Rh

Footboard Support Tube, Rh

22

Hex. Flanged Screw Din.6921

Hex. Flanged Screw Din.6921

23

Footrest

Footrest

24

Toe Hook Lh

Toe Hook Lh

24

Toe Hook Rh

Toe Hook Rh

25

Hex. Flanged Screw Din.6921

Hex. Flanged Screw Din.6921

26

Гайка М6

Гайка М6

27

Винт М6 Х 20

Винт М6 Х 20

28

Кронштейн

Кронштейн

29

S Module

S Module

30

Винт М6 Х 20

Винт М6 Х 20

31

Гайка М6

Гайка М6

32

Hex Flanged Screw M6 X 25

Hex Flanged Screw M6 X 25

33

Гайка М6

Гайка М6

34

Pulley Support Machined

Pulley Support Machined

35

Flanged Hex. Screw M8 X 30, Scotch Grip

Flanged Hex. Screw M8 X 30, Scotch Grip

36

Hex Forming Screw Din.7500d

Hex Forming Screw Din.7500d

37

Hemlock Rivet, 6.4 Mm

Hemlock Rivet, 6.4 Mm

38

Front Member Assy

Front Member Assy

39

Upper Support Tube Welded

Upper Support Tube Welded

40

Hex. Flanged Screw Din.6921

Hex. Flanged Screw Din.6921

41

Upper Column Support

Upper Column Support

42

Center Column Support

Center Column Support

43

Clinch Stud M6 X 20

Clinch Stud M6 X 20

44

Hex. Flange Screw Din.6921

Hex. Flange Screw Din.6921

45

Lock Washer D6 (nord-lock)

Lock Washer D6 (nord-lock)

46

Rh.support

Rh.support

47

Болт М6х30

Болт М6х30

48

Шайба

Шайба

49

Adhesive Patch

Adhesive Patch

50

Brake Hose Cover

Brake Hose Cover

51

Rear Profile

Rear Profile

52

Dart

Dart
