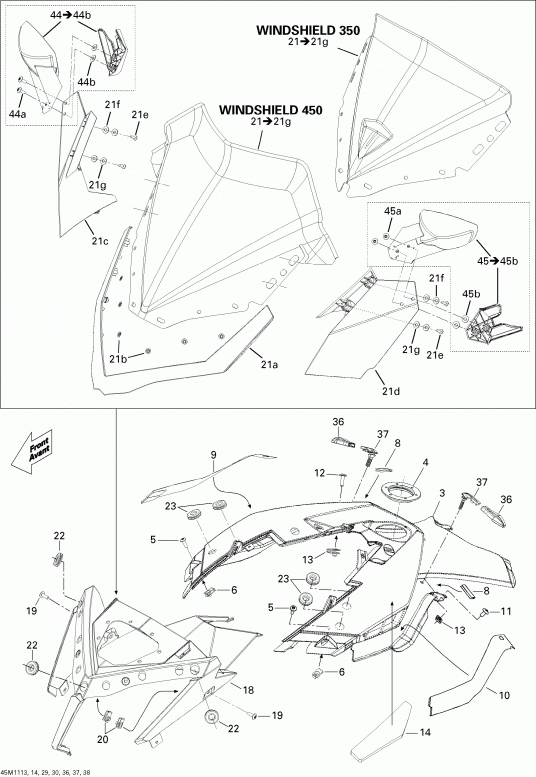

Стекло ветровое и консоль

Lynx (Bombardier) Adventure LX 600 ACE
Lynx (Bombardier)
#oem кодцена
3
517304559
Консоль
4
517304518
заглушка
5
250000128
Винт М6 Х 20
6
250100113
Panel Nut, M6 X 1.0
8
517304105
Console Decal
9
517304103
Rh Decal
10
517304104
Lh Decal
11
250000129
Torx Screw M6 X 16
12
250000128
Винт М6 Х 20
13
250100113
Panel Nut, M6 X 1.0
14
N/A
Not Available For This Vehicle
18
517304575
Gauge Support
19
250000128
Винт М6 Х 20
20
250100113
Panel Nut, M6 X 1.0
21
517304766
Windshield 450
21a
517303607
Windshield Support
21b
732610072
Гайка
21c
517303604
Rh Air Deflector
21d
517303605
Lh Air Deflector
21e
250000146
Truss Head Torx Screw K50 X 16
21f
250200025
Washer M5
21g
250200024
Rubber Washer 5 Mm
22
N/A
Not Available For This Vehicle
23
N/A
Not Available For This Vehicle
36
860200239
Black Latch Kit
37
517303981
Panel Latch
44
N/A
Not Available For This Vehicle
44a
N/A
Not Available For This Vehicle
44b
N/A
Not Available For This Vehicle
45
N/A
Not Available For This Vehicle
45a
N/A
Not Available For This Vehicle
45b
N/A
Not Available For This Vehicle
