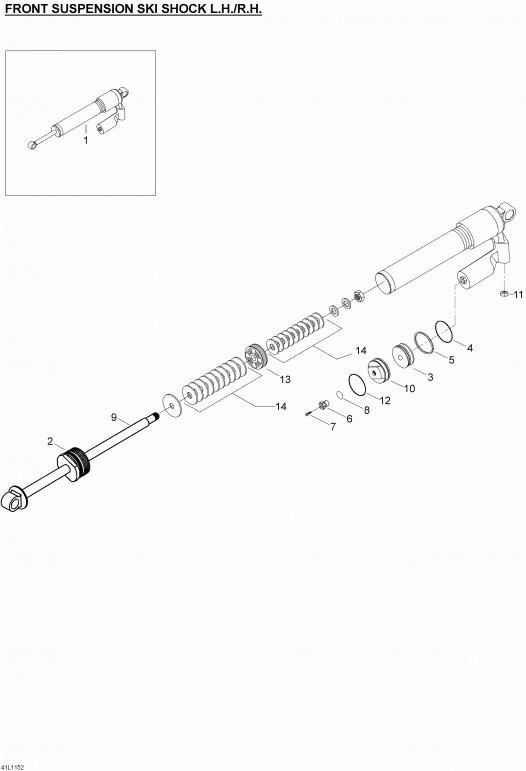

07- Take Apart Shock ski

Lynx (Bombardier) Rave RS 600

07- Take Apart Shock ski

#

oem код

название

цена

14

Shim 40/46 Mm. 40 X 0,305

Shim 40/46 Mm. 40 X 0,305

1

Shock, R.h. Ta 40 Hlc

Shock, R.h. Ta 40 Hlc

1

Shock, L.h. Ta 40 Hlc

Shock, L.h. Ta 40 Hlc

2

Seal Carrier Assy

Seal Carrier Assy

3

Floating Piston

Floating Piston

4

Уплотнительное кольцо

Уплотнительное кольцо

5

Кольцо поршневое

Кольцо поршневое

6

Air Valve Ring

Air Valve Ring

7

Винт

Винт

8

Уплотнительное кольцо

Уплотнительное кольцо

9

Rod Ass'y

Rod Ass'y

10

Seal Carrier Assy

Seal Carrier Assy

11

Valve Ass'y

Valve Ass'y

12

Уплотнительное кольцо

Уплотнительное кольцо

13

Piston 40 Mm. 0 Mm. Bleed

Piston 40 Mm. 0 Mm. Bleed

13

Piston 36mm., 0 X 0,3 Slits

Piston 36mm., 0 X 0,3 Slits

14

Shim 40/46 Mm. 17 X 0,114

Shim 40/46 Mm. 17 X 0,114

14

Shim 40/46 Mm. 17 X 0,152

Shim 40/46 Mm. 17 X 0,152

14

Shim 40/46 Mm. 17 X 0,203

Shim 40/46 Mm. 17 X 0,203

14

Shim 40/46 Mm. 18 X 0,114

Shim 40/46 Mm. 18 X 0,114

14

Shim 40/46 Mm. 18 X 0,152

Shim 40/46 Mm. 18 X 0,152

14

Shim 40/46 Mm. 22 X 0,114

Shim 40/46 Mm. 22 X 0,114

14

Shim 40/46 Mm. 22 X 0,152

Shim 40/46 Mm. 22 X 0,152

14

Shim 40/46 Mm. 22 X 0,203

Shim 40/46 Mm. 22 X 0,203

14

Shim 40/46 Mm. 20 X 0,254

Shim 40/46 Mm. 20 X 0,254

14

Shim 40/46 Mm. 20 X 0,305

Shim 40/46 Mm. 20 X 0,305

14

Shim 40/46 Mm. 20 X 0,114

Shim 40/46 Mm. 20 X 0,114

14

Shim 40/46 Mm. 20 X 0,152

Shim 40/46 Mm. 20 X 0,152

14

Shim 40/46 Mm. 20 X 0,203

Shim 40/46 Mm. 20 X 0,203

14

Shim 40/46 Mm. 22 X 0,254

Shim 40/46 Mm. 22 X 0,254

14

Shim 40/46 Mm. 22 X 0,305

Shim 40/46 Mm. 22 X 0,305

14

Shim 40/46 Mm. 24 X 0,114

Shim 40/46 Mm. 24 X 0,114

14

Shim 40/46 Mm. 24 X 0,152

Shim 40/46 Mm. 24 X 0,152

14

Shim 40/46 Mm. 24 X 0,203

Shim 40/46 Mm. 24 X 0,203

14

Shim 40/46 Mm. 24 X 0,254

Shim 40/46 Mm. 24 X 0,254

14

Shim 40/46 Mm. 24 X 0,305

Shim 40/46 Mm. 24 X 0,305

14

Shim 40/46 Mm. 26 X 0,114

Shim 40/46 Mm. 26 X 0,114

14

Shim 40/46 Mm. 26 X 0,152

Shim 40/46 Mm. 26 X 0,152

14

Shim 40/46 Mm. 26 X 0,203

Shim 40/46 Mm. 26 X 0,203

14

Shim 40/46 Mm. 26 X 0,254

Shim 40/46 Mm. 26 X 0,254

14

Shim 40/46 Mm. 26 X 0,305

Shim 40/46 Mm. 26 X 0,305

14

Shim 40/46 Mm. 28 X 0,114

Shim 40/46 Mm. 28 X 0,114

14

Shim 40/46 Mm. 28 X 0,152

Shim 40/46 Mm. 28 X 0,152

14

Shim 40/46 Mm. 28 X 0,203

Shim 40/46 Mm. 28 X 0,203

14

Shim 40/46 Mm. 28 X 0,254

Shim 40/46 Mm. 28 X 0,254

14

Shim 40/46 Mm. 28 X 0,305

Shim 40/46 Mm. 28 X 0,305

14

Shim 40/46 Mm. 30 X 0,114

Shim 40/46 Mm. 30 X 0,114

14

Shim 40/46 Mm. 30 X 0,152

Shim 40/46 Mm. 30 X 0,152

14

Shim 40/46 Mm. 30 X 0,203

Shim 40/46 Mm. 30 X 0,203

14

Shim 40/46 Mm. 30 X 0,254

Shim 40/46 Mm. 30 X 0,254

14

Shim 40/46 Mm. 30 X 0,305

Shim 40/46 Mm. 30 X 0,305

14

Shim 40/46 Mm. 32 X 0,114

Shim 40/46 Mm. 32 X 0,114

14

Shim 40/46 Mm. 32 X 0,152

Shim 40/46 Mm. 32 X 0,152

14

Shim 40/46 Mm. 32 X 0,203

Shim 40/46 Mm. 32 X 0,203

14

Shim 40/46 Mm. 32 X 0,254

Shim 40/46 Mm. 32 X 0,254

14

Shim 40/46 Mm. 32 X 0,305

Shim 40/46 Mm. 32 X 0,305

14

Shim 40/46 Mm. 34 X 0,114

Shim 40/46 Mm. 34 X 0,114

14

Shim 40/46 Mm. 34 X 0,152

Shim 40/46 Mm. 34 X 0,152

14

Shim 40/46 Mm. 34 X 0,203

Shim 40/46 Mm. 34 X 0,203

14

Shim 40/46 Mm. 34 X 0,254

Shim 40/46 Mm. 34 X 0,254

14

Shim 40/46 Mm. 34 X 0,305

Shim 40/46 Mm. 34 X 0,305

14

Shim 40/46 Mm. 36 X 0,114

Shim 40/46 Mm. 36 X 0,114

14

Shim 40/46 Mm. 36 X 0,152

Shim 40/46 Mm. 36 X 0,152

14

Shim 40/46 Mm. 36 X 0,203

Shim 40/46 Mm. 36 X 0,203

14

Shim 40/46 Mm. 36 X 0,254

Shim 40/46 Mm. 36 X 0,254

14

Shim 40/46 Mm. 36 X 0,305

Shim 40/46 Mm. 36 X 0,305

14

Shim 40/46 Mm. 38 X 0,152

Shim 40/46 Mm. 38 X 0,152

14

Shim 40/46 Mm. 38 X 0,203

Shim 40/46 Mm. 38 X 0,203

14

Shim 40/46 Mm. 38 X 0,254

Shim 40/46 Mm. 38 X 0,254

14

Shim 40/46 Mm. 38 X 0,305

Shim 40/46 Mm. 38 X 0,305

14

Shim 40/46 Mm. 40 X 0,152

Shim 40/46 Mm. 40 X 0,152

14

Shim 40/46 Mm. 40 X 0,203

Shim 40/46 Mm. 40 X 0,203

14

Shim 40/46 Mm. 40 X 0,254

Shim 40/46 Mm. 40 X 0,254
