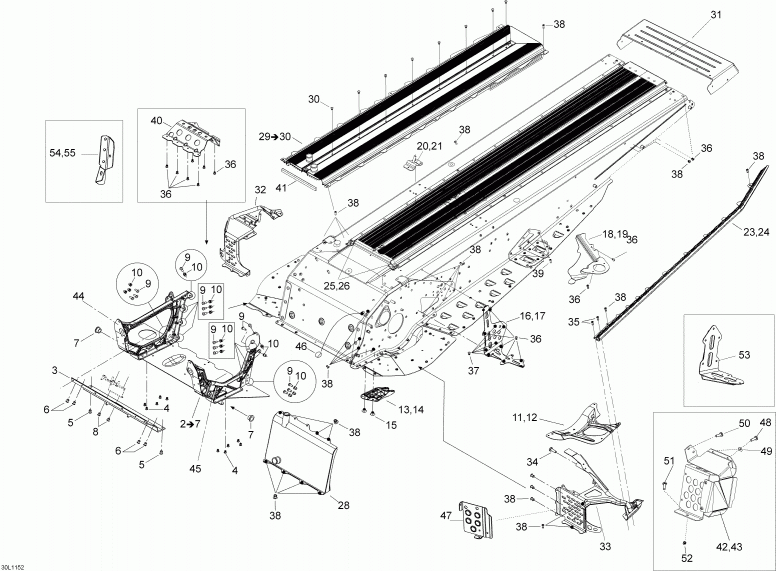

Рама

Lynx (Bombardier) Rave RS 600

Рама

#

oem код

название

цена

1

Frame Assy. Includes 1 To 39

Frame Assy. Includes 1 To 39

2

E Module

E Module

3

Член Фронта

Член Фронта

4

Avex Rivet

Avex Rivet

5

Hemlock Rivet 6.5 Mm

Hemlock Rivet 6.5 Mm

6

Hemlock Rivet, 6.5 Mm

Hemlock Rivet, 6.5 Mm

7

Leg Cushion

Leg Cushion

8

Hemlock Rivet, 6.4 Mm

Hemlock Rivet, 6.4 Mm

9

Винт М6 Х 20

Винт М6 Х 20

10

Гайка М6

Гайка М6

11

Rh Reinforcement

Rh Reinforcement

12

Lh Reinforcement

Lh Reinforcement

13

Резус Дефлектор

Резус Дефлектор

14

Дефлектор

Дефлектор

15

Заклепки 3/16"

Заклепки 3/16"

16

Rh Front Support

Rh Front Support

17

Lh Front Support

Lh Front Support

18

Rh Rear Support

Rh Rear Support

19

Lh Rear Support

Lh Rear Support

20

Rh Rear Base

Rh Rear Base

21

Lh Rear Base

Lh Rear Base

22

Rivet Hucklok

Rivet Hucklok

23

Rh Roller

Rh Roller

24

Lh Roller

Lh Roller

25

Rh Seal

Rh Seal

26

Lh Seal

Lh Seal

28

Front Radiator

Front Radiator

29

Rear Radiator Ass'y

Rear Radiator Ass'y

30

Avex Rivet

Avex Rivet

31

Rear Cap

Rear Cap

32

Rh Stirrup

Rh Stirrup

33

Lh Stirrup

Lh Stirrup

34

Винт М8 Х 25

Винт М8 Х 25

35

Заклепки 3/16"

Заклепки 3/16"

36

Avex Rivet

Avex Rivet

37

Avex Rivet

Avex Rivet

38

Avex Rivet

Avex Rivet

39

Заклёпка

Заклёпка

40

Link Cross

Link Cross

41

Neoprene Seal

Neoprene Seal

42

Footrest L.h.

Footrest L.h.

43

Footrest R.h.

Footrest R.h.

44

Члены правые

Члены правые

45

Член Левый

Член Левый

46

Adhesive Patch

Adhesive Patch

47

Protection Plate

Protection Plate

48

Socket Head Screw M6 X 16

Socket Head Screw M6 X 16

49

Flat Washer 6 Mm

Flat Washer 6 Mm

50

Винт М6 Х 20

Винт М6 Х 20

51

Socket Screw M6 X 12

Socket Screw M6 X 12

52

Hex. Flanged Nut M6

Hex. Flanged Nut M6

53

L - Support For Footboard

L - Support For Footboard

54

Reinf. Bracket For Upper A-arm, Left

Reinf. Bracket For Upper A-arm, Left

55

Reinf. Bracket For Upper A-arm, Right

Reinf. Bracket For Upper A-arm, Right
