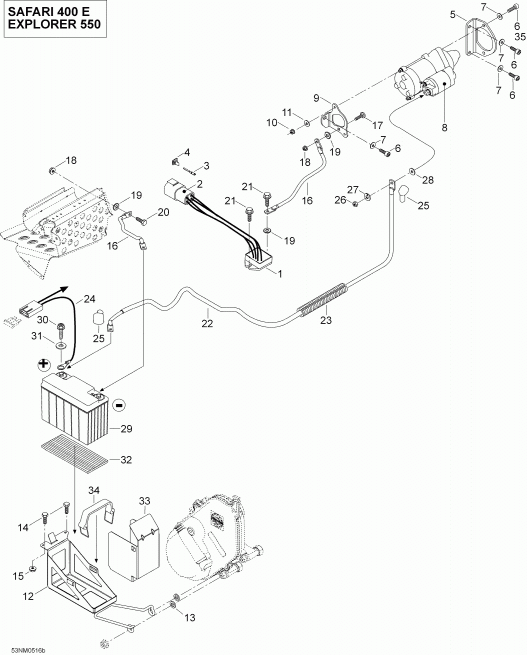

10- Electric Starter, 550

Lynx (Bombardier) Explorer 550
Lynx (Bombardier)
#oem кодцена
1
515175656
Voltage Regulator. Includes 1 To 4
2
278001477
MГўle Terminal Housing, 4 Circuits
3
515175568
Датчик Температуры
4
278001478
Male Lock, 4 Circuits
5
515175652
Starter Bracket. Explorer 550
6
40305
Socket Head Screw M8 X 20. Explorer 550
7
20014
Spring Washer A8
8
515175141
Starter
9
515175660
Starter Bracket, Mag-side
10
33009
Nut Elastic M5. Explorer 550
11
391301700
Шайба
12
515175848
Battery Support (black)
13
20005
Washer A10,5
14
40247
Screw M5 X 16
15
33062
Elastic Flanged Nut M5
16
515175483
Ground Wire
17
40866
Locking Screw M6 X 20
18
33200
Elastic Flanged Nut M6, Nylock
19
20017
Serrated Lock Washer M6
20
40029
Винт М6 Х 16
21
40322
Self Tapping Screw M6 X 16
22
515175634
Battery Wire
23
28012
Трубопровод
24
5446894
Wire, Fuse-battery
25
570151000
Защитный колпачек
26
33006
Nut M8
27
20014
Spring Washer A8
28
20004
Washer A8,4
29
515175642
Battery (18 Amperes). Includes 29 To 31
30
207161644
Hex Screw M6 X 16
31
391302100
Шайба
32
5347314
Rubber Blanket
33
515175643
Дефлектор
34
515175475
Battery Strap
35
40289
Socket Head Screw M8 X 25. Explorer 550
