01- Crankshaft Assy Запчасти для снегоходов Lynx (Bombardier) Explorer 550 (2004)

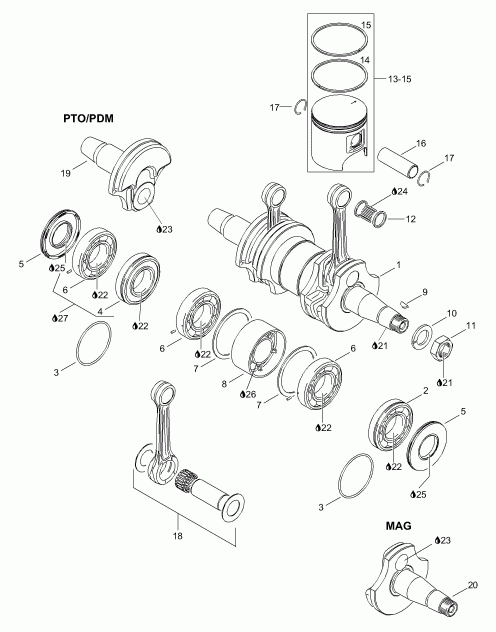

01- Crankshaft Assy

Lynx (Bombardier) Explorer 550

oem код

название

цена

420889062

Crankshaft Assy. Includes Items 1 Thru 8

420832571

Bearing 6207

420250165

Уплотнительное кольцо

Bearing 6207

Сальник

B.bearing 6207

Стопорный Диск

Цилиндр

Шпонка

Гровер

Гайка

Needle Cage

Piston Assy, 75.86mm. Includes Items 13 Thru 15

420889051

Piston Assy, 76.11mm. Includes Items 13 Thru 15

420889052

Piston Assy, 76.36mm. Includes Items 13 Thru 15

Piston Ring 76.00 Mm

Piston Ring 76.25 Mm

Piston Ring 76.50 Mm

Piston Ring 76.00 Mm

Piston Ring 76.25 Mm

Piston Ring 76.50 Mm

Палец поршневой

СТОПОРНОЕ КОЛЬЦО

Шатун в сборе

Crankhalf P.t.o Side

Crankhalf Mag Side

Loctite 243, 10 Ml

Loctite 767, 8 Oz

Loctite 648, 10 Ml

Injection Oil (12 X 1 L)

420899271

Смазка

XXX

Oil Api Sj Sae 10w40. Parts Marked With <> Are Not Available As Spare Parts

293550021

Isoflex Grease, 50 G
