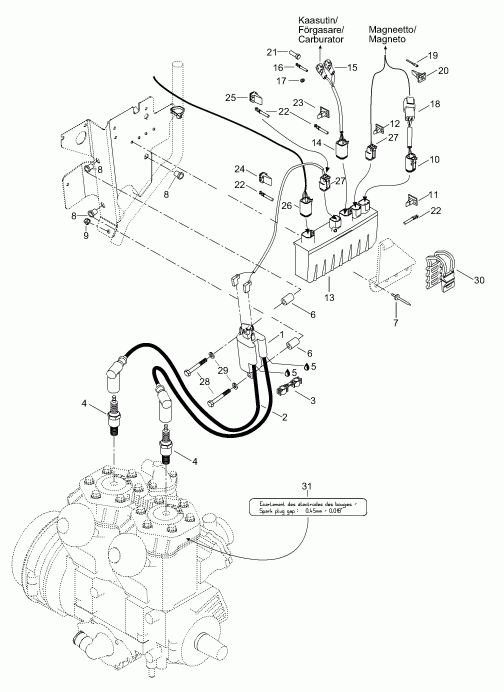

01- DPM

Lynx (Bombardier) Racing
Lynx (Bombardier)
#oem кодцена
1
XXX
Ignition Coil Assy. Parts Marked With <> Are Not Available As Spare Parts Includes Items 1 Thru 3
1
512059564
Катушка зажигания
2
512059499
Spark Plug Wire, 515mm
2
512059500
Spark Plug Wire, 595mm
3
410914600
Plastic Clip
4
512059533
Spark Plug Br9ecs
5
293550004
Dielectric Grease, 150g
6
544419
Гильца
7
36083
Заклёпка
8
415107300
Вставка
9
33200
Elastic Flanged Nut M6
10
278001739
Female Terminal Housin
11
278000738
Female Lock
12
42615
Male Lock
13
605350686
Calibration Module
14
515175673
Female Terminal Housin
15
409209200
Female Terminal Housin
16
409012100
Датчик Температуры
17
409012300
Уплотнение
18
710000045
Male Terminal Housing
19
409014800
фишки
20
710000046
Male Lock
21
293000052
Уплотнительная Крышка
22
278000632
Датчик Температуры
23
515175678
Female Lock
24
515175705
Female Lock
25
409207100
Female Lock
26
278000736
Female Terminal Housin
27
409207300
Female Terminal Housin
28
40084
Screw M6 X 45
29
20052
Пружинная шайба
30
570069700
Защёлка
31
516000986
Spark Plug Decal
