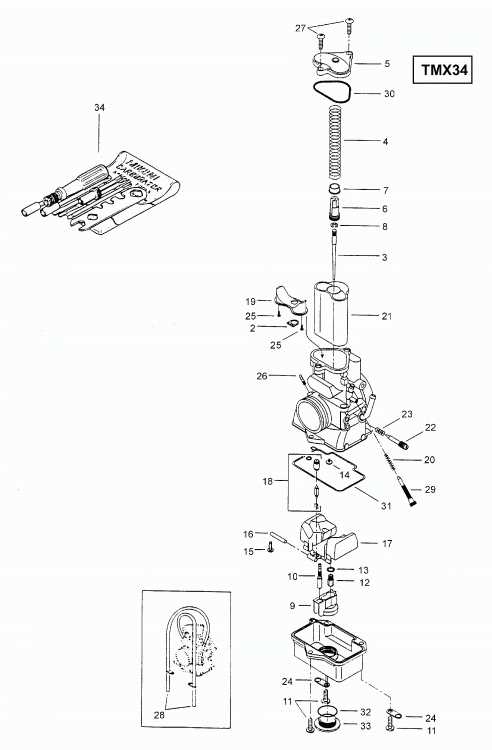

Карбюратор

Lynx (Bombardier) Racing
Lynx (Bombardier)
#oem кодцена
1
19080
Carburetor Tmx34 Mag. Includes Items 1 Thru 33
1
19081
Carburetor Tmx34 Pto. Includes Items 1 Thru 33
2
404161865
Прокладка
3
404161871
Jet Needle J8-6fiy-58-3
4
404161864
Пружина
5
404161857
Крышка
6
404161856
Guide Holder
7
404161863
Прокладка
8
404152200
Е-Кольцо
9
404161855
Держатель
10
404161870
Pilot Jet 25
11
404161848
Винт
12
404101400
Main Jet 330
13
404161862
Шайба
14
404161861
Винт
15
404138600
Винт
16
404161860
Float Arm Pin
17
404161859
Поплавок
18
404161868
Needle Valve 1,5v
19
404161854
Ventury
20
404161849
Пружина
21
404161867
Piston Valve 4.0
22
404161866
Регулировщик
23
404132400
Пружина
24
404103000
Tube Retainer Plate
25
404161852
Винт
26
404153400
Ниппель
27
404138700
Винт
28
404161851
Vent Tube
29
404161850
Регулировщик
30
XXX
Ring. Parts Marked With <> Are Not Available As Spare Parts
31
XXX
Ring. Parts Marked With <> Are Not Available As Spare Parts
32
XXX
Ring. Parts Marked With <> Are Not Available As Spare Parts
33
XXX
Plug Screw. Parts Marked With <> Are Not Available As Spare Parts
34
404112000
Комплект инструментов
