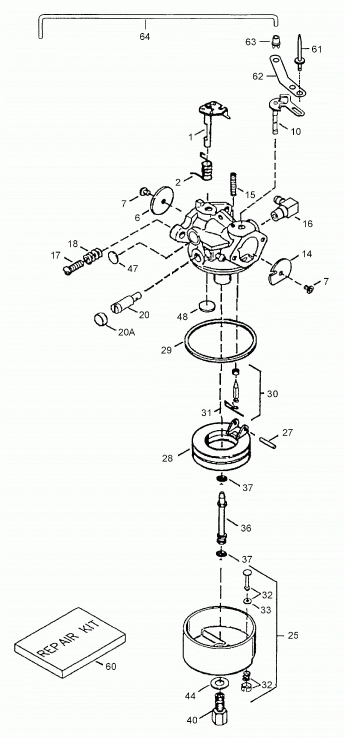

Карбюратор

Lynx (Bombardier) Rave 150
Lynx (Bombardier)
#oem кодцена
1
T640084A
Carburetor (incl. 184 Of Engine Parts List). Includes Items 1 Thru 44
1
T631615
Вал дросселя
2
T631767
Throttle Return Spring
6
T640070
Throttle Shutter
7
T650506
Shutter Screw
10
T632108
Choke Shaft
14
T631890
Choke Shutter
15
T630735
Choke Spring
16
T631807
Fuel Fitting
17
T651025
Idle Speed Screw
18
T630766
Tension Spring
20
T640018
Idle Restrictor Screw
20A
T640053
Tension Spring
25
T631951
Float Bowl Ass'y.
27
T631024
Float Shaft
28
T632019
Поплавок
29
T631028
Float Bowl "0" Ring
30
T631021
Needle Valve
31
T631022
Пружинный Зажим
32
T27136A
Bowl Drain Assemb.
33
T27554
Drain Plunger Gasket
36
T632745
Main Nozzle Tube
37
T632547
Уплотнительное кольцо
40
T640166
Bowl Nut, High Speed
44
T27110A
Bowl Nut Washer
47
T630748
Welch Plug
48
T631027
Welch Plug
60
T632760
Repair Kit. Includes Parts; (7, 27, 29, 30, 33, 37, 47, 48)
61
36005
Заклёпка
62
5441825
Пластина
63
28415
Ниппель
64
5441828
Вал
