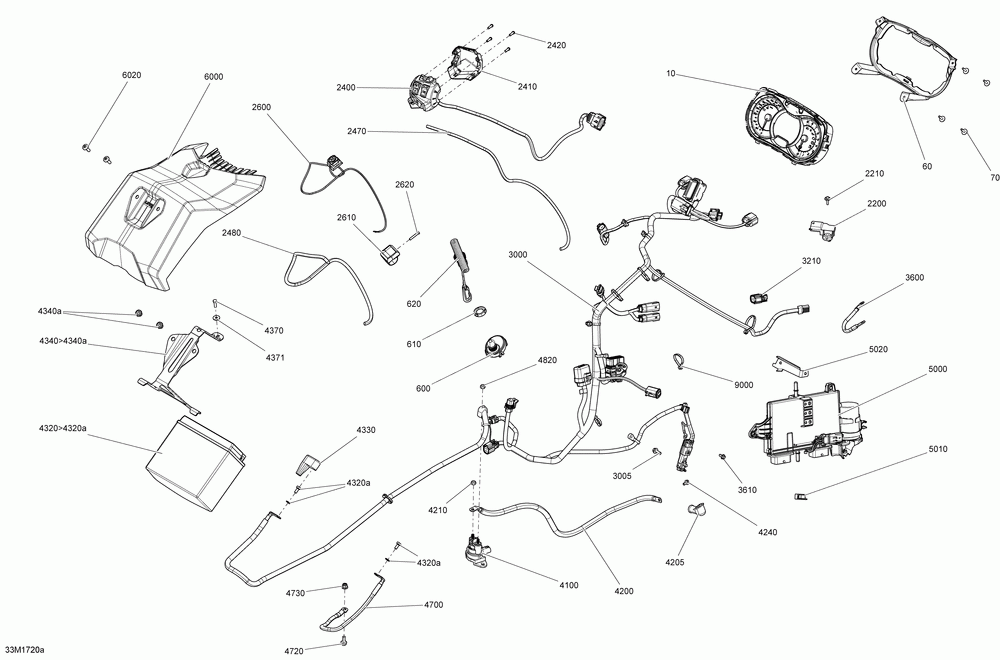

Электрическая система - все модели

Ski-Doo (Bombardier) MXZ - 2-STROKE - 850 E-TEC
Ski-Doo (Bombardier)
#oem кодцена
10
515177860
Indicator
60
515177866
Кожух
70
250000725
Винт М4 Х 16
600
515178225
Switch-dess
610
278002963
Safety Nut
620
515178286
Шпонка
2200
707000995
Pressure And Temperature Sensor
2210
250000725
Винт М4 Х 16
2400
515178196
Кожух
2410
515177147
Housing Plate
2420
250000671
Screw Type 8-18 Hi-lo Torx T-20
2470
415130141
Braided Sleeve
2480
415130141
Braided Sleeve
2610
515177310
Kill Switch Support
2620
250000263
Torx Screw #8-18 (10.000 Per Pack)
3000
515178205
Wiring Harness
3005
210261650
Screw-forming Hex.hd.fl.bzn
3210
515178177
Housing, 4 Circuits
3600
515178248
Wire-ground
3610
207551044
Flanged Hex. Screw M5 X 10 (2.000 Per Pack)
4100
278003012
Реле стартера
4200
515178110
Positive Wire
4205
710000495
Protector Cap
4210
232561414
Гайка-стоп
4240
207551044
Flanged Hex. Screw M5 X 10 (2.000 Per Pack)
4320>4320a
415129898
Lead Battery 18 Amperes Includes 4320 To 4320a
4320a
250000282
Battery Bolt Kit (2.000 Per Pack)
4330
710001817
Protector Cap
4340>4340a
515177870
Strip-battery Includes 4340 To 4340a
4340a
293450275
Вставка
4370
207151644
Hex. Screw M5 X 16 (10.000 Per Pack)
4371
391301600
Шайба
4700
515178155
Ground Wire
4720
207661644
Hex. Flanged Screw M6 X 16 (25.000 Per Pack)
4730
233261416
Elastic Flanged Nut M6
4820
232561414
Гайка-стоп
5000
512061093
Module Allum *module-ignit
5010
515178231
Stopper-rubber
5020
515178159
Суппорт
6000
511001053
Battery Cover
6020
250000722
Torx Screw M6 X 20
9000
293750002
Tie-rap 142 Mm (10.000 Per Pack)
9000
414115200
Tie-rap 180 Mm (50.000 Per Pack)
9000
293750008
Tie-rap 368 Mm (10.000 Per Pack)
9000
293750001
Tie Rap 94mm (50.000 Per Pack)
