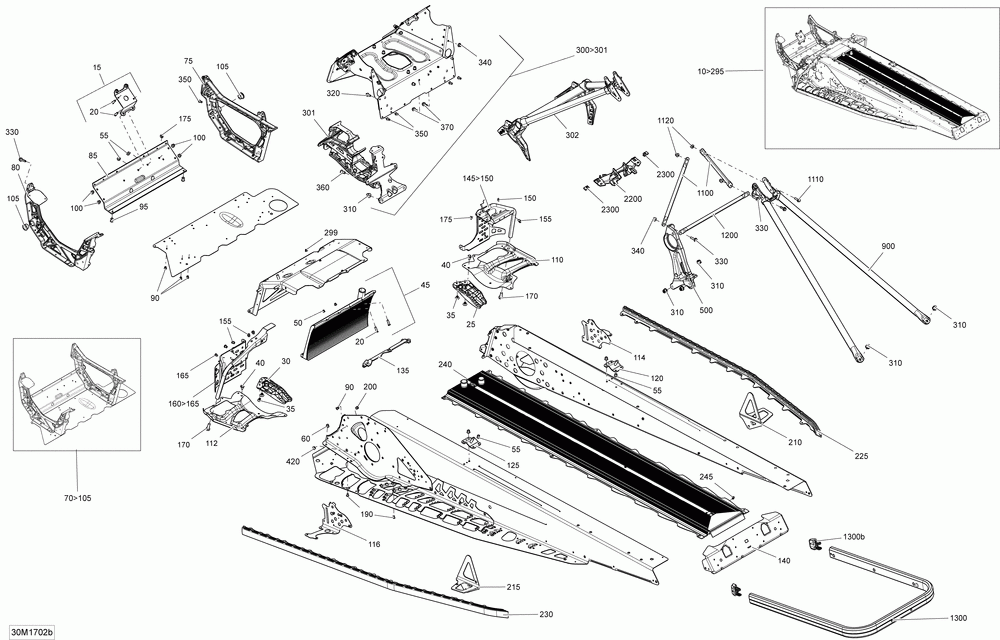

Рама-137

Ski-Doo (Bombardier) RENEGADE - 2-STROKE - 600 CARB_600HO E-TEC_800R E-TEC
Ski-Doo (Bombardier)
#oem кодцена
15
518325943
Mag Engine Support Includes 15 To 20
20
250300027
Clinch Stud M6 X 20
25
518325782
Резус Дефлектор
30
518325783
Дефлектор
35
293150104
Поп Заклепки 3/16"
40
207561244
Винт М6 Х 12
45
518326485
Front Radiator
50
293150203
Avibulb *avibulb
55
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
60
293150174
Hemlock Rivet, 6.4 Mm (10.000 Per Pack)
75
518326795
Члены правые
80
518326796
Член Левый
85
518326198
Член Фронта
90
293150144
Stavex Rivet (20.000 Per Pack)
95
293150120
Hemlock Rivet 6.5 Mm (4.000 Per Pack)
100
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
105
505073317
Втулка
110
518326937
Renfort Dr *reinforcement
112
518326938
Renfort Ga *reinforcement
116
518326617
Lh Front Retainer Package Xrs
118
518326616
Rh Front Retainer Package Xrs
120
518325973
Rh Rear Base
125
518325974
Lh Rear Base
130
250300038
Clinch Stud
135
518326656
Уплотнение
140
518327105
Rear Cap
145>150
518328940
Etrier Droit *rh.stirup Includes 145 To 150
150
390909200
Группа Заклепки
155
293450268
Вставка
160>165
518328528
Etrier Ga *lh.stirup Includes 160 To 165
165
390909200
Группа Заклепки
170
250000752
Screw-pan Hd.torx M8x25 Scotch Grip
175
293730042
Full Moon Dart 5 Mm
190
390909100
Группа Заклепки
200
293150146
Henrob Rivet (10.000 Per Pack)
215
518326954
Rh Suspension Bracket
220
518326955
Lh Suspension Bracket
225
518327200
Rh Roller Package Xrs
225
518327093
Rh Roller Except Package Xrs
230
518328429
Rouleau *roller-lh Package Enduro
230
518327201
Lh Roller Package Xrs
230
518327094
Lh Roller Package Adrenaline, X
240
518327588
Rear Radiator 137 Includes 240 To 245
245
293150144
Stavex Rivet (20.000 Per Pack)
296
293150144
Stavex Rivet Except Package Xrs (20.000 Per Pack)
298
293150174
Hemlock Rivet, 6.4 Mm Except Package Xrs (10.000 Per Pack)
300>301
518328320
Module S *cross Member Except Package Xrs Includes 300 To 301
300>301
518328322
Module S *cross Member Package Xrs Includes 300 To 301
301
518327487
Front Suspension Support
302
518327565
Член Фронта
310
233281414
Гайка М8
320
250000822
Screw-forming Hex.hd.fl. M6 X 16
330
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
340
233261414
Резиновая гайка фиксатор М6
350
293150191
Monobolt Rivet, 4.8 Mm (4.000 Per Pack)
360
293150182
Monobolt Rivet 6.4 (2.000 Per Pack)
370
207661644
Hex. Flanged Screw M6 X 16 (25.000 Per Pack)
420
293730053
Black Dart 5 Mm
420
293730047
Black Dart 8 Mm
420
293730060
Black Dart 10 Mm
500
518327133
Driven Pulley Support
500a
518327460
Pulley Support
900
518326559
Rear Member
1100
518325114
Upper Column Support
1110
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
1120
233261416
Elastic Flanged Nut M6
1200
518325115
Center Column Support
1300
518325481
Black Rear Bumper Except Package Xrs
1300
518326979
Black Rear Bumper Fr 137 Package Xrs
1340
520000840
Черной Крышкой
1700>1700a
518326973
Front Protector Includes 1700 To 1700a
1700a
517124300
Шайба (отпускается по 10 шт)
1710
293150108
Pop Rivet 3/16# (25.000 Per Pack)
2000
860200802
Prot. Chassis *tunnel Prot. With Ice Ripper
2100
860200802
Prot. Chassis *tunnel Prot. With Ice Ripper
2200
518327145
Sub A Support
2300
250000079
Гайка М5 Х 0,8
6000
250000779
Torx-truss M/s N.patch M6 X 18
6001
224061201
Flat Washer (10.000 Per Pack)
