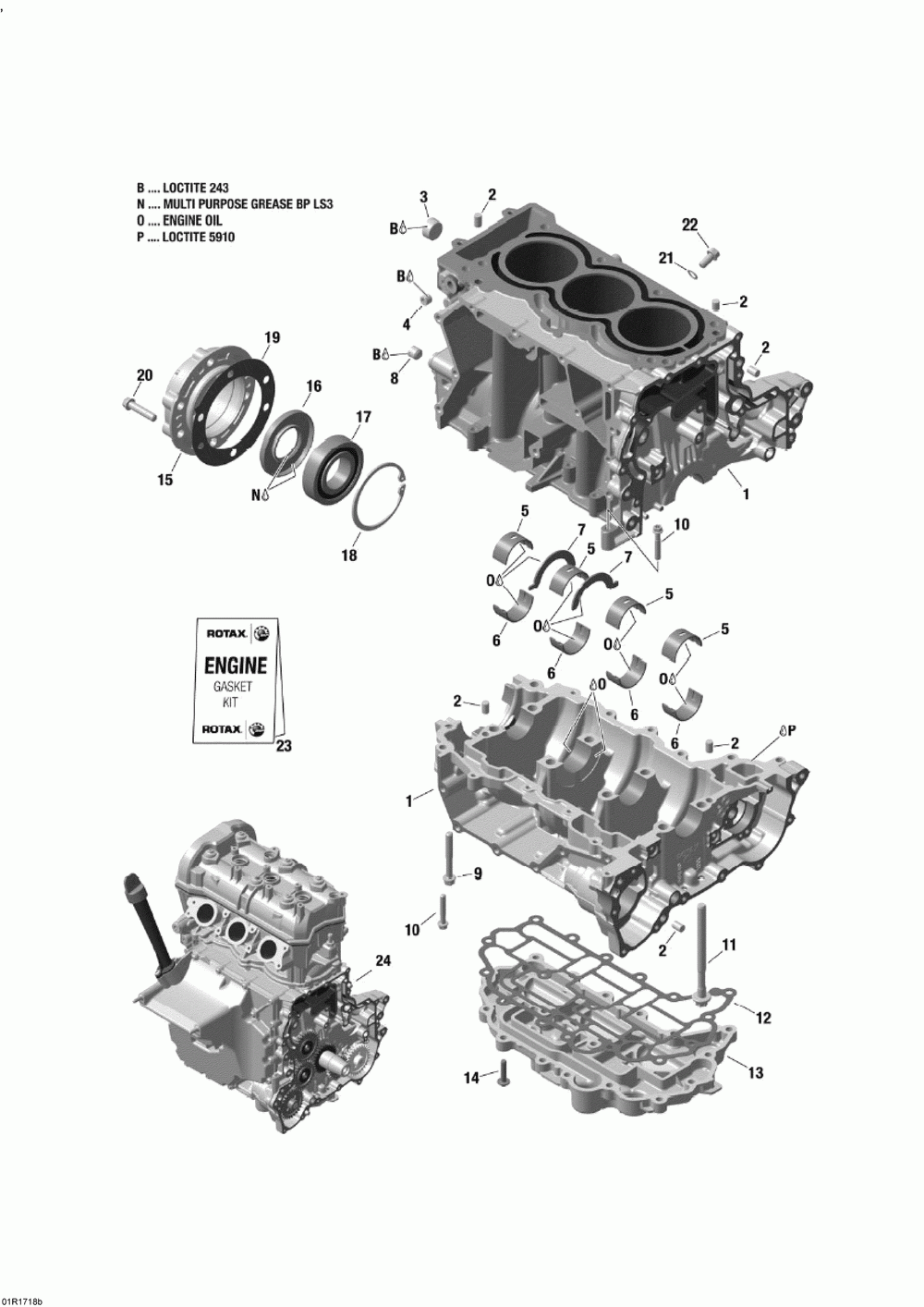

Блок двигателя

Ski-Doo (Bombardier) SKANDIC - 4-STROKE - WT-SWT
Ski-Doo (Bombardier)
#oem кодцена
1
420893138
Crankcase Ass Y Includes 1 To 6
2
420632010
Контактный Центр 8 Х 12
3
420641317
Plug Screw M20 X 1.5
4
420641323
Plug Screw M10 X 1
5
420933180
Подушка
6
420933185
Подушка
7
420933140
Полу кольцо стопор
8
420840500
Threaded Pin
9
420641213
Flanged Torx Screw M8 X 55
10
420440274
Flanged Torx Screw M6 X 35
11
420940945
Flanged Torx Screw M9 X 113
12
420431820
Joint Etanche *gasket Included In Gasket Kit
13
420911500
Масляный Поддон
14
420841549
Flanged Torx Screw M6 X 25
15
420911845
Pto Cover Includes 15 To 18
16
420431402
Oil Seal Included In Gasket Kit
17
420832232
Подшипник
18
420845790
Стопорное кольцо
19
420450080
Joint Etanche *gasket Included In Gasket Kit
20
420641188
Flanged Torx Screw M8 X 35
21
420950141
Sealing Ring Included In Gasket Kit (5.000 Per Pack)
22
420440852
Flanged Torx Screw M8 X 16
23
420686235
Прокладки Двигателя Комплект
