Drive shaft / final gear Запчасти для квадроциклов ATV Kawasaki Brute Force 300 (KVF300-CHF) (2017)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

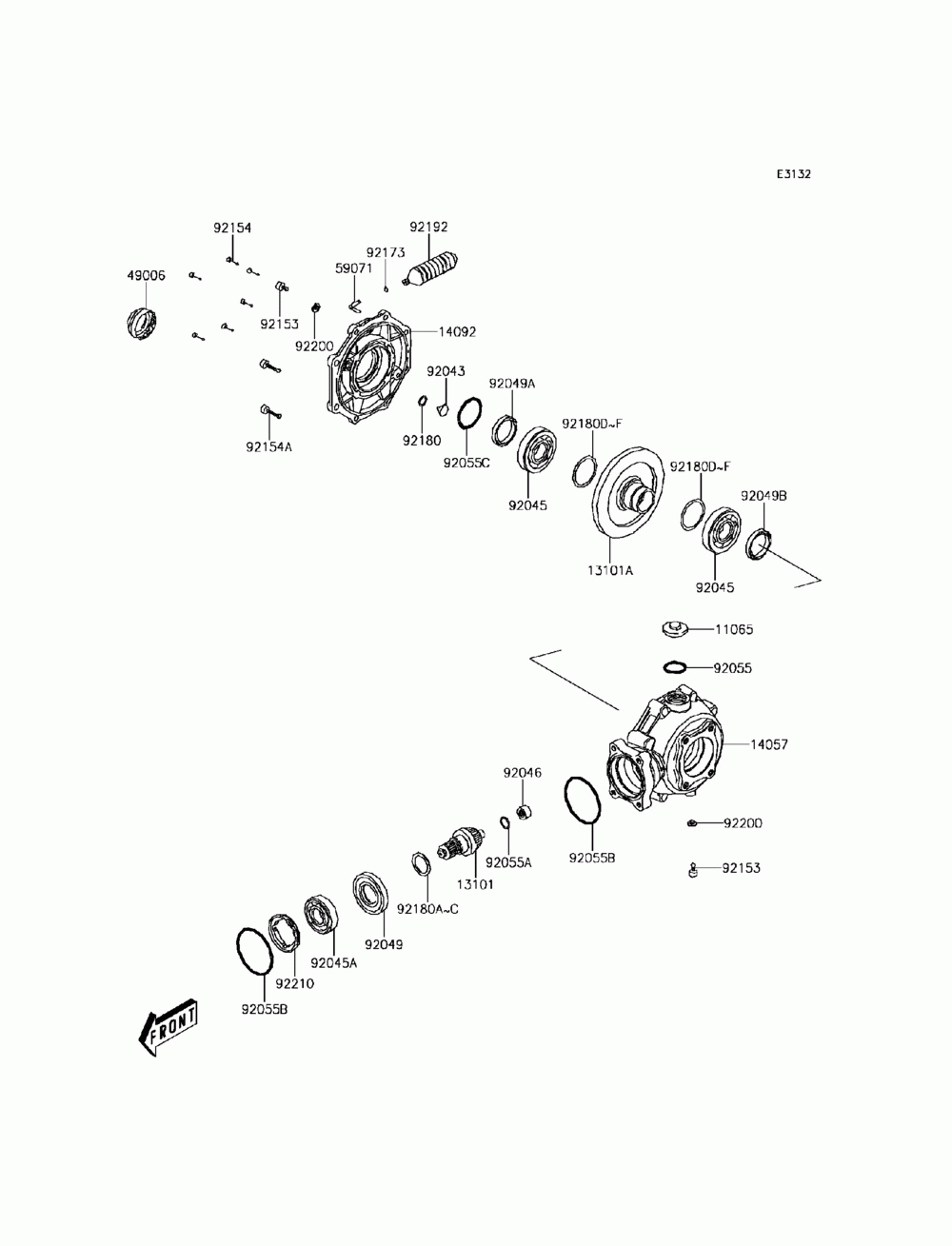

Drive shaft / final gear

Kawasaki Brute Force 300 (KVF300-CHF)

Drive shaft / final gear

#

oem код

название

цена

11065

Крышка

Крышка

14057

Case-comp-gear

Case-comp-gear

49006

Boot, Rr, Axle Shaft

Boot, Rr, Axle Shaft

59071

Сапун

Сапун

92043

Pin, Ring Gear, Stopper

Pin, Ring Gear, Stopper

92045

Bearing-ball, 6009

Bearing-ball, 6009

92045A

Bearing-ball, 6206

Bearing-ball, 6206

92046

Bearing-needle, 14x20x

Bearing-needle, 14x20x

92049

Seal-oil, 35x70x10

Seal-oil, 35x70x10

92049A

Seal-oil, 42x51x7

Seal-oil, 42x51x7

92049B

Seal-oil, 42x62x7

Seal-oil, 42x62x7

92055

Ring-o, 30.8mm

Ring-o, 30.8mm

92055A

Кольцо

Кольцо

92055B

Ring-o, 74.4x3.1

Ring-o, 74.4x3.1

92055C

Ring-o, 31.7x3.5

Ring-o, 31.7x3.5

92153

Bolt, Flange, 6x12

Bolt, Flange, 6x12

92154

Bolt, Flange, 8x30

Bolt, Flange, 8x30

92154A

Bolt, Flange, 10x35

Bolt, Flange, 10x35

92173

Clamp, 10.5

Clamp, 10.5

92180

Shim, T=0.3

Shim, T=0.3

92180A

Shim, Pinion Gear, A

Shim, Pinion Gear, A

92180B

Shim, Pinion Gear, B

Shim, Pinion Gear, B

92180C

Shim, Pinion Gear, C

Shim, Pinion Gear, C

92180D

Shim, Ring Gear, A

Shim, Ring Gear, A

92180E

Shim, Ring Gear, B

Shim, Ring Gear, B

92180F

Shim, Ring Gear, C

Shim, Ring Gear, C

92192

Трубка

Трубка

92200

Washer, 8mm

Washer, 8mm

92210

Nut, Lock, 65mm

Nut, Lock, 65mm
