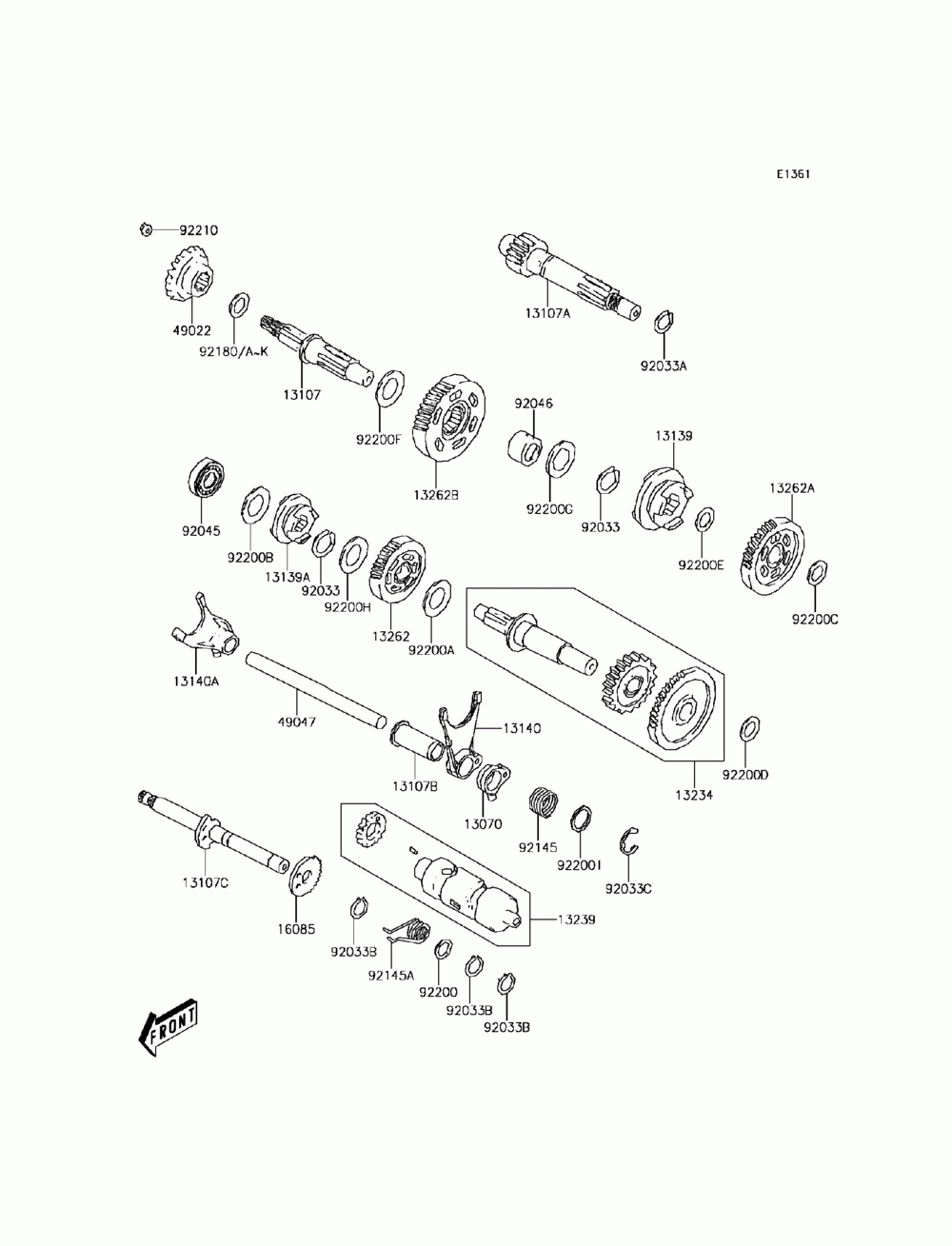

ТРАНСМИССИЯ

Kawasaki Brute Force 300 (KVF300-CHF)
Kawasaki
#oem кодцена
13070
13070-Y002
Guide, Fork-shift, Rh
13107
13107-Y011
Shaft, Main
13107A
13107-Y012
Вал ведущий
13107B
13107-Y013
Shaft, Shif Fork
13107C
13107-Y014
Shaft, Change Drum
13139
13139-Y001
Shifter, Reverse & Low
13139A
13139-Y002
Shifter, Forward
13140
13140-Y001
Fork-shift, Rh
13140A
13140-Y002
Fork-shift, Lh
13234
13234-Y003
Shaft-comp, Counter
13262
13262-Y004
????????,??????
13262A
13262-Y005
Gear, Backward
13262B
13262-Y006
Gear, Lower Driven
16085
16085-Y010
Gear, Change Lever
49022
49022-Y003
Gear-bevel, Drive
49047
49047-Y001
Rod-shift
92033
92033-Y022
Ring-snap, 28mm
92033A
92033-Y023
Ring-snap, 25mm
92033B
92033-Y024
Ring-snap, 12mm
92033C
92033-Y025
Ring-snap, 15mm
92045
92045-Y023
Bearing-ball, 6303
92046
92046-Y006
Bearing-needle, 20x26x
92145
92145-Y029
Spring, Drum
92145A
92145-Y052
Пружина
92180
92180-Y013
Shim, Driven, A, T=0.6
92180A
92180-Y014
Shim, Driven, B, T=0.65
92180B
92180-Y015
Shim, Driven, C, T=0.7
92180C
92180-Y016
Shim, Driven, D, T=0.75
92180D
92180-Y017
Shim, Driven, E, T=0.8
92180E
92180-Y018
Shim, Driven, F, T=0.85
92180F
92180-Y019
Shim, Driven, G, T=0.9
92180G
92180-Y020
Shim, Driven, H, T=0.95
92180H
92180-Y021
Shim, Driven, I, T=1.0
92180I
92180-Y022
Shim, Driven, J, T=1.05
92180J
92180-Y023
Shim, Driven, K, T=1.1
92180K
92180-Y024
Shim, Driven, L, T=1.15
92200
92200-Y026
Washer, 14x28x2
92200A
92200-Y028
Washer, 25mm
92200B
92200-Y029
Washer, 17.2mm
92200C
92200-Y030
Washer, 20mm
92200D
92200-Y031
Washer, 20mm
92200E
92200-Y032
Washer, 30x20x3
92200F
92200-Y033
Washer, 25mm
92200G
92200-Y034
Washer, 25mm
92200H
92200-Y035
Washer, 25x31x1.6
92200I
92200-Y036
Washer, 17x22
92210
92210-Y041
Nut, 18mm
