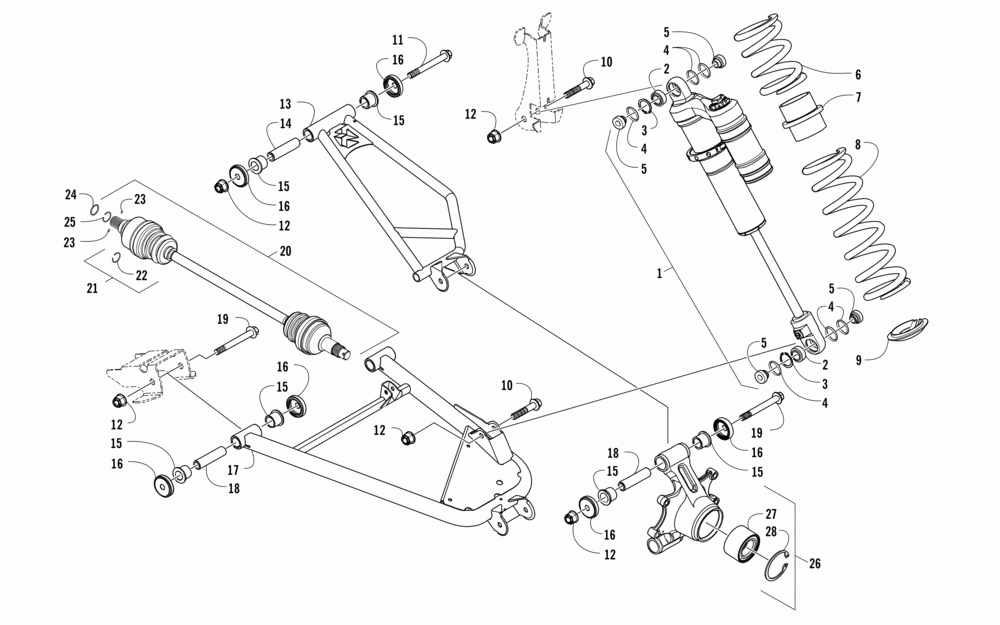

Задняя подвеска

Arctic Cat WILDCAT SPORT LTD EPS GRAY
Arctic Cat
#oem кодцена
1
0404-605
Shock, Rear (elka) Dealer Serviced Only
2
0404-532
Bearing, Spherical-26mm Bore (elka)
3
0404-531
Clip, Spiral Retaining-26mm Bore (elka)
4
0404-530
O-ring, Shock Spacer (elka) Kit
5
0404-529
Spacer, Shock Mount (elka)
6
0404-482
Spring, Rear Tender-blk
7
1504-385
Coupler, Spring, 10mm X 30mm
8
0404-483
Spring, 350in/lb-2.5in X 12in (blk)
9
0403-574
Spring Retainer Ring, 46mm
10
8409-055
Screw, Cap-hfh M10x1.25x55 Cl10.9 Z&y
11
1423-266
Screw, Cap-hfh M10-1.25x155
12
1423-334
Nut, Hex-flg M10x1.25 Cl10 W/nyloc Hd (10 Per Pack)
13
1504-370
A-arm, Rr-upr-assy-med Green (inc. 14-16)
14
0404-503
Sleeve, Front Suspension-upper
15
2402-077
Bearing, Flange-18 Id X 26 Od X 20
16
1423-287
Seal, Suspension
17
1504-376
A-arm, Rr-lwr-rh-assy-med Green (inc. 15-16 And 18)
17
1504-377
A-arm, Rr-lwr-lh-assy-med Green (inc. 15-16 And 18)
18
0404-501
Sleeve, Rear Suspension-lower
19
8413-090
Screw, Cap-hfh M10x1.25x90 Cl10.9 Silv (4 Per Pack)
20
2502-355
Kit, Halfshaft (inc. 21-25)
21
2436-112
Kit, Repair-cv Boot (inc. 22)
22
1441-988
Circlip, Halfshaft-internal (2 Per Pack)
23
1402-884
Pin, Transfer, Long-coupler Axle (4 Per Pack)
24
1402-963
O-ring, H-shaft-ht-31.75mm Id X 1.78mm
25
1402-890
Circlip, 25mm (2 Per Pack)
26
1504-066
Knuckle, Rear-assy-sport (inc. 15-16, 18, And 27-28)
27
1402-809
Подшипник колеса
28
0423-423
Стопорное кольцо
