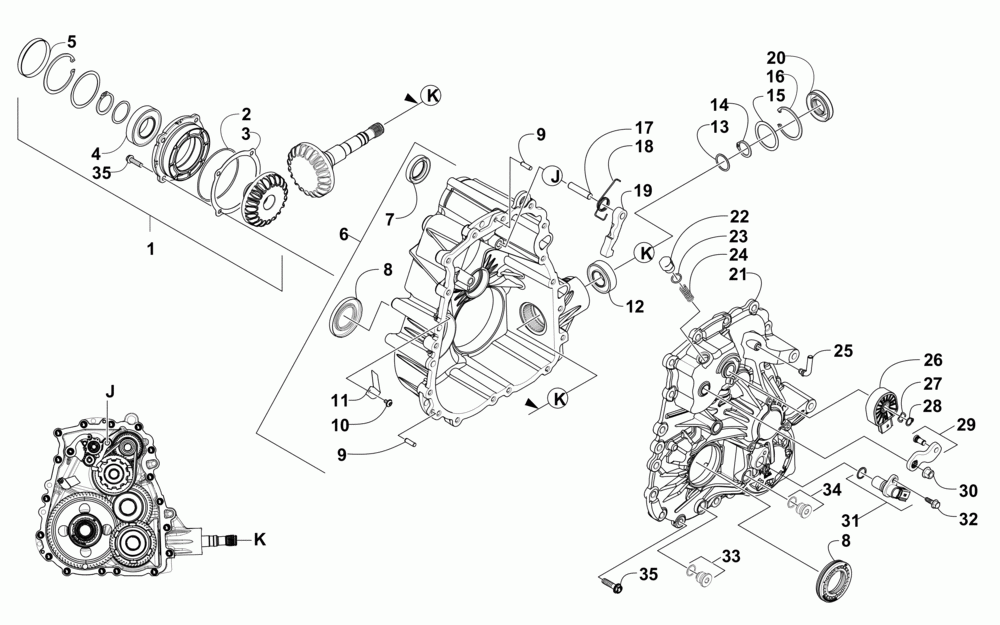

Transaxle case / cover

Arctic Cat WILDCAT TRAIL RED
Arctic Cat
#oem кодцена
1
0817-068
Subassembly, Pinion (inc. 2-5)
2
0817-081
O-ring, 2-156
3
0817-025
Shim Set135.00 Od X 116.0 Id
4
0817-078
Bearing, Ball, 6208 C3
5
0817-080
Plug, Pinion Cover
6
0817-069
Subassembly, Case (inc. 7-16)
7
0817-079
Seal, Triple Lip-1.180x1.850x0.315 Viton
8
0817-076
Seal, Triple Lip-viton 40x70x7
9
0817-077
Pin, Dowel, 6 X 20
10
0817-004
Screw, Tapping Tth Hd #10-24 X .375
11
0817-070
Deflector, Oil,
12
0817-028
Bearing, Ball, 6205 C3 25x52x15
13
0817-024
Shim, Set 2.040 Od X 1.63 Id
14
0817-015
Ring, Retaining Basic, Internal 2.047
15
0817-023
Shim, Set 1.180 Od X .995 Id
16
0817-012
Ring, Retaining Basic, External .984
17
0817-011
Pin, Dowel, 10x45
18
0817-086
Spring, Torsion Park Pawl
19
0817-087
Pawl, Park
20
0817-072
Seal, Triple Lip, 0.984x2.047x0.394
21
0817-040
Cover, Mach
22
0817-065
Plug, Detent
23
0817-075
O-ring, .530 I.d X .082 Wide
24
0817-036
Spring, Compression, .450 Od X 1.58
25
0817-051
Tube, Vent, 90 -1/4" Hose
26
0409-151
Switch, Gear-transaxle(014 Wc 50)
27
0817-037
Spring, Wave, 16 X 11.28 X 0.25
28
0817-019
Ring, Retaining, External Dsh-12
29
0817-067
Subassembly, Bellcrank
30
0817-007
Nut, Lock Hex Flange, Nylon M8 X 1.25
31
0430-121
Sensor, Speed-lor Mx
32
0817-006
Screw, Hex Flange Head, M6 X 1 X 20
33
0817-003
Plug, M18 X 1.5, Magnetic
34
0817-002
Plug, M18 X 1.5
35
0817-005
Screw, Hex Flange Head, M8 X 1.25 X 30 Self-tapping Screw (5 Per Pack)
