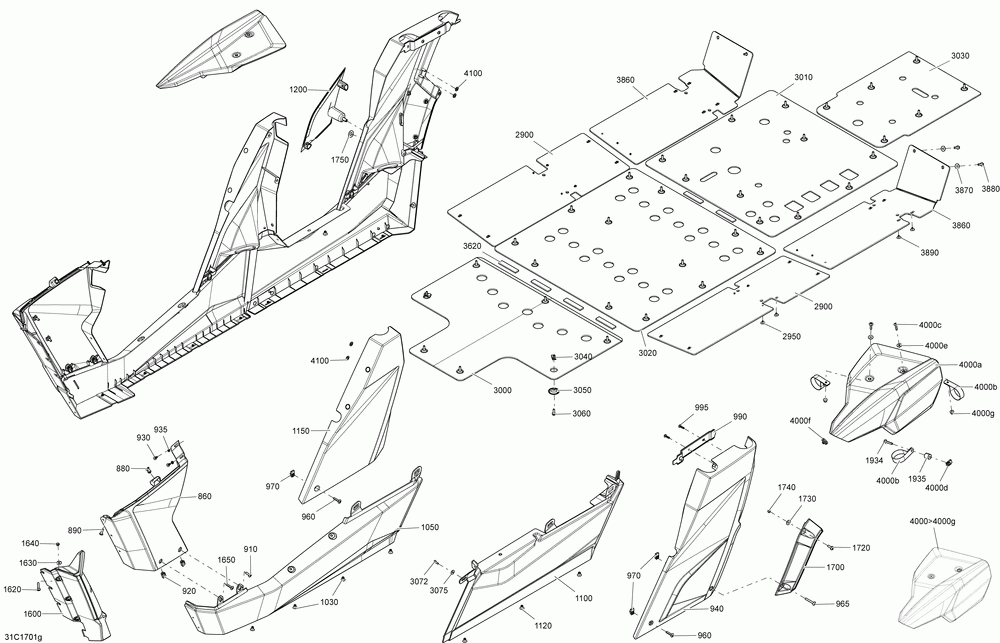

09- body and accessories - max, central, all models

Cam-am Commander - Commander Max
Cam-am
#oem кодцена
860
705008349
Panneau Gauche *left Panel Aluminum Model
860
705008351
Panneau Droit *rh. Panel Aluminum Model
860
705009590
Panneau Gauche *left Panel Camo Model
860
705009591
Panneau Droit *right Panel Camo Model
860
705010701
Front Left Panel Midnight Blue Blue Model
860
705010702
Front Right Panel Midnight Blue Blue Model
860
705007851
Viper Red Lh Front Lateral Pannel Red Model
860
705007852
Viper Red Rh Front Lateral Pannel Red Model
880
293150089
Пластиковая Заклепка
890
250000722
Torx Screw M6 X 20
910
250000722
Torx Screw M6 X 20
920
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
930
250000760
Винт
935
234051410
Плоская Шайба М5
940
705008354
Panneau Lat. *side Panel Aluminum Model
940
705008356
Panneau Lat. *side Panel Aluminum Model
940
705009596
Panneau Gauche *left Panel Camo Model
940
705009602
Panneau Droit *right Panel Camo Model
940
705010703
Rear Left Panel Midnight Blue Blue Model
940
705010727
Rear Right Panel Midnight Blue Blue Model
940
705009605
Panneaudroit *right Panel Red Model
940
705007874
Viper Red Lh Rear Lateral Panel Red Model
960
250000843
Torx-truss M/s Nylon Patch
965
250000748
Torx-truss M/s M6 X 45
970
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
990
705007916
Support Skid Plate
995
250000760
Винт
1030
293150104
Поп Заклепки 3/16"
1050
705005423
Black Lh Lower Panel Package Dps
1050
705005424
Black Rh Lower Panel Package Dps
1050
705007035
Black Lh Lower Panel Package Ltd
1050
705007036
Black Rh Lower Panel Package Ltd
1100
705005425
Black Lh Rear Lower Panel
1100
705005426
Black Rh Rear Lower Panel
1120
293150104
Поп Заклепки 3/16"
1150
705008361
Panneau De Cage*cage Panel Aluminum Model
1150
705008364
Panneau De Cage*cage Panel Aluminum Model
1150
705009611
Panneau De Cage*cage Panel Camo Model
1150
705009614
Panneau De Cage*cage Panel Camo Model
1150
705010730
Left Cage Panel Midnight Blue Blue Model
1150
705010731
Right Cage Panel Midnight Blue Blue Model
1150
705009607
Panneau De Cage*cage Panel Red Model
1150
705009609
Panneau De Cage*cage Panel Red Model
1200
705008367
Couvercle *panel Cover Aluminum Model
1200
705009617
Couvercle *panel Cover Red Model
1200
705009619
Couvercle *panel Cover Camo Model
1200
705010729
Panel Cover Midnight Blue Blue Model
1600
705008668
Lh Lower Black Mudguard Package Xt, Ltd
1600
705008669
Rh Lower Black Mudguard Package Xt, Ltd
1620
250000842
Torx-truss M/s M6 X 30 Package Xt, Ltd
1630
234062670
Flat Washer Package Xt, Ltd (10.000 Per Pack)
1640
232561434
Nut-stop Elastic Din.985 Package Xt, Ltd
1650
250000842
Torx-truss M/s M6 X 30 Package Xt, Ltd
1700
705008670
Lh Rear Lower Black Mudguard Package Xt, Ltd
1700
705008672
Rh Rear Lower Black Mudguard Package Xt, Ltd
1720
250000712
Torx Screw M6 X 20 Package Xt, Ltd
1730
234062670
Flat Washer Package Xt, Ltd (10.000 Per Pack)
1740
232561434
Nut-stop Elastic Din.985 Package Xt, Ltd
1750
250200086
Flat Washer Package Xt, Ltd
1934
250000415
Torx Screw Nylon
2900
705008421
Side Protector Plate
2950
293150104
Поп Заклепки 3/16"
3000
705007055
Middle Protector Plate
3010
705007056
Rear Protector Plate
3020
705009447
Plaque *skid Plate
3030
705007227
Rear Protector Plate
3040
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
3050
705007171
Крышка крыльчатки
3060
210262050
Screw-forming Hex.hd.fl.bzn (10.000 Per Pack)
3072
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
3075
250200025
Washer M5 (10.000 Per Pack)
3620
291001932
Подушка изолирующая
3860
705007038
Lateral Skid Plate
3870
250200097
Шайба
3880
210262050
Screw-forming Hex.hd.fl.bzn (10.000 Per Pack)
3890
293150104
Поп Заклепки 3/16"
4000>4000g
705008450
Black Cage Cover Kit Camo Model Include 4000a>4000g
4000>4000g
705010737
Kit Cage Cover Midnight Blue Blue Model Include 4000a>4000g
4000a
705008452
Black Lh Top Center Cage Cover Camo Model
4000a
705008453
Black Rh Top Center Cage Cover Camo Model
4000b
705005626
Attache *"p" Clamp
4000c
207662054
Винт М6 Х 20
4000d
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
4000e
234062670
Flat Washer (10.000 Per Pack)
4000f
293750008
Tie-rap 368 Mm (10.000 Per Pack)
4000g
233261494
Hex. Elastic Flanged Nut M6 (10.000 Per Pack)
4100
250100031
Ecrou Pression *push-nut
