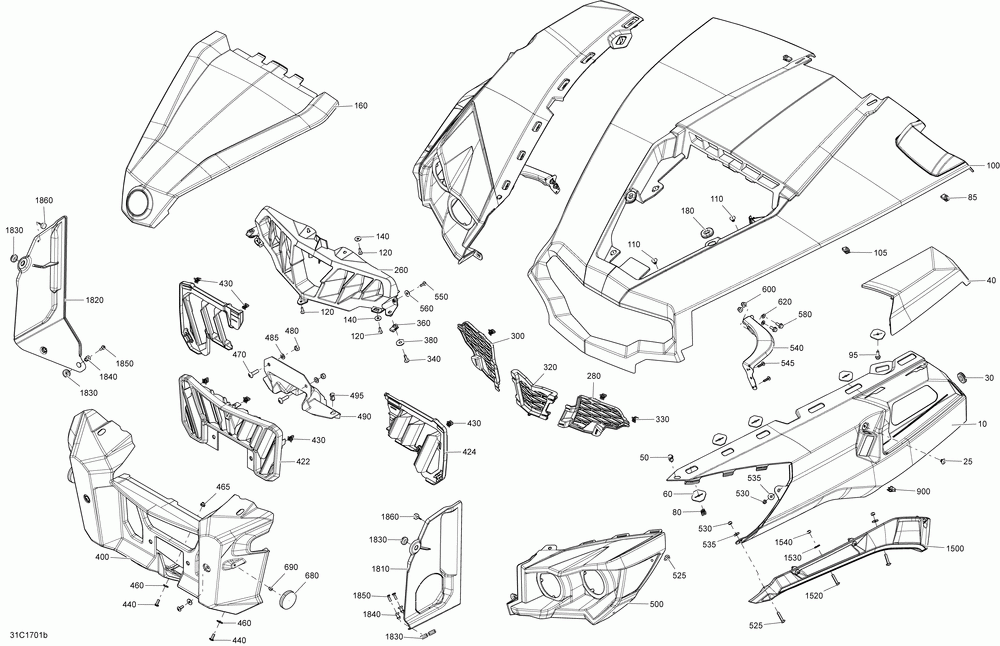

09- body and accessories - max, front, all models

Cam-am Commander - Commander Max
Cam-am
#oem кодцена
10
705008340
Aile Avant *front Fender Aluminum Model
10
705008342
Aile Avant *front Fender Aluminum Model
10
705009576
Aile Avant *front Fender Camo Model
10
705009577
Aile Avant *front Fender Camo Model
10
705010696
Left Front Fender Midnight Blue Blue Model
10
705010697
Right Front Fender Midnight Blue Blue Model
10
705008196
Viper Red Lh Front Fender Red Model
10
705008197
Viper Red Rh Front Fender Red Model
25
293150104
Поп Заклепки 3/16"
30
517303756
Втулка
40
705008191
Viper Red Cvt Inlet Cover Red Model
40
705008344
Couv Entree Cvt*cvt Inlet Cove Aluminum Model
40
705009582
Couv Entree Cvt* Inlet Cover Camo Model
40
705010698
Inlet Cover Midnight Blue Blue Model
50
293150089
Пластиковая Заклепка
60
705003841
Опорная Плита
80
517302785
Clip (10.000 Per Pack)
85
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
95
207662054
Винт М6 Х 20
100
705008188
Viper Red Fixed Hood Red Model
100
705008346
Capot *hood Aluminum Model
100
705009585
Capot *hood Camo Model
100
705010699
Fix Hood Midnight Blue Blue Model
105
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
110
293150104
Поп Заклепки 3/16"
120
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
140
234062670
Flat Washer (10.000 Per Pack)
160
705008185
Viper Red Removable Hood Red Model
160
705009206
Capot *hood Aluminum Model
160
705009588
Capot *hood Camo Model
160
705010700
Removable Hood Midnight Blue Blue Model
180
705005156
Oval Washer
260
705003629
Upper Facia, Black
280
705004350
Lh Upper Facia Protector
300
705004351
Rh Upper Facia Protector
320
705004336
Center Upper Facia Protector
330
517302785
Clip (10.000 Per Pack)
340
250000722
Torx Screw M6 X 20
360
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
380
234082410
Flat Washer 8 Mm (10.000 Per Pack)
400
705008689
Black Front Facia Package Dps
422
705004755
Lower Front Facia Protector
424
705004819
Lh Lower Rear Facia Protector
424
705004820
Rh Lower Rear Facia Protector
430
517302785
Clip (10.000 Per Pack)
440
250000755
Torx-truss M/sm6 X 16
460
234062670
Flat Washer (10.000 Per Pack)
465
293450274
Вставка
470
250000745
Torx Truss M/s M8 X 30 Package Dps
480
232081414
Hex. Nut M8 Package Dps (10.000 Per Pack)
485
234081410
Flat Washer 8 Mm Package Dps (10.000 Per Pack)
490
705003399
Bottom Deflector Package Dps
495
293150089
Tuflok Plastic Rivet Package Dps (25.000 Per Pack)
500
705002885
Lh Front Facia
500
705002886
Rh Front Facia
525
250000842
Torx-truss M/s M6 X 30
530
232561434
Гайка с тефлоном
535
234062670
Flat Washer (10.000 Per Pack)
540
705002891
Facia Front Support
545
250000760
Винт
550
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
560
234062670
Flat Washer (10.000 Per Pack)
580
207661644
Hex. Flanged Screw M6 X 16 (25.000 Per Pack)
600
233261414
Резиновая гайка фиксатор М6
620
234061600
Flat Washer M6, Stainless (25.000 Per Pack)
680
705011222
Amber Reflector
690
233251434
Flanged Elastic Nut M5 (4.000 Per Pack)
900
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
1500
705008666
Lh Black Upper Front Mudguard Package Xt, Ltd
1500
705008667
Rh Black Upper Front Mudguard Package Xt, Ltd
1520
250000842
Torx-truss M/s M6 X 30 Package Xt, Ltd
1530
234062670
Flat Washer Package Xt, Ltd (10.000 Per Pack)
1540
232561434
Nut-stop Elastic Din.985 Package Xt, Ltd
1810
705002895
Lh Deflector Package Dps
1810
705005113
Lh Deflector Package Xt, Ltd
1820
705002894
Резус Дефлектор
1830
293720053
Grommet (10.000 Per Pack)
1840
517303439
Knob (6.000 Per Pack)
1850
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
1860
708000759
Резиновые стопоры
