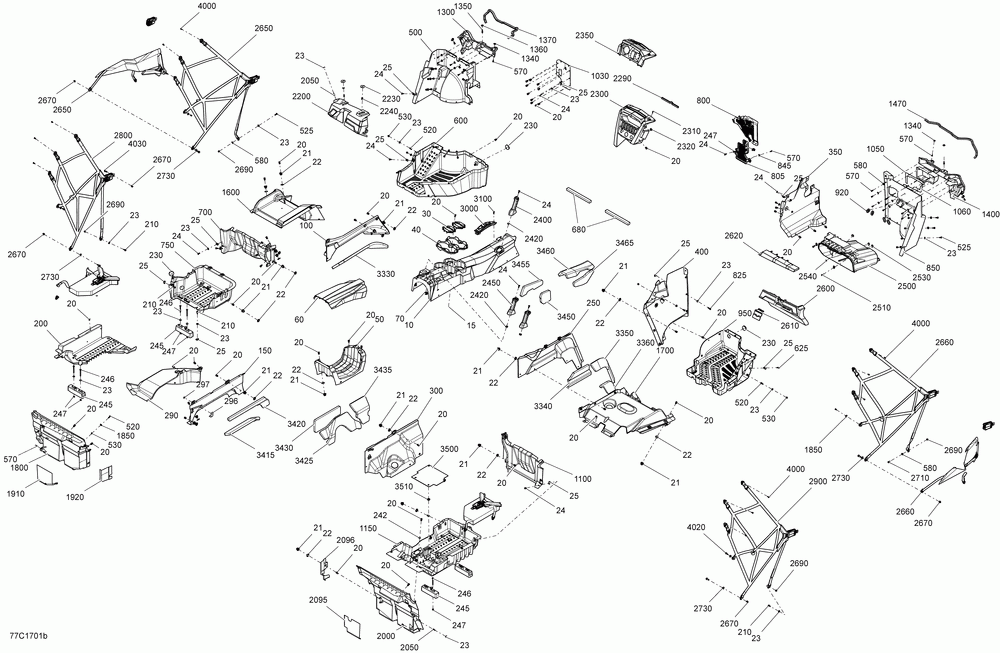

09- cab interior - commander max

Cam-am Commander - Commander Max
Cam-am
#oem кодцена
10
715004114
Front Console Ass Y
15
732610072
Гайка
20
293150089
Пластиковая Заклепка
21
707900133
Вставка
22
503189273
Шайба (отпускается по 25 шт)
23
234062670
Flat Washer (10.000 Per Pack)
24
250000722
Torx Screw M6 X 20
25
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
30
707900036
Cup Retainer
40
707900100
Cup Holder
50
707900075
Rear Central Console
60
707900229
Rear Console Cover Kit
70
517303756
Втулка
100
707900001
Lh Side Console
150
707900391
Console Lat. *rear Lh Consol
200
707900387
Plaque *under Cover
210
207662054
Винт М6 Х 20
230
293250242
Rubber Cover
242
506151252
Шайба (отпускается по 25 шт)
245
707900099
Опорная Плита
246
207667056
Винт М6 Х 70
247
293450274
Вставка
250
707900002
Rh Side Console
290
707900388
Capuchon Planch*rear Floor Cap
296
705205445
Insert Support
297
293150103
Заклепка 3/16
300
707900080
Rh Rear Console Panel
350
707900193
Front Side Dash Panel
400
707900021
Console Lat. *side Dash Except Package Ltd
400
707900098
Console Lat. *side Dash Package Ltd
500
707900175
Lh Front Upper Floor
520
250000712
Torx Screw M6 X 20
525
250000758
Torx-truss M/s M6 X 25
530
233261494
Hex. Elastic Flanged Nut M6 (10.000 Per Pack)
570
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
580
234062410
Шайба М6
600
707900022
Lh Lower Floor
625
250000807
Torx-truss M/s M6 X 25
680
293250318
Anneau Etanche *seal-tray
700
707900082
Lh Rear Upper Floor Cover
750
707900331
Plancher Arr. *rear Floor
800
707900178
Grill
805
707900180
Grill
825
250000843
Torx-truss M/s Nylon Patch
845
250200025
Washer M5 (10.000 Per Pack)
850
707900004
Rh Front Floor
920
705003668
Крепление
950
707900023
Rh Lower Floor
1030
707900125
Дефлектор
1050
293250252
Upper Seal
1060
293250253
Bottom Seal
1100
707900083
Seat Cover
1150
707900231
Rh Lower Rear Floor
1300
707900029
Lh Floor Support
1340
224060201
Flat Washer (10.000 Per Pack)
1350
207162544
Hex. Screw M6 X 25 (10.000 Per Pack)
1360
224061201
Flat Washer (10.000 Per Pack)
1370
293200093
Neoprene Seal (8.000 Per Pack)
1400
707900030
Rh Floor Support
1470
293200093
Neoprene Seal (8.000 Per Pack)
1600
707900130
Under Seat Cover
1700
707900006
Rh Under Seat Plate
1800
707900220
Lh Rear Deflector
1850
250200040
Flat Washer (3.000 Per Pack)
1910
707900182
Тепловой Щит
1920
707900183
Тепловой Щит
2000
707900219
Rh Rear Deflector
2050
250000760
Винт
2095
707900167
Тепловой Щит
2096
707900184
Тепловой Щит
2200
715001250
Dashboard Ass Y
2230
705003841
Опорная Плита
2240
517302785
Clip (10.000 Per Pack)
2290
271000110
Protection Trim Package Ltd
2300
715002178
Central Dashboard Ass Y Except Package Ltd
2300
715002187
Central Dashboard Ass Y Package Ltd
2310
250000724
Звездообразный Винт М5 Х 20
2320
250000079
Гайка М5 Х 0,8
2350
707900066
Gauge Support Package Ltd
2400
707900011
Passenger Handle
2420
707900048
Connector Tube
2450
707900103
Ручка
2500
707900009
Storage Bin Package Dps
2500
707900046
Storage Bin Package Xt
2510
207662034
Винт М6 Х 20
2530
414859400
Cap (10.000 Per Pack)
2540
293830005
Rubber Bumper (5.000 Per Pack)
2600
707900221
Luggage Cover Kit
2610
707900031
Защёлка
2620
707900062
Trim Glove Box
2650
707900237
Filet *safety Net
2660
707900238
Filet *safety Net
2670
233281414
Гайка М8
2690
233261414
Резиновая гайка фиксатор М6
2710
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
2730
234082410
Flat Washer 8 Mm (10.000 Per Pack)
2800
707900239
Filet *safety Net
2900
707900240
Filet *safety Net
3000
707900088
Shift Lever Indicator
3100
250000728
Torx Screw M6 X 25 (2.000 Per Pack)
3330
707900044
Lh Lower Lateral Console Foam
3340
707900045
Rh Lateral Console Foam
3350
707900055
Rh Lateral Console Foam
3360
707900056
Rh Lateral Console Foam
3415
707900333
Поролон
3420
707900120
Acoustic Foam
3435
707900206
Acoustic Foam
3455
707900210
Acoustic Foam
3460
707900211
Acoustic Foam
3465
707900212
Acoustic Foam
3500
707900163
Battery Cover
3510
705003264
Уплотнитель резиновый
4000
250000742
Торкс-стропильная м/с М5 х 14 нейлон
4020
207562054
Flanged Hex. Screw S.grip M6 X 20
4030
207682044
Hex. Flanged Screw M8 X 20 (10.000 Per Pack)
