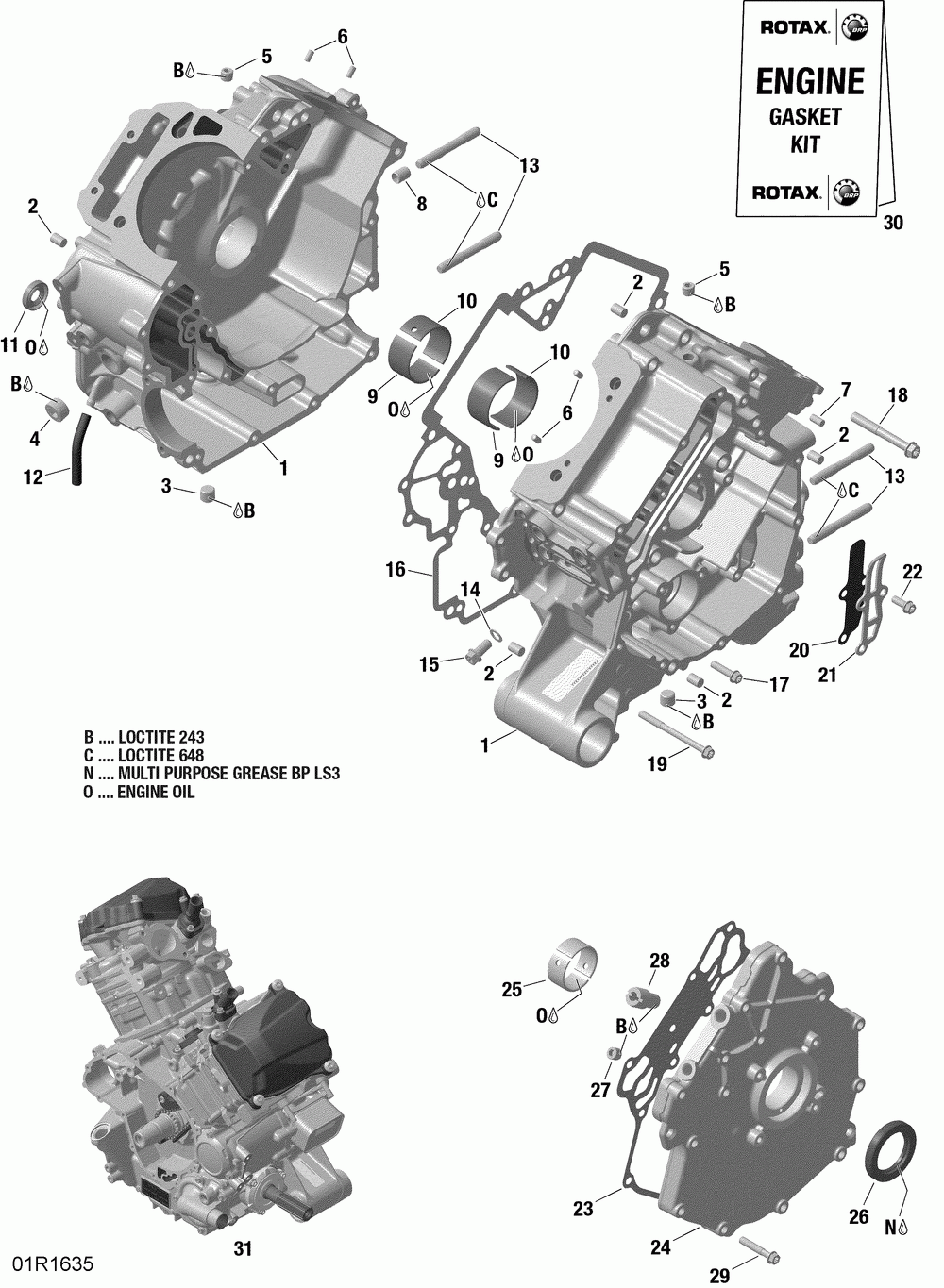

01- crankcase - hd10

Cam-am Defender
Cam-am
#oem кодцена
2
420632010
Контактный Центр 8 Х 12
3
420840658
Plug Screw M12 X 1.5
4
420240170
Plug Screw M18 X 1.5
5
420641323
Plug Screw M10 X 1
6
420929650
Drive Pin 5 X 10 (10.000 Per Pack)
7
420932780
Иглы Контактный
8
420929670
Dowel Pin 10 X 13
9
420233960
Вкладыш
10
420233965
Вкладыш
11
420650310
Oil Seal Included In Gasket Set
13
420240814
Шпилька
14
420950141
Sealing Ring Included In Gasket Set (5.000 Per Pack)
15
420440852
Flanged Torx Screw M8 X 16
16
420651225
Joint Etanche *gasket Included In Gasket Set
17
420641238
Flanged Torx Screw M6 X 25 (5.000 Per Pack)
18
420440402
Flanged Torx Screw M8 X 65
19
420440657
Flanged Torx Screw M6 X 75
20
420224720
Valve Plate
21
420224725
Reed Valve Stop
22
420641048
Flanged Torx Screw M6 X 16 (5.000 Per Pack)
23
420651211
Gasket Included In Gasket Set
24>27
420612128
Pto Cover Ass Y
25
420233995
Bearing Sleeve
26
420631933
Oil Seal Included In Gasket Set
27
420641323
Plug Screw M10 X 1
28
420256334
Hose Nipple M12 X 1.5
29
420440274
Flanged Torx Screw M6 X 35
30
420684150
Ens. Joint Etanc*gasket Set
31
420101060
Block-long 1010
