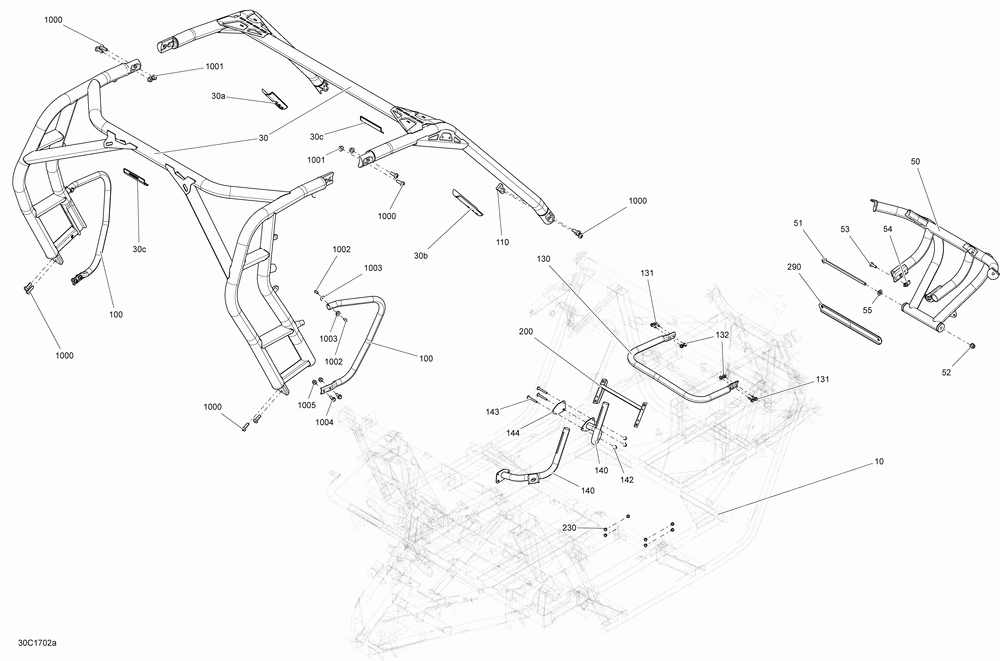

Рама - все модели

Cam-am Maverick
Cam-am
#oem кодцена
10
715003793
Chssis *frame Dps_xc_xcdps_xxc_xmr
10
715003798
Frame Xds_xdsstd
30>30c
715003420
Black Cage Kit Includes 30 To 30c
30>30c
715003427
Red Cage Kit Includes 30 To 30c
30>30c
715003423
Blue Cage Kit Includes 30 To 30c
30a
704903679
Warning Label Roll Over
30b
704903680
Warning Label Roll Over
30c
704903492
Warning Label
50
705203685
Передний Бампер
51
250000597
Винт
52
233201436
Flanged Elastic Nut M10 (10.000 Per Pack)
53
207382544
Screw-hex.cap Din.933 S.grip (10.000 Per Pack)
54
250100118
Panel Nut M8 X 1.25 (4.000 Per Pack)
55
234201474
Conical Spring Washer 10 Mm (10.000 Per Pack)
100
705203640
Black Rh Side Protector Tube
100
705204410
Red Rh Front Side Protector Tube
100
705204817
Tube Protecteur*side Protect
110
705203415
Plaque *binding Plate
120
705203637
Black Lh Side Protector Tube
120
705204409
Red Lh Front Side Protector Tube
120
705204816
Tube Protecteur*side Protect
130
705203332
Черная Ручка
131
207662046
Винт М6 Х 20
132
233261416
Elastic Flanged Nut M6
140
705204253
Black Console Handle 1000tefi
140
705204399
Black Console Handle 1000refi
142
233261416
Elastic Flanged Nut M6
143
250000317
Torx Screw M6 X 50
144
705204606
Steel Plate
200
705203330
Reinforcement Panel
230
293150096
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
290
705203454
Front Suspension Link
1000
250000848
Screw-pan Hd.torx S.grip Bzn
1001
233101464
Hex. Flange Nut, M10 X 1.5
1002
250000789
Torx-truss M/s S.grip M6 X 14
1003
705202223
Offset Washer (2.000 Per Pack)
1004
207682044
Hex. Flanged Screw M8 X 20 (10.000 Per Pack)
1005
233281414
Гайка М8
