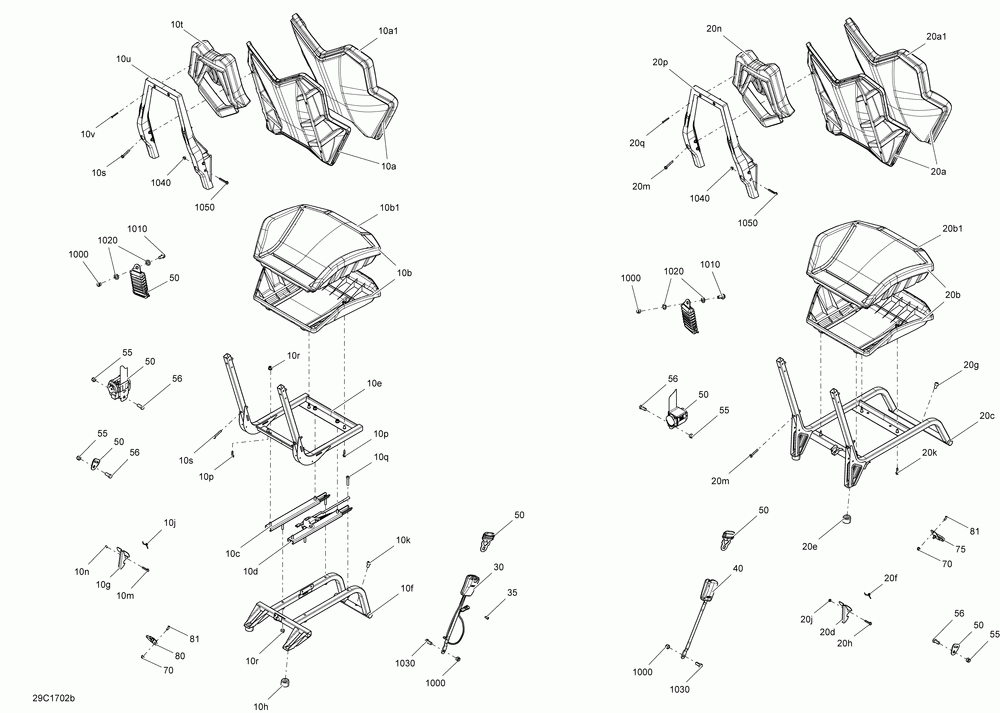

09- seat - turbo

Cam-am Maverick
Cam-am
#oem кодцена
10a
708002246
Backrest Assembly Package Xds Std Includes 10a To 10a1
10a
708002271
Backrest Package Xds Includes 10a To 10a1
10a1
708002248
Backrest Cover Package Xds Std
10a1
708002272
Cover Package Xds
10b
708002247
Cushion Assembly Package Xds Std Includes 10b To 10b1
10b
708002273
Cushion Package Xds Includes 10b To 10b1
10b1
708002249
Seat Cover Package Xds Std
10b1
708002274
Cover Package Xds
10c
708000848
Lh Rail
10d
708001739
Rh Rail
10e
708001356
Operator Seat Frame
10f
708000667
Seat Member
10g
708001355
Seat Latch
10h
708001671
Резиновый Бампер
10j
708000921
Пружина
10k
205501644
Socket Screw M10 X 16
10m
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip (5.000 Per Pack)
10n
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
10p
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip (10.000 Per Pack)
10q
205084044
Socket Head Screw M8 X 40 (5.000 Per Pack)
10r
233281414
Гайка М8
10s
250000672
Screw-hex.flange Din.6921s.grip
10t
708001074
Head Rest
10u
708001245
Seat Support
10v
250000897
Hex. Washer Head Screw Pt K50 X 40 (2.000 Per Pack)
20a
708002246
Backrest Assembly Package Xds Std Includes 20a To 20a1
20a
708002271
Backrest Package Xds Includes 20a To 20a1
20a1
708002248
Backrest Cover Package Xds Std
20a1
708002272
Cover Package Xds
20b
708002247
Cushion Assembly Package Xds Std Includes 20b To 20b1
20b
708002273
Cushion Package Xds Includes 20b To 20b1
20b1
708002249
Seat Cover Package Xds Std
20b1
708002274
Cover Package Xds
20c
708001357
Passenger Seat Frame
20d
708001355
Seat Latch
20e
708001671
Резиновый Бампер
20f
708000921
Пружина
20g
205501644
Socket Screw M10 X 16
20h
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip (5.000 Per Pack)
20j
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
20k
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip (10.000 Per Pack)
20m
250000672
Screw-hex.flange Din.6921s.grip
20n
708001074
Head Rest
20p
708001245
Seat Support
20q
250000897
Hex. Washer Head Screw Pt K50 X 40 (2.000 Per Pack)
25c
708001474
Ancrage *anchor Maverick Max
25e
708001198
Seat Support Maverick Max
25g
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip Maverick Max (10.000 Per Pack)
25h
250000672
Screw-hex.flange Din.6921s.grip Maverick Max
25j
233161464
Hex. Elastic Flange Nut M6 Maverick Max
25k
234062670
Flat Washer Maverick Max (10.000 Per Pack)
25m
708001074
Head Rest Maverick Max
25n
708001245
Seat Support Maverick Max
25p
250000897
Hex. Washer Head Screw Pt K50 X 40 Maverick Max (2.000 Per Pack)
30
708000856
Driver Buckle Side Package Xds
30
708002061
Boucle *driver Buckle Package Xds Std
35
293750008
Tie-rap 368 Mm (10.000 Per Pack)
40
708000857
Passenger Buckle Side Package Xds
40
708002062
Boucle *buckle Package Xds Std
50
708001130
Safety Belt Package Xds
50
708001854
Ceinture *safety Belt Package Xds Std
55
250100135
Nylon Insert Hex. Lock Nut 7/16-20 (2.000 Per Pack)
56
250000521
Hex. Cap Screw 7/16 X 1 (2.000 Per Pack)
70
293450274
Вставка
75
708002303
Right Retaining Rod
80
708002302
Left Retaining Rod
81
250000717
Torx Head Screw M6 X 16
1000
250100135
Nylon Insert Hex. Lock Nut 7/16-20 (2.000 Per Pack)
1010
708000890
Safety Belt Screw
1020
708000891
Position Washer
1030
250000521
Hex. Cap Screw 7/16 X 1 (2.000 Per Pack)
1040
233161464
Hex. Elastic Flange Nut M6
1050
250000672
Screw-hex.flange Din.6921s.grip
