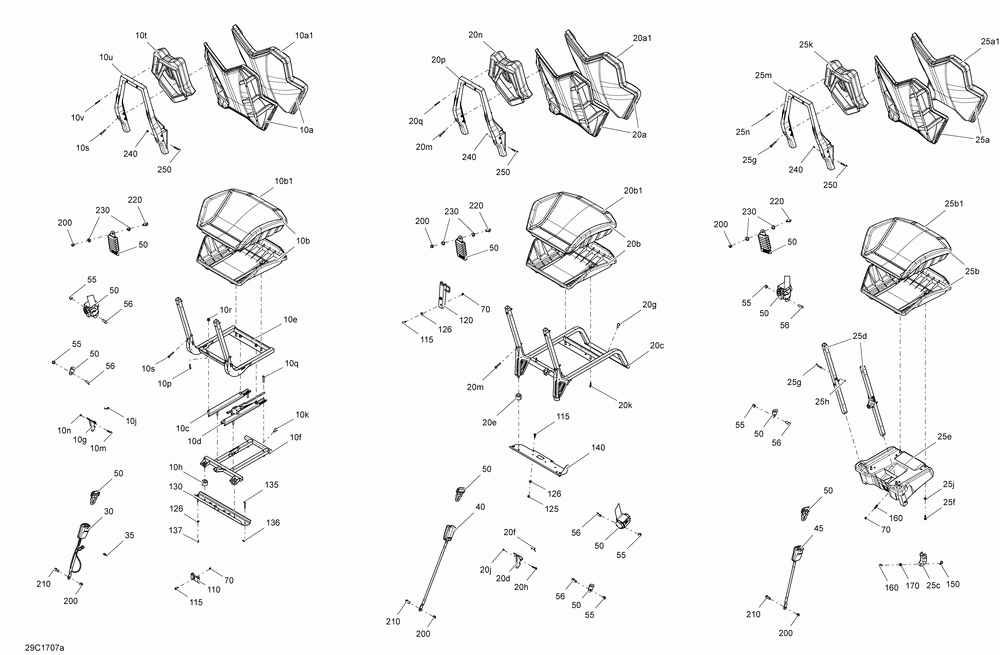

09- seat - 1000r efi

Cam-am Maverick MAX
Cam-am
#oem кодцена
10a
708001316
Backrest Ass Y Package Dps Includes 10a To 10a1
10a
708002271
Backrest Package Xmr Includes 10a To 10a1
10a1
708000675
Backrest Cover Package Dps
10a1
708002272
Cover Package Xmr
10b
703500943
Kit Cushion Ass Y Package Dps Includes 10b To 10b1
10b
708002273
Cushion Package Xmr Includes 10b To 10b1
10b1
708001103
Seat Cover Package Dps
10b1
708002274
Cover Package Xmr
10c
708000848
Lh Rail
10d
708001739
Rh Rail
10e
708001356
Operator Seat Frame
10f
708001174
Seat Member
10g
708001355
Seat Latch
10h
708001671
Резиновый Бампер
10j
708000921
Пружина
10k
205501644
Socket Screw M10 X 16
10m
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip (5.000 Per Pack)
10n
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
10p
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip (10.000 Per Pack)
10q
205084044
Socket Head Screw M8 X 40 (5.000 Per Pack)
10r
233281414
Гайка М8
10s
250000672
Screw-hex.flange Din.6921s.grip
10t
708001074
Head Rest
10u
708001245
Seat Support
10v
250000897
Hex. Washer Head Screw Pt K50 X 40 (2.000 Per Pack)
20a
708001316
Backrest Ass Y Package Dps Includes 20a To 20a1
20a
708002271
Backrest Package Xmr Includes 20a To 20a1
20a1
708000675
Backrest Cover Package Dps
20a1
708002272
Cover Package Xmr
20b
703500943
Kit Cushion Ass Y Package Dps Includes 20b To 20b1
20b
708002273
Cushion Package Xmr Includes 20b To 20b1
20b1
708001103
Seat Cover Package Dps
20b1
708002274
Cover Package Xmr
20c
708001357
Passenger Seat Frame
20d
708001355
Seat Latch
20e
708001671
Резиновый Бампер
20f
708000921
Пружина
20g
205501644
Socket Screw M10 X 16
20h
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip (5.000 Per Pack)
20j
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
20k
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip (10.000 Per Pack)
20m
250000672
Screw-hex.flange Din.6921s.grip
20n
708001074
Head Rest
20p
708001245
Seat Support
20q
250000897
Hex. Washer Head Screw Pt K50 X 40 (2.000 Per Pack)
25a
708001316
Backrest Ass Y Package Dps Includes 25a To 25a1
25a
708002271
Backrest Package Xmr Includes 25a To 25a1
25a1
708000675
Backrest Cover Package Dps
25a1
708002272
Cover Package Xmr
25b
703500943
Kit Cushion Ass Y Package Dps Includes 25b To 25b1
25b
708002273
Cushion Package Xmr Includes 25b To 25b1
25b1
708001103
Seat Cover Package Dps
25b1
708002274
Cover Package Xmr
25c
708001474
Ancrage *anchor
25d
708001476
Tube Lateral *lateral Tube
25e
708001198
Seat Support
25f
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip (10.000 Per Pack)
25g
250000672
Screw-hex.flange Din.6921s.grip
25h
233161464
Hex. Elastic Flange Nut M6
25j
234062670
Flat Washer (10.000 Per Pack)
25k
708001074
Head Rest
25m
708001245
Seat Support
25n
250000897
Hex. Washer Head Screw Pt K50 X 40 (2.000 Per Pack)
30
708002061
Boucle *driver Buckle
35
293750008
Tie-rap 368 Mm (10.000 Per Pack)
40
708002064
Boucle *buckle
45
708002063
Boucle *buckle
50
708001854
Ceinture *safety Belt
55
250100135
Nylon Insert Hex. Lock Nut 7/16-20 (2.000 Per Pack)
56
250000521
Hex. Cap Screw 7/16 X 1 (2.000 Per Pack)
70
293450274
Вставка
110
708001212
Фиксатор
115
207562054
Flanged Hex. Screw S.grip M6 X 20
120
708001213
Фиксатор
125
233061414
Hex. Flanged Nut M6 (10.000 Per Pack)
126
234062670
Flat Washer (10.000 Per Pack)
130
708001214
Seat Support
135
250000213
Hex. Flanged Screw M6 X 1.0 X 45 (5.000 Per Pack)
136
250100171
Panel Nut M6 X 1.0
137
233261414
Резиновая гайка фиксатор М6
140
708001804
Суппорт
150
250100171
Panel Nut M6 X 1.0
160
207562054
Flanged Hex. Screw S.grip M6 X 20
170
234281474
Conical Spring Washer M8 (10.000 Per Pack)
200
250100135
Nylon Insert Hex. Lock Nut 7/16-20 (2.000 Per Pack)
210
250000521
Hex. Cap Screw 7/16 X 1 (2.000 Per Pack)
220
708000890
Safety Belt Screw
230
708000891
Position Washer
240
233161464
Hex. Elastic Flange Nut M6
250
250000672
Screw-hex.flange Din.6921s.grip
