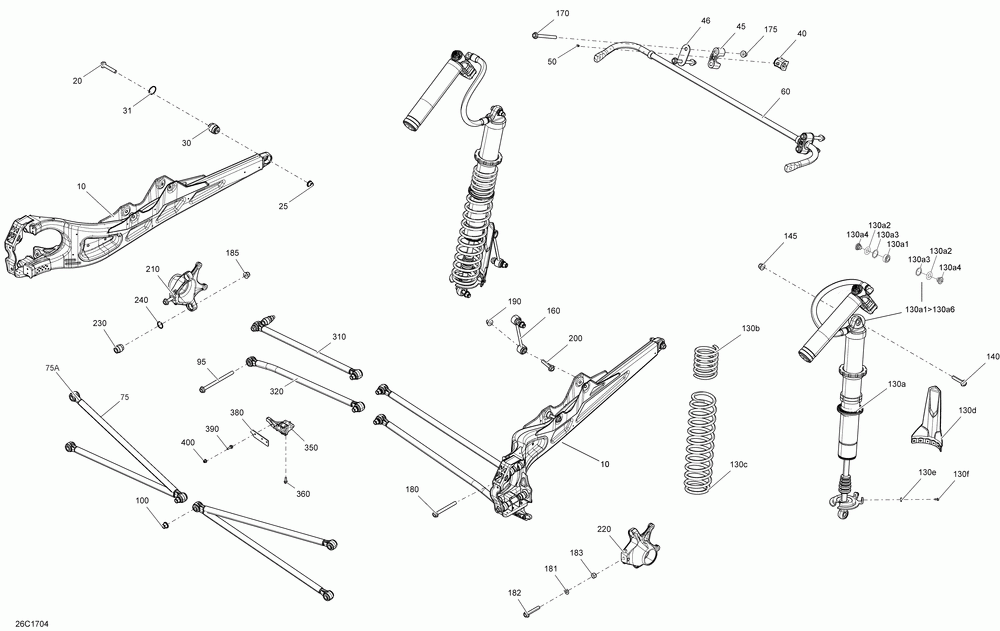

Задняя подвеска

Cam-am Maverick X3
Cam-am
#oem кодцена
10
706002567
Suspension Arm Model X3
10
706002568
Suspension Arm Model X3
10
706002694
Suspension Arm Model X3 Xrs Black
10
706002695
Suspension Arm Model X3 Xrs Black
20
250000858
Screw-hex.flange Din.6921 M12x1.75x70
25
233221466
Elastic Flange Nut M12
30
706001373
Radial Joint
31
293370093
Стопорное кольцо
40
706002302
Подушка
45
706002303
Зажим
46
706002357
Plate Support
50
408200700
Grease Fitting (10.000 Per Pack)
60
706002100
Sway-bar
75>75a
706002099
Control Link Model X3
75>75a
706002307
Control Link Model X3 Xrs
75a
706002135
Radial Joint
95
250000862
Screw-hex.flange Din.6921 M12x1.75x175
100
233221466
Elastic Flange Nut M12
130a
706002566
Shock Model X3 Includes: 130a1, 130a2, 130a3, 130a5
130a
706002562
Shock Model X3 Includes: 130a1, 130a2, 130a3, 130a5
130a
706002251
Amortisseur *shock Model X3 Xds Includes: 130a1, 130a2, 130a3, 130a4
130a
706001885
Amortisseur *shock Model X3 Xds Includes: 130a1, 130a2, 130a3, 130a4
130a
706002255
Shock Model X3 Xrs Black Includes: 130a1, 130a2, 130a3, 130a5, 130a6
130a
706002234
Shock Model X3 Xrs Gold Includes: 130a1, 130a2, 130a3, 130a5, 130a6
130a1
715900337
Spherical Bearing
130a2
715900338
O-ring Bushing
130a3
715900480
Стопорное кольцо
130a4
715900481
Reducer Model X3 Xds
130a5
715900481
Reducer Model X3 Xrs
130a6
715900482
Spherical Bearing Model X3 Xrs
130b
706002763
Spring Model X3
130b
706002564
Spring Model X3 Xrs Black
130c
706002765
Spring Model X3
130c
706002563
Spring Model X3 Xrs Black
130d
706202215
Протектор
130e
250200025
Washer M5 (10.000 Per Pack)
130f
210251150
Screw-forming Hex.hd.fl.bzn
140
250000857
Screw-hex.flange Din.6921 M12x1.75x60 Except Model X3 Xrs
140
250000858
Screw-hex.flange Din.6921 M12x1.75x70 Model X3 Xrs
145
233221466
Elastic Flange Nut M12
160
706002304
Шаровая опора
170
250000892
Screw-hex.flange Din.6921 M12x1.75x135
175
233221466
Elastic Flange Nut M12
180
250000860
Screw-hex.flange Din.6921 M12x1.75x115
181
250200086
Шайба
182
250000858
Screw-hex.flange Din.6921 M12x1.75x70
183
232521416
Elastic Stop Nut M12 (10.000 Per Pack)
185
233221466
Elastic Flange Nut M12
190
233221466
Elastic Flange Nut M12
200
250000857
Screw-hex.flange Din.6921 M12x1.75x60
210
706001960
Knuckle
220
706001961
Knuckle Rh.
230
706002317
Radial Joint
240
293370118
Стопорное кольцо
310
706002136
Control Link Model X3
310
706002751
Control Link Model X3 Xrs
320
706002139
Rod Model X3 Xds
320
706002311
Control Link Model X3 Xrs
360
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
380
706002851
Плита Износа
390
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
400
233261414
Резиновая гайка фиксатор М6
