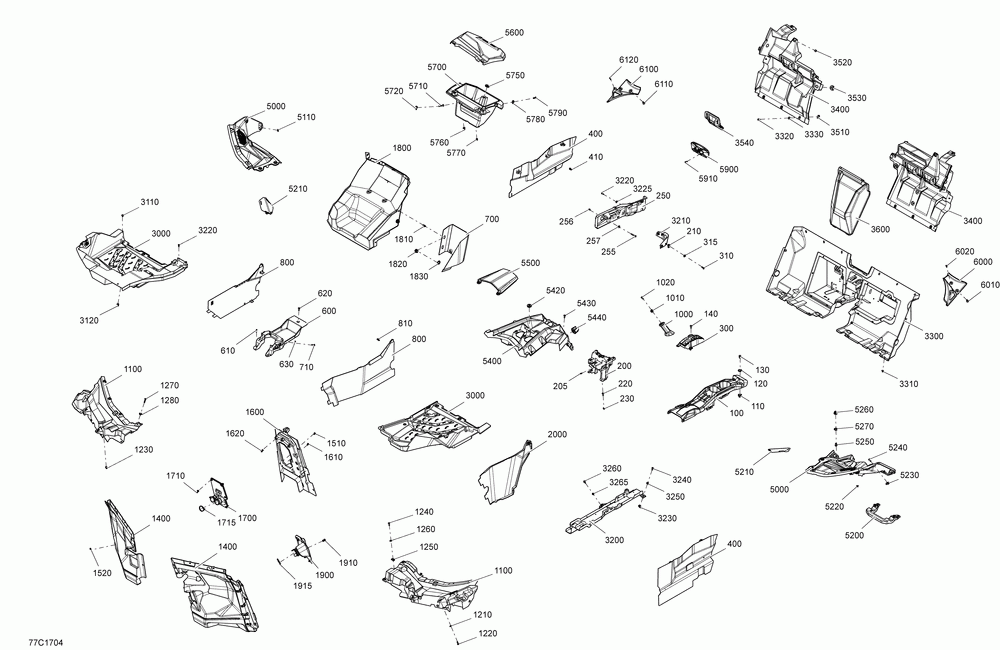

09- cab interior Оригинальные запчасти для мотовездеходов UTV Cam-am Maverick X3 (2017)

Пластиковая Заклепка

140

Torx Screw M6 X 20

200

707900459

Front Central Consol Support

205

Torx Screw K50 X 16 (5.000 Per Pack)

210

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

220

Torx Screw M6 X 20

230

293450274

Вставка

250

707900488

Shifter Gate Support

255

250000748

Torx-truss M/s M6 X 45

256

233261466

Hex. Flanged Elastic Nut M6 (8.000 Per Pack)

257

Flat Washer (10.000 Per Pack)

300

707900463

Lever Indicator

310

Torx Screw M6 X 20

315

Flat Washer (10.000 Per Pack)

400

707900396

Lh Lateral Dash Panel

400

707900397

Rh Lateral Dash Panel

410

705010721

Зажим

600

707900460

Front Top Consol

610

250000760

Винт

620

Torx Screw M6 X 20

630

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

700

707900473

Cover Central Console

710

Torx Screw M6 X 20

800

707900398

Lh Lateral Console Panel

800

707900399

Rh Lateral Console Panel

810

705010721

Зажим

1000

707900011

Passenger Handle

1010

707900048

Connector Tube

1020

Torx Screw M6 X 20

1100

707900337

Lh Front Upper Deflector

1100

707900338

Rh Front Upper Deflector

1210

Flat Washer (10.000 Per Pack)

1220

Torx Screw M6 X 20

1230

Поп Заклепки 3/16"

1240

Torx Screw M6 X 20

1250

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

1260

Flat Washer (10.000 Per Pack)

1270

250000842

Torx-truss M/s M6 X 30

1280

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

1400

707900341

Lh Front Bulkhead

1400

707900342

Rh Front Bulkhead

1510

Поп Заклепки 3/16"

1520

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

1600

707900407

Front Bulkhead Panel

1610

Поп Заклепки 3/16"

1620

Пластиковая Заклепка

1700

707900474

Rubber Deflector

1710

Пластиковая Заклепка

1715

414115200

Tie-rap 180 Mm (50.000 Per Pack)

1800

707900410

Rh Under Dash Panel

1810

Пластиковая Заклепка

1820

707900133

Вставка

1830

503189273

Шайба (отпускается по 25 шт)

1900

707900427

Cover Steering Column

1910

Пластиковая Заклепка

1915

293750008

Tie-rap 368 Mm (10.000 Per Pack)

2000

707900477

Side Panel Cover

3000

707900339

Front Left Floor

3000

707900340

Front Right Floor

3110

Поп Заклепки 3/16"

3120

Пластиковая Заклепка

3200

707900428

Rooting Support

3210

707900478

Кабельная подержка

3220

Torx Screw K50 X 16 (5.000 Per Pack)

3225

250200025

Washer M5 (10.000 Per Pack)

3230

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

3240

Torx Screw M6 X 20

3250

Flat Washer (10.000 Per Pack)

3260

Torx Screw M6 X 20

3265

293450274

Вставка

3300

707900345

Lower Rear Bulkhead

3310

Поп Заклепки 3/16"

3320

Torx Screw M6 X 20

3330

Flat Washer (10.000 Per Pack)

3400

707900440

Lh Upper Rear Bulkhead

3400

707900441

Rh Upper Rear Bulkhead

3510

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

3520

Поп Заклепки 3/16"

3530

705010718

Уплотнитель резиновый

3540

707900486

Bulkhead Cover

3600

707900442

Middle Upper Rear Bulkhead

5000

707900348

Rh Dash

5110

Flat Washer (10.000 Per Pack)

5200

707900479

Dash Support

5210

707900465

Lh Speaker Cover

5210

707900590

Rh Speaker Cover

5220

517302785

Clip (10.000 Per Pack)

5230

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

5240

Torx Screw M6 X 20

5250

Пластиковая Заклепка

5260

707900133

Вставка

5270

503189273

Шайба (отпускается по 25 шт)

5400

707900458

Central Dash

5420

517303756

Втулка

5430

Torx Screw M6 X 20

5440

707900598

Key Protector

5500

707900400

Dash Cover

5700

707900350

Glove Box

5710

250000868

Torx-truss M/s M6 X 50 (5.000 Per Pack)

5720

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

5750

517303756

Втулка

5760

Пластиковая Заклепка

5770

293830005

Rubber Bumper (5.000 Per Pack)

5780

Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)

5790

Torx Screw M6 X 20

5900

707900502

Central Mirror

5910

250000721

Torx-truss M/s Bzn Nylon Patch

6000

707900507

Warning Plate

6010

293150103

Заклепка 3/16

6020

Torx Screw K50 X 16 (5.000 Per Pack)

6100

707900574

Warning Support

6110

293150103

Заклепка 3/16

6120
