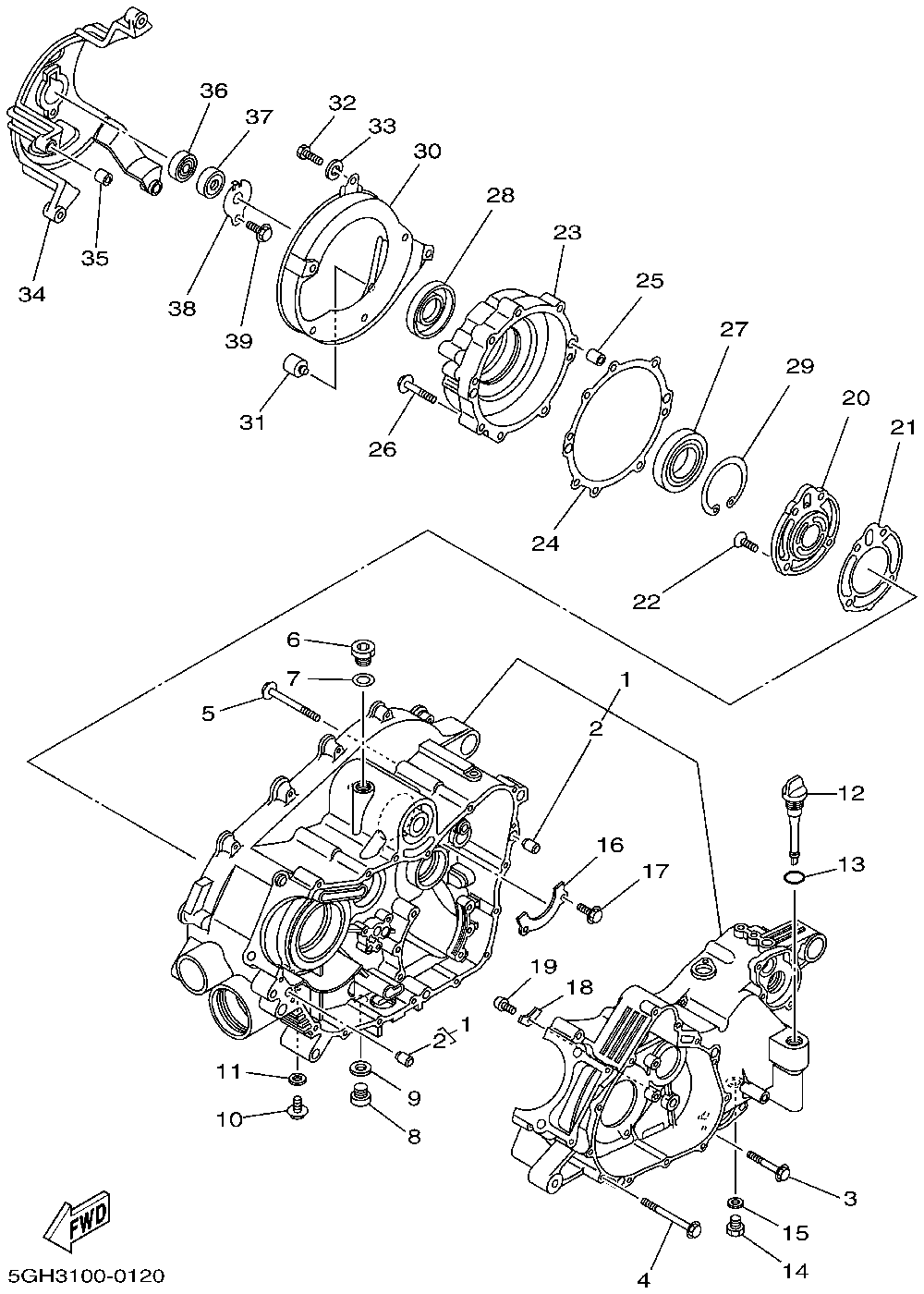

Картер

Yamaha Kodiak Automatic 4x4
Yamaha
#oem кодцена
1
5GH-15100-02-00
Crankcase Assy (usa)
2
99530-10014-00
Pin, Dowel (usa)
3
95027-06040-00
Bolt, Small Flange (usa)
4
95027-06065-00
Bolt, Small Flange (usa)
6
90340-18101-00
Plug, Straight Scrw (usa)
7
90201-186F1-00
Washer, Plate (usa)
8
90340-14046-00
Plug, Straight Scrw (usa)
9
214-11198-01-00
Gasket (usa)
10
95817-08012-00
Bolt, Flange (usa)
11
90201-08087-00
Washer, Plate (usa)
12
5GH-15362-00-00
Plug, Oil Level (usa)
13
93210-19522-00
O-ring (usa)
14
90340-14029-00
Plug, Straight Scrw (usa)
16
5GH-15388-00-00
Plate, Bearing Cover (usa)
17
95817-06012-00
Bolt, Flange (usa)
18
4XM-15383-00-00
Plate, Brng Cover (usa)
19
90151-06014-00
Screw, Countersunk (usa)
20
5GH-15414-00-00
Cover, Air Cleaner (usa)
21
5GH-15454-00-00
Gasket, Air Cleaner (usa)
22
98707-06020-00
Screw, Flat (usa)
23
5GH-15163-00-00
Housing, Bearing 1 (usa)
24
5GH-15463-00-00
Gasket, Carburetor (usa)
25
99510-10114-00
Pin, Dowel (usa)
27
93316-01003-00
Bearing (usa)
28
93102-32483-00
Oil Seal (usa)
29
93420-80066-00
Circlip (usa)
30
5GH-15333-00-00
Cover (usa)
31
5GH-15338-00-00
Damper, Engine Mount (usa)
32
97017-06016-00
Bolt, Hexagon (usa)
33
92907-06600-00
Washer, Plate (6ta) (usa)
34
5GH-15442-01-00
Housing, Bearing (usa)
35
91810-20001-00
Pin, Dowel (usa)
36
93306-20117-00
Bearing (usa)
37
93101-12168-00
Oil Seal (usa)
38
4WV-15381-00-00
Plate, Bearing Cover (usa)
39
95027-06012-00
Bolt, Flange (4my) (usa)
5
95027-06065-00
Bolt, Small Flange (usa)
11
90430-08119-00
Gasket (usa)
15
214-11198-01-00
Gasket (usa)
26
95027-06040-00
Bolt, Small Flange (usa)
