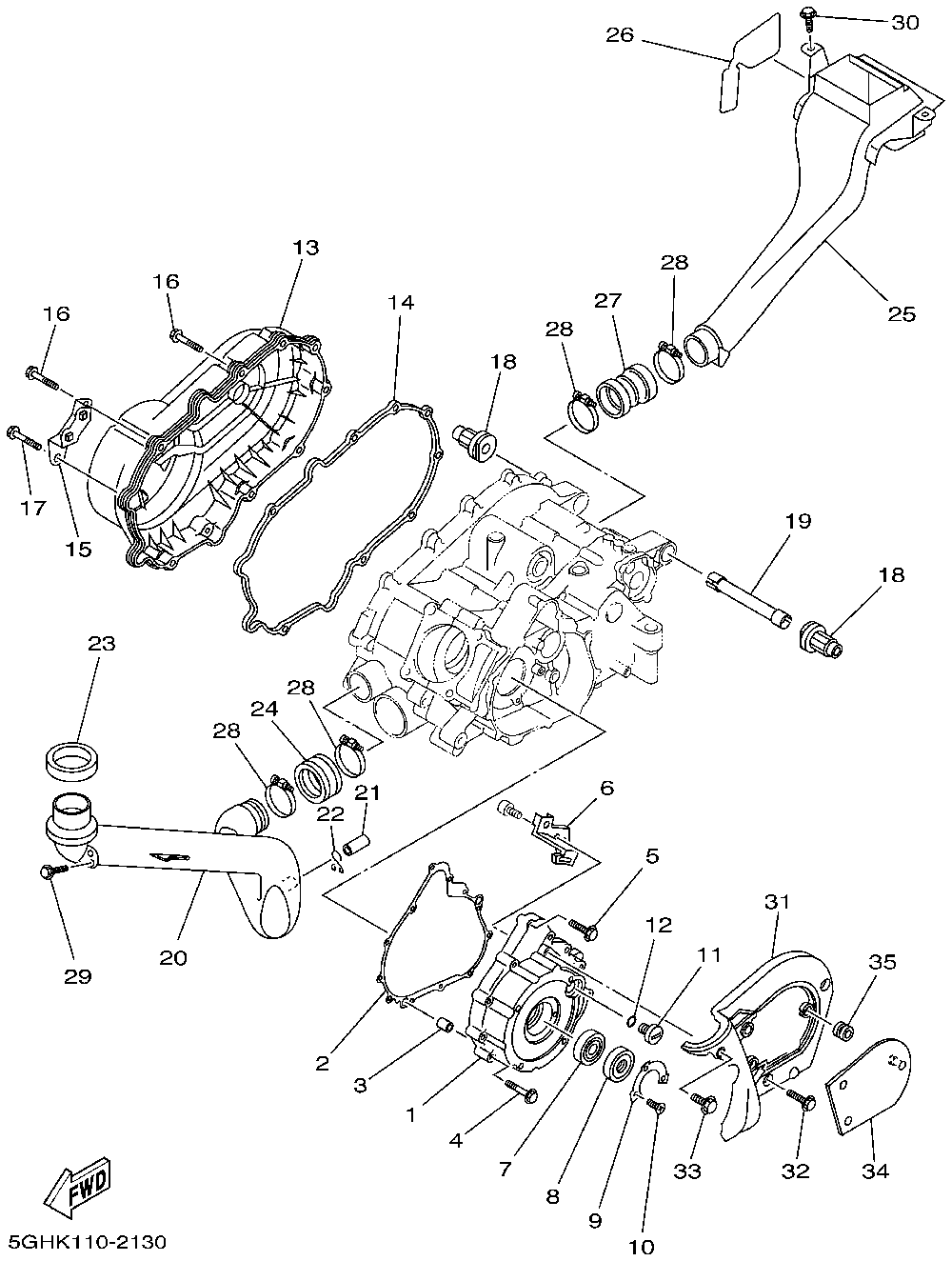

Крышка картера двигателя

Yamaha Kodiak Automatic 4x4
Yamaha
#oem кодцена
1
5GH-15411-01-00
Cover, Crankcase 1 (usa)
2
5GH-15451-00-00
Gasket, Crankcase (usa)
3
99510-10114-00
Pin, Dowel (usa)
4
95027-06040-00
Bolt, Small Flange (usa)
5
95027-06030-00
Bolt, Small Flange (usa)
6
5GH-15113-00-00
Plate (usa)
7
93306-07801-00
Bearing (usa)
8
93102-28476-00
Oil Seal, Sw-type (usa)
9
1UY-15719-00-00
Washer, Thrust (usa)
10
90151-05023-00
Screw, Countersunk (usa)
11
90340-14117-00
Plug, Straight Scrw (usa)
12
93210-14369-00
O-ring (usa)
13
5GH-15431-00-00
Cover, Crankcase 3 (usa)
14
5GH-15379-00-00
Seal, Crankcase (usa)
15
5GH-15199-00-00
Bracket (usa)
16
95817-06035-00
Bolt, Flange (usa)
17
95817-06045-00
Bolt, Flange (usa)
18
5GH-15336-00-00
Damper, Engine Mount (usa)
19
5GH-15317-00-00
Spacer, Engine Mount (usa)
20
5GH-15471-01-00
Duct, Air (usa)
21
5BF-1443E-00-00
Pipe, Drain (usa)
22
90467-15M14-00
Clip, Scissor (usa)
23
5GH-15434-00-00
Seal, Cleaner Cover (usa)
24
5GH-15472-01-00
Seal, Air Duct (usa)
25
5GH-15473-00-00
Duct, Air (usa)
26
5GH-15494-00-00
Seal, Protector (usa)
27
5GH-15474-00-00
Seal, Air Duct (usa)
28
90450-64002-00
Hose Clamp Assy (usa)
29
95817-06014-00
Bolt, Flange (usa)
30
90119-06152-00
Bolt, With Washer (usa)
31
5GH-15423-00-00
Cover 2 (usa)
32
95027-06014-00
Bolt, Flange (usa)
33
95027-06035-00
Bolt, Small Flange (usa)
34
5GH-15413-00-00
Cover, Carburetor (usa)
35
90480-13014-00
Grommet (usa)
28
90450-64004-00
Hose Clamp Assy (usa)
