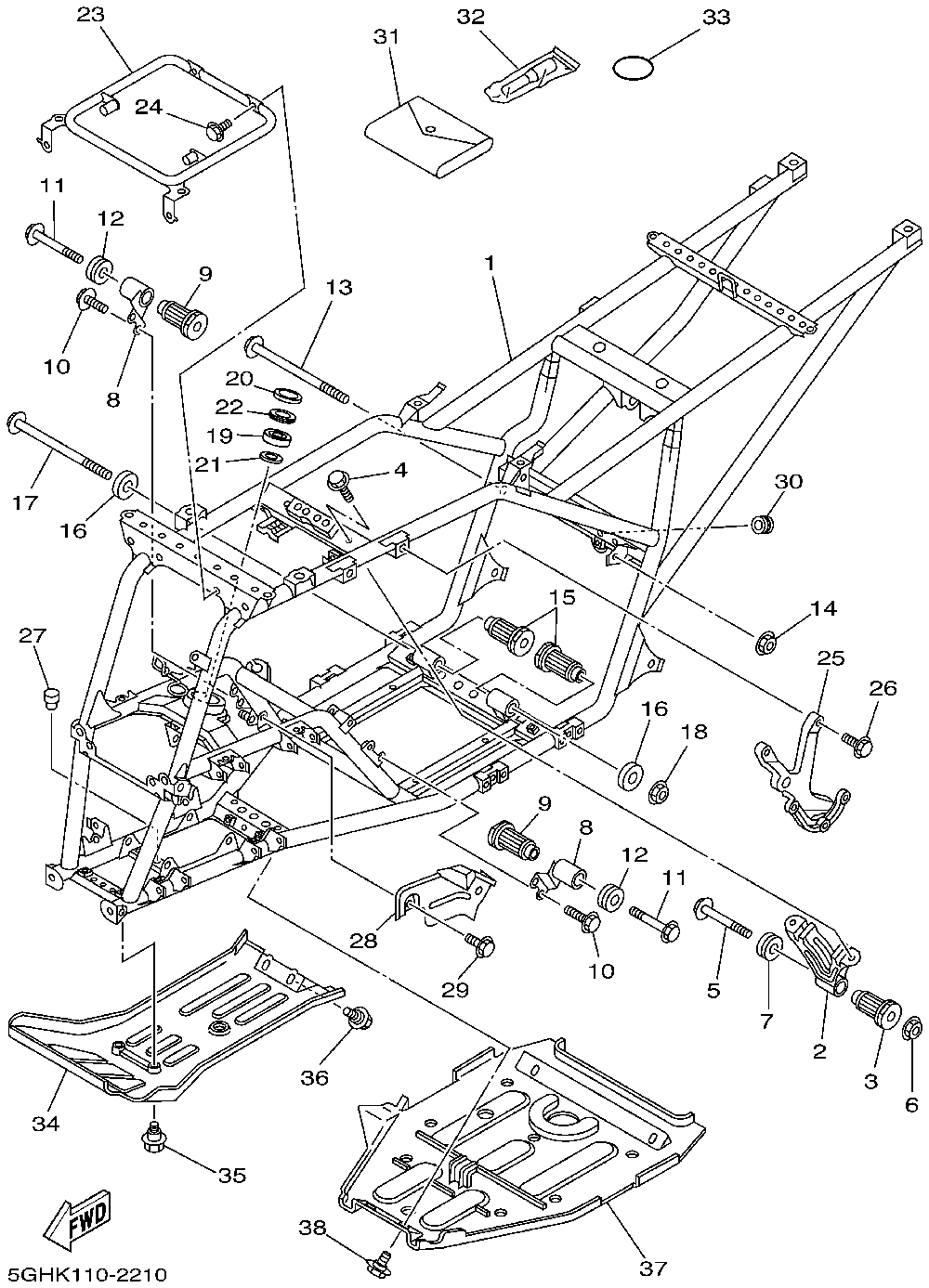

Рама

Yamaha Kodiak Automatic 4x4
Yamaha
#oem кодцена
1
5GH-21110-02-00
Frame Comp. (usa)
2
5GH-21315-00-00
Stay, Engine 2 (usa)
3
5GH-15336-00-00
Damper, Engine Mount (usa)
4
95817-08012-00
Bolt, Flange (usa)
5
95817-10110-00
Bolt, Flange (usa)
6
95607-10200-00
Nut, Self-locking (usa)
7
5GH-21486-00-00
Damper 2 (usa)
8
5GH-21316-00-00
Stay, Engine 3 (usa)
11
95817-10080-00
Bolt, Flange (usa)
13
90105-10055-00
Bolt, Washer Based (usa)
16
5GH-21488-00-00
Damper (usa)
19
93306-20348-00
Bearing (usa)
20
93102-25081-00
Oil Seal, Sd-type (usa)
21
93102-25099-00
Oil Seal, Sd-type (usa)
22
5GT-23872-00-00
Holder, Bearing (usa)
23
5GH-21513-00-00
Stay, Fender 1 (usa)
24
95817-06012-00
Bolt, Flange (usa)
25
5GH-21585-00-00
Arm (usa)
26
95817-08020-00
Bolt, Flange(8ab) (usa)
27
4N0-27114-00-00
Stopper, Main Stand (usa)
28
5GH-22825-00-00
Protector 1 (usa)
29
95817-06010-00
Bolt, Flange (usa)
30
90480-10517-00
Grommet (usa)
31
4WV-28100-00-00
Tool Kit (usa)
32
1NV-2811A-01-00
Gauge, Air (usa)
33
93210-64297-00
O-ring (usa)
34
5GH-2147A-00-00
Guard, Engine 1 (usa)
35
90109-063F5-00
Bolt (usa)
36
90109-063F1-00
Bolt (usa)
37
5GH-2147E-00-00
Guard, Engine 2 (usa)
22
2GU-23872-00-00
Holder, Bearing (usa)
9
5GH-15336-00-00
Damper, Engine Mount (usa)
10
95817-08012-00
Bolt, Flange (usa)
12
5GH-21486-00-00
Damper 2 (usa)
14
95607-10200-00
Nut, Self-locking (usa)
15
5GH-15336-00-00
Damper, Engine Mount (usa)
17
90105-10055-00
Bolt, Washer Based (usa)
18
95607-10200-00
Nut, Self-locking (usa)
38
90109-063F1-00
Bolt (usa)
