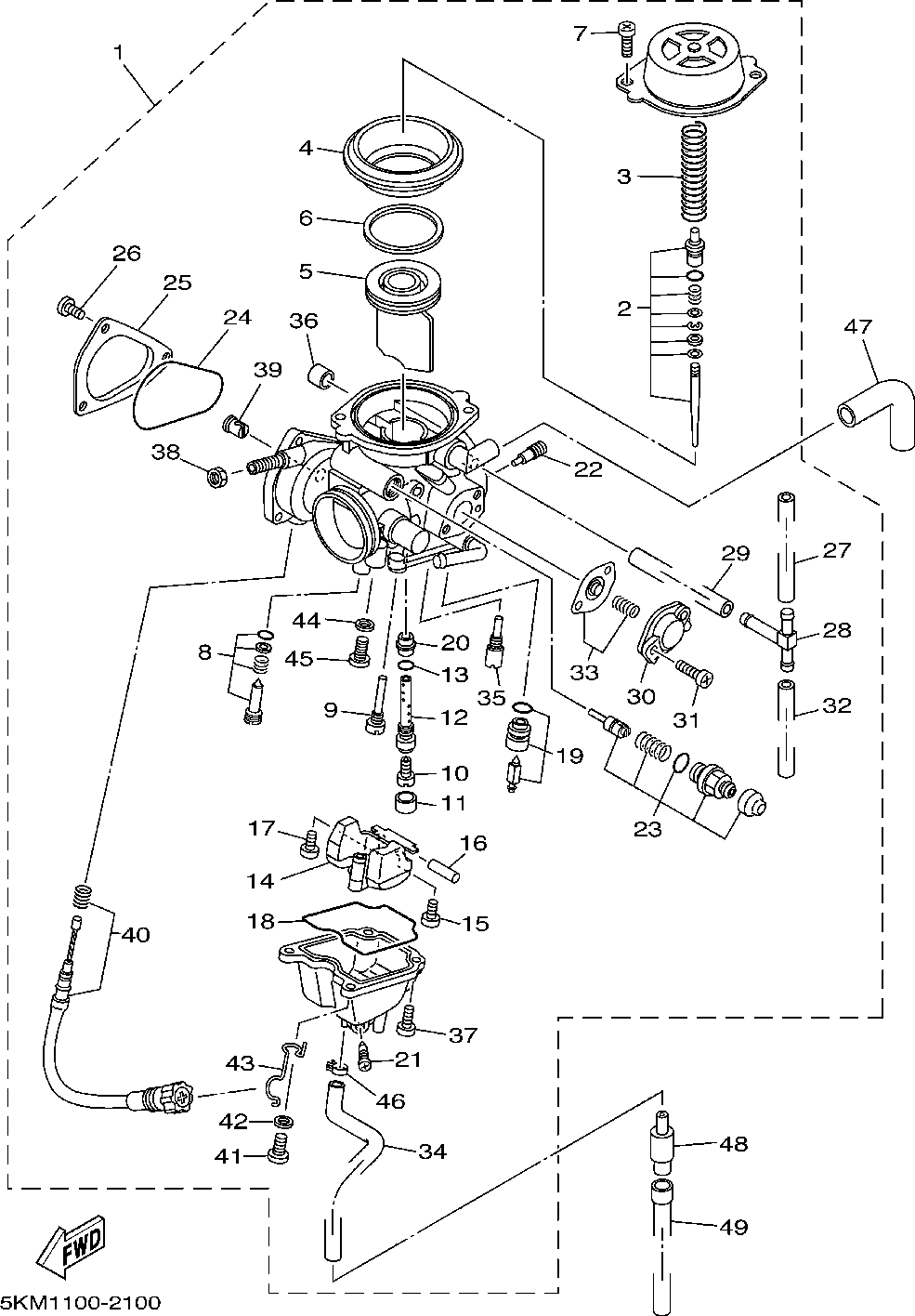

Карбюратор

Yamaha GRIZZLY-YFM660FP
Yamaha
#oem кодцена
1
5KM-14901-00-00
Carburetor Assy 1 (usa)
2
5KM-1490J-00-00
Needle Set (usa)
3
4KM-14933-00-00
Spring, Diaphragm (usa)
4
5KM-24411-00-00
Diaphragm (usa)
5
5KM-14912-00-00
Valve, Throttle (usa)
6
5KM-14918-00-00
Ring (usa)
7
98507-05008-00
Screw, Panhead(jn2 (usa)
8
5EA-14105-00-00
Pilot Screw Set (usa)
9
3G2-14231-11-00
Jet, Main #55 (usa)
10
3G2-1423E-61-00
Jet, Main #153.8 (usa)
11
5GH-14918-00-00
Ring (usa)
12
5GH-14261-00-00
Holder (usa)
13
583-14561-00-00
O-ring (usa)
14
5DM-14985-00-00
Float (usa)
15
98507-04008-00
Screw, Pan Head (usa)
16
127-14186-00-00
Pin, Float (usa)
17
1FN-14565-00-00
Screw (usa)
18
5DM-14561-00-00
O-ring (usa)
19
2C6-14190-30-00
Needle Valve Assy (usa)
20
5DM-14141-30-00
Nozzle, Main (usa)
21
12R-14191-00-00
Plug, Drain (usa)
22
1HX-14231-12-00
Jet, Starter (usa)
23
5KM-1410A-00-00
Starter Set (usa)
24
4WV-14147-10-00
O-ring (usa)
25
4WV-14293-00-00
Cover 1 (usa)
27
5KM-14197-20-00
Pipe (usa)
28
28V-14988-00-00
Pipe, Starter Con (usa)
31
97607-04114-00
Screw, W/washer (usa)
32
5KM-14197-10-00
Pipe (usa)
33
5KM-1490H-00-00
Diaphragm Set 5 (usa)
34
5KM-14193-00-00
Pipe (usa)
35
4KM-14142-40-00
Jet, Pilot(#40) (usa)
36
5KM-14968-00-00
Cap (usa)
37
98507-04010-00
Screw, Panhead (usa)
38
522-14161-00-00
Nut, Cable Adjusting (usa)
39
1UY-14155-00-00
Guide, Cable End (usa)
40
5KM-14103-00-00
Throttle Screw Set (usa)
41
98507-04014-00
Screw, Pan Hd N15 (usa)
42
92907-04600-00
Washer (jf2) (usa)
43
5KM-14937-00-00
Clip (usa)
44
256-14956-01-00
Washer (usa)
45
3DM-14216-00-00
Screw (usa)
46
90467-06194-00
Clip (usa)
47
4WV-14349-00-00
Pipe (usa)
48
24W-14193-00-00
Pipe (usa)
49
91A21-07020-00
Tube, Flexible (3nv) (usa)
29
3LF-14197-00-00
Pipe (usa)
30
5AP-14280-00-00
Cover, Carburetor (usa)
