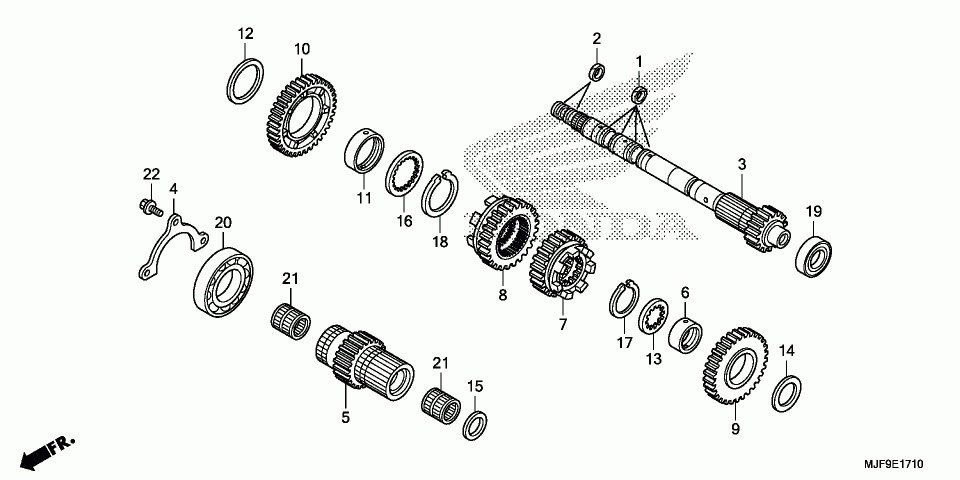

Transmission (mainshaft)

Honda CTX700D
Honda
#oem кодцена
1
22814-PFL-003
RING, SEALING (26MM)
2
22814-RGC-003
SEAL, RING (21.2MM)
3
23210-MGS-D20
MAINSHAFT (INNER) (15T)
4
23212-MGS-D30
PLATE, MAINSHAFT BEARING SETTING
5
23231-MGS-D20
MAINSHAFT (OUTER) (21T)
6
23442-MS2-610
Втулка (30x11.2)
7
23451-MGS-D20
GEAR, MAINSHAFT THIRD (22T)
8
23471-MGS-D20
GEAR, MAINSHAFT FOURTH (25T)
9
23491-MGS-D20
GEAR, MAINSHAFT FIFTH (30T)
10
23511-MGS-D20
GEAR, MAINSHAFT SIXTH (37T)
11
23512-MGS-D20
COLLAR (40X43X10)
12
90411-MGE-D00
WASHER (40.2X51X1)
13
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
14
90458-MAT-E00
WASHER, THRUST (30.5MM)
15
90463-MGS-D20
WASHER (26X34X2)
16
90493-MGE-D00
WASHER, SPLINE (40MM)
17
90604-MM5-000
Стопорное кольцо (30mm)
18
90605-MGE-D00
CIRCLIP (40MM)
19
91006-MGS-D31
BEARING, RADIAL BALL (6204U)
20
91023-MGS-D21
BEARING, RADIAL BALL (6008)
21
91102-KR0-003
BEARING, NEEDLE (26X31X24) (NTN)
22
95701-06014-00
Болт (6x14)
