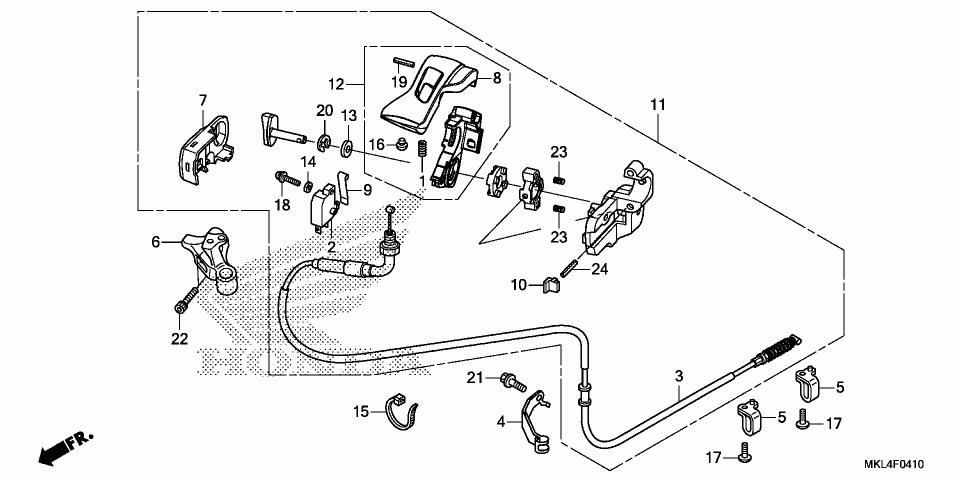

Parking brake lever

Honda NC750XD

Parking brake lever

#

oem код

название

цена

1

SPRING, BALL SETTING

SPRING, BALL SETTING

2

SWITCH ASSY., FR. STOP

SWITCH ASSY., FR. STOP

3

CABLE, PARKING BRAKE

CABLE, PARKING BRAKE

4

CLAMP, PARKING BRAKE

CLAMP, PARKING BRAKE

5

GUIDE, PARKING BRAKE

GUIDE, PARKING BRAKE

6

HOLDER (UPPER)

HOLDER (UPPER)

7

COVER, HOLDER

COVER, HOLDER

8

LEVER, PARKING TOP

LEVER, PARKING TOP

9

SPRING, SWITCH

SPRING, SWITCH

10

CAP, HOLDER (LOWER)

CAP, HOLDER (LOWER)

11

LEVER ASSY., PARKING

LEVER ASSY., PARKING

12

LEVER, PARKING

LEVER, PARKING

13

Шайба (10.2mm)

Шайба (10.2mm)

14

WASHER, PLAIN (4X8)

WASHER, PLAIN (4X8)

15

BAND, WIRE (165MM) (BLACK)

BAND, WIRE (165MM) (BLACK)

16

PLUG, CHANGE REINFORCEMENT

PLUG, CHANGE REINFORCEMENT

17

Винт (5x16)

Винт (5x16)

18

Винт (4x14)

Винт (4x14)

19

PIN, SPRING (3X28)

PIN, SPRING (3X28)

20

E-RING (9MM)

E-RING (9MM)

21

Болт (6x14)

Болт (6x14)

22

Болт (6x20)

Болт (6x20)

23

Пружина

Пружина

24

PIN, SPRING (3X22)

PIN, SPRING (3X22)
