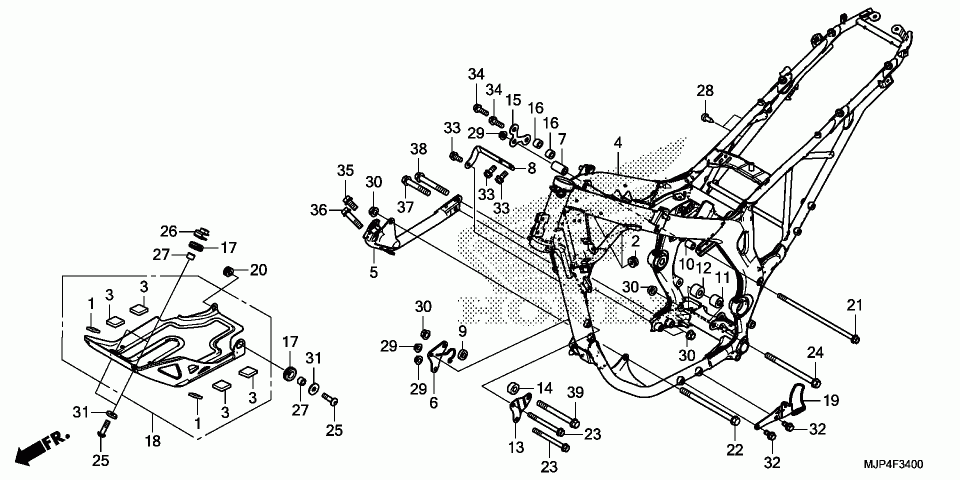

Рама

Honda CRF1000D
Honda
#oem кодцена
1
17225-MAH-610
RUBBER B, CUSHION
2
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
3
17515-KFB-840
RUBBER, TANK GUARD
4
50100-MJP-G50ZA
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
5
50170-MJP-G50ZA
PIPE, R. (LOWER) *NH303M* (MAT AXIS GRAY METALLIC)
6
50351-MJP-G50ZA
PLATE, R. FR. ENGINE HANGER *NH167MU* (IRON NAIL SILVER METALLIC-U)
7
50352-MJP-G50
COLLAR C, R. ENGINE HANGER
8
50353-MJP-G50
PLATE, FR. HEAD ENGINE HANGER
9
50354-MJP-G50
COLLAR A, ENGINE HANGER
10
50355-MJP-G50
COLLAR B, ENGINE HANGER
11
50356-MJP-G50
COLLAR D, ENGINE HANGER
12
50357-MJP-G50
COLLAR F, ENGINE HANGER
13
50358-MJP-G50ZA
PLATE, L. FR. ENGINE HANGER *NH167MU* (IRON NAIL SILVER METALLIC-U)
14
50359-MJP-G50
COLLAR A, L. ENGINE HANGER
15
50361-MJP-G50ZA
PLATE, R. RR. ENGINE HANGER (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
16
50362-MJP-G50
COLLAR E, ENGINE HANGER
17
52491-MCA-000
GROMMET, MOTOR MOUNTING
18
64440-MJP-G60
PLATE, SKID
19
64450-MJP-G50
BRACKET, SKID PLATE
20
80101-283-000
RUBBER, RR. FENDER CUSHION
21
90102-MJP-G50
BOLT, FLANGE (8X217)
22
90103-MY1-000
BOLT, FLANGE (10X153)
23
90113-KT0-670
BOLT, FLANGE (8X87)
24
90116-KW3-000
BOLT, FLANGE (10X138)
25
90128-KL4-000
BOLT, SPROCKET FIXING
26
90321-MJP-G60
NUT, CLIP (8MM)
27
90512-MJP-G60
COLLAR (8.5X14X9)
28
90841-001-000
SCREW, RIVET
29
94050-08080
Гайка
30
94050-10080
Гайка(10mm)
31
94101-08000
Шайба (8mm)
32
96300-08016-07
Болт (8x16)
33
96300-08018-08
Болт (8x18)
34
96300-08025-08
Болт (8x25)
35
96300-10020-08
BOLT, FLANGE (10X20)
36
96300-10040-08
Болт (10x40)
37
96300-10060-08
Болт (10x60)
38
96300-10075-08
BOLT, FLANGE (10X75)
39
96400-10100-08
BOLT, FLANGE (10X100)
