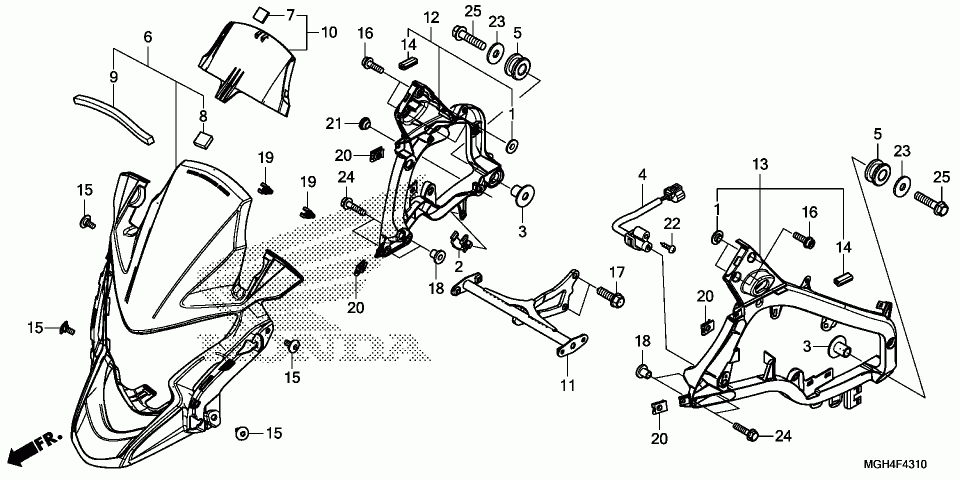

Верхний обтекатель

Honda VFR1200XD
Honda
#oem кодцена
1
11385-MJF-A00
Манжета
2
16731-ZE2-003
Зажим
3
18327-KAE-000
COLLAR, RR. CHAMBER (8.5X15)
4
37880-MGH-641
SENSOR, TEMPERATURE
5
50623-KFB-000
RUBBER, STEP MOUNTING
6
64160-MGH-H20
COWL (UPPER)
7
64165-MGH-640
FASTENER B, DUAL LOCK (20X20)
8
64165-MJF-A30
FASTENER B, DUAL LOCK (20X20)
9
64167-MGH-640
MAT, COWL (UPPER)
10
64170-MGH-H20
VISOR (INNER)
11
64500-MGH-640
STAY, COWL (UPPER)
12
64600-MGH-H20
STAY, R. COWL SUPPORT (UPPER)
13
64650-MGH-H20
STAY, L. COWL SUPPORT (UPPER)
14
77212-MFJ-D00
Резинка
15
90106-MBY-000
SCREW, SPECIAL (5X12)
16
90116-MGH-H20
BOLT, FLANGE SOCKET (6X20)
17
90120-MEE-000
Болт (8x28)
18
90509-750-000
COLLAR, FUEL TANK
19
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
20
90677-KAN-961
Гайка
21
90680-692-000
PLUG, HOLE (10MM) (NA USE ALT:90852-SA5-000)
22
93913-24280
SCREW, TAPPING (4X12) (PO)
23
94103-08000
Шайба (8mm)
24
96300-06025-00
Болт (6x25)
25
96300-08035-00
Болт (8x35)
