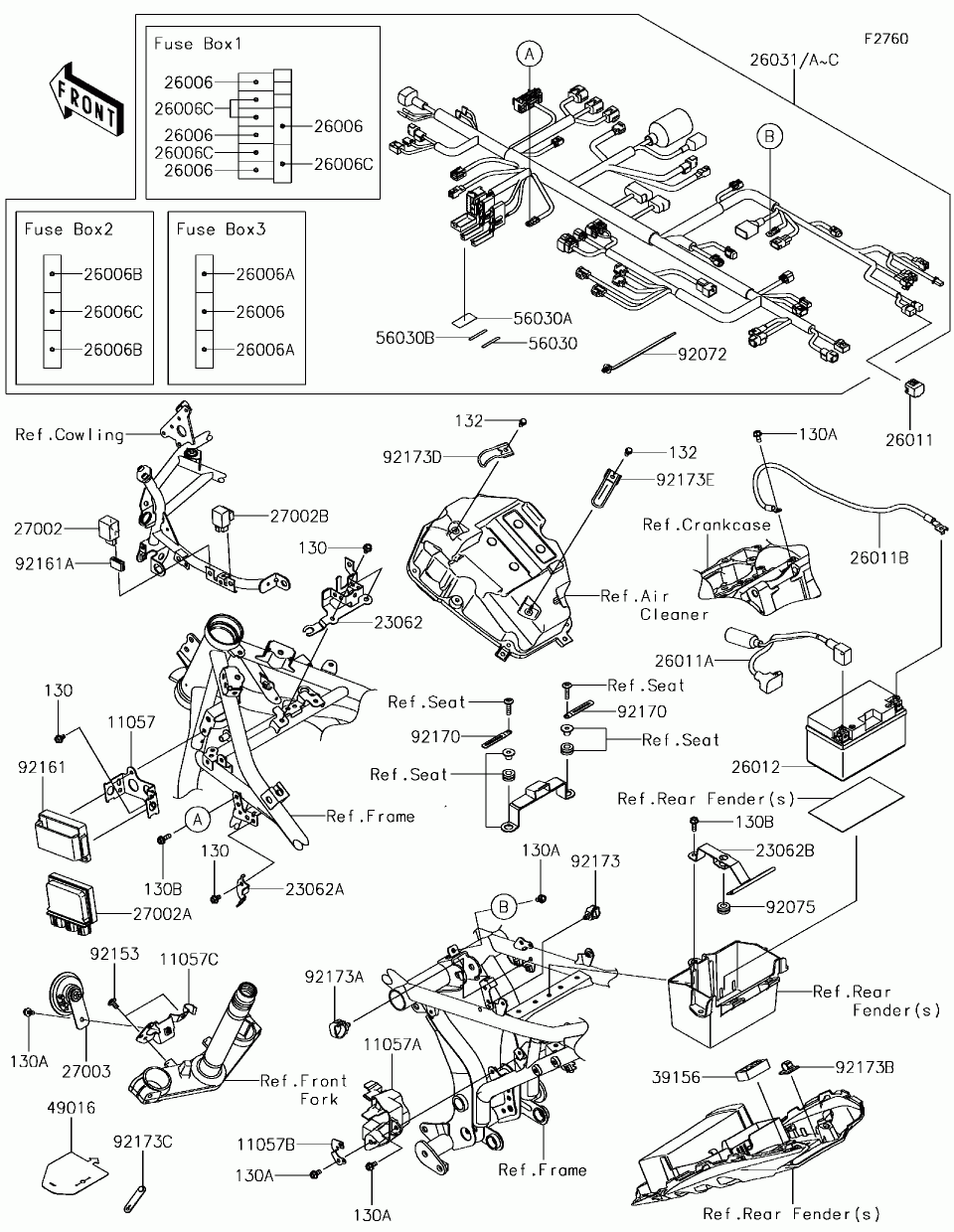

Электрика

Kawasaki Ninja 650 (EX650KHFA)
Kawasaki
#oem кодцена
130
130BA0610
BOLT-FLANGED,6X10
130A
130BA0612
BOLT-FLANGED,6X12
130B
130BA0618
BOLT-FLANGED,6X18
132
132BA0610
BOLT-FLANGED-SMALL,6X10
92173B
92173-1055
CLAMP,DRAIN
92173C
92173-1229
CLAMP,RUBBER PLATE
92173D
92173-1586
CLAMP,A/C CASE,FR
92173E
92173-1587
CLAMP,A/C CASE,RR
11057
11057-0122
BRACKET,RELAY BOX
11057A
11057-0137
BRACKET,MAGNETIC SW.
11057B
11057-0138
BRACKET,COUPLER
11057C
11057-0184
BRACKET,HORN
23062
23062-0875
BRACKET-COMP,VD SENSOR
23062A
23062-0882
BRACKET-COMP,FUSE BOX
23062B
23062-0899
BRACKET-COMP,BATTERY
26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
26006B
26006-1077
FUSE,MINI BLADE,5A,TAN
26006C
26006-1078
FUSE,MINI BLADE,10A,RED
26011
26011-0275
WIRE-LEAD,CONNECTOR COVER
26011A
26011-0980
WIRE-LEAD,BATTERY(+)
26011B
26011-0981
WIRE-LEAD,BATTERY(-)
26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
26031
26031-2269
HARNESS,MAIN
26031B
26031-2330
HARNESS,MAIN
26031C
26031-2331
HARNESS,MAIN
27002
27002-0006
RELAY-ASSY,SIGNAL LAMP
27002A
27002-0025
RELAY-ASSY,BOX
27002B
27002-1062
Реле
27003
27003-0065
Сигнал
39156
39156-2136
PAD,CONNECTOR
49016
49016-0645
COVER-SEAL
56030
56030-0400
LABEL,FUSE BOX3
56030A
56030-0705
LABEL,FUSE BOX1
56030B
56030-0879
LABEL,FUSE BOX2
92072
92072-1414
BAND,OS170-FT7(BLACK)
92075
92075-1880
Демпфер
92153
92153-1948
BOLT,SOCKET,6X12
92161
92161-0203
DAMPER,RELAY BOX
92161A
92161-1443
DAMPER,15X25X8.5
92170
92170-1514
Зажим
92173
92173-0736
CLAMP,12MM DIA.
92173A
92173-0861
Зажим
