Электрика

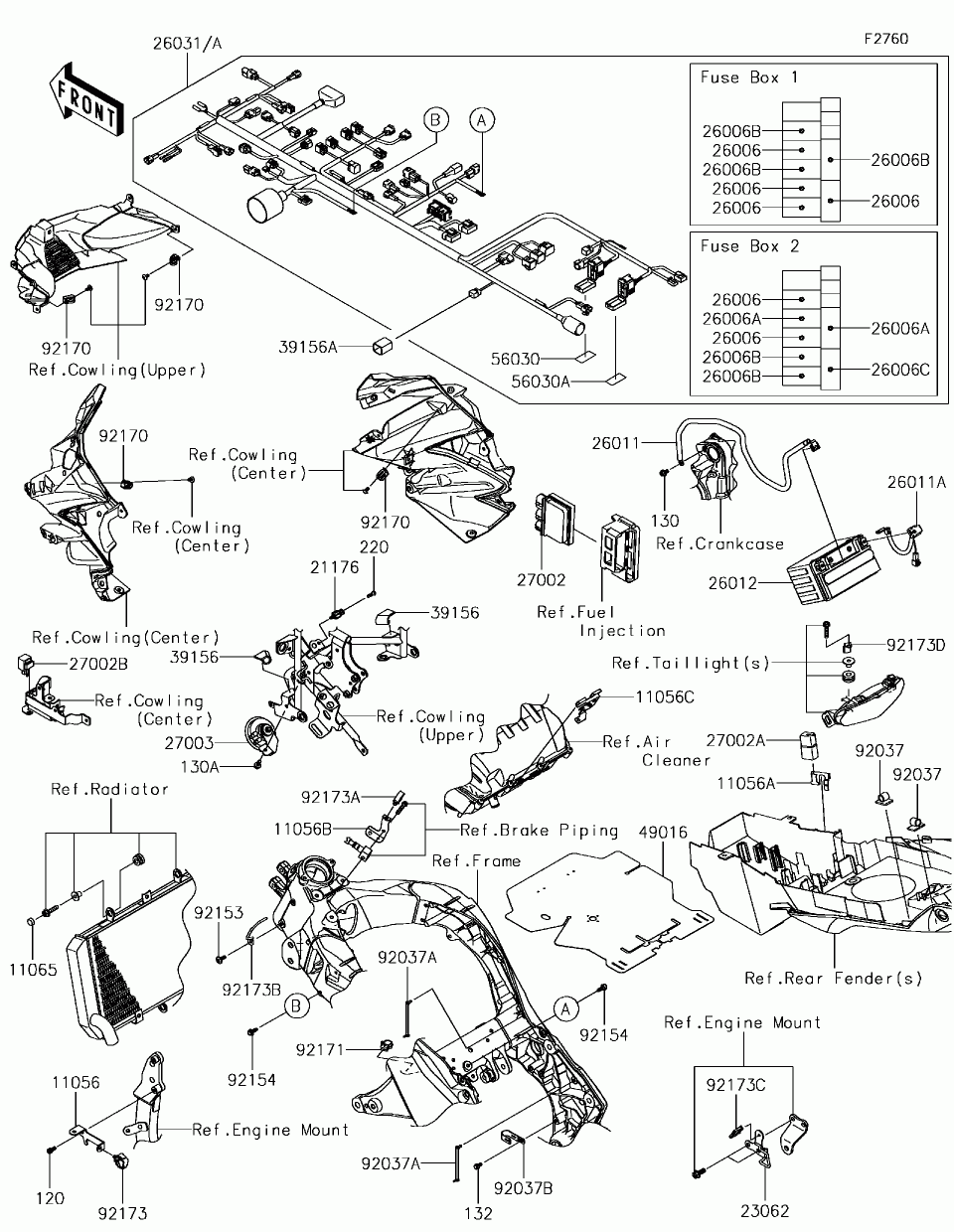

Kawasaki VERSYS 1000 (KLZ1000BHF)
Kawasaki
#oem кодцена
11056
11056-1478
BRACKET,ENGINE
11056A
11056-1735
BRACKET,RELAY
11056B
11056-4165
BRACKET,WHEEL SPEED SENSOR
11056C
11056-4375
BRACKET,AIR BOX
11065
11065-0752
CAP,BOLT
120
120CA0612
BOLT-SOCKET,6X12
21176
21176-0048
SENSOR,AIR TEMPERATURE
23062
23062-0811
BRACKET-COMP,CABLE GUIDE
26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
26006B
26006-0055
FUSE,MINI BLADE,7.5A,BROWN
26006C
26006-1080
FUSE,MINI BLADE,30A,GREEN
26011
26011-0737
WIRE-LEAD,BATTERY(-)
26011A
26011-0758
WIRE-LEAD,BATTERY(+)
26012
26012-0838
BATTERY,YTX9-BS,12V 8AH
26031
26031-2198
HARNESS,MAIN
26031A
26031-2199
HARNESS,MAIN
27002
27002-0025
RELAY-ASSY,BOX
27002A
27002-1086
Реле
27002B
27002-1097
RELAY-ASSY,SIGNAL LAMP
27003
27003-0109
Сигнал
39156
39156-1851
PAD,21X33X3
39156A
39156-1886
PAD,DIAG. CONNECTOR
49016
49016-0625
COVER-SEAL
56030
56030-0830
LABEL,FUSE BOX1
56030A
56030-0878
LABEL,FUSE BOX2
92037
92037-1794
CLAMP,TUBE
92037A
92037-1903
CLAMP,SPEED,L=80.5
92037B
92037-2014
CLAMP,CABLE,STEEL SHEET
92153
92153-1526
BOLT,SOCKET,6X16
92154
92154-0551
BOLT,FLANGED,6X16
92170
92170-1514
Зажим
92171
92171-1722
CLAMP,EDGE CLIP
92173
92173-0861
Зажим
92173A
92173-0868
CLAMP,HOLDER CLIP
92173B
92173-1199
CLAMP,IRON WIRE
92173C
92173-1242
CLAMP,CABLE CLIP
92173D
92173-1729
Зажим
130
130BA0610
BOLT-FLANGED,6X10
130A
130BA0614
BOLT-FLANGED,6X14
132
132BA0610
BOLT-FLANGED-SMALL,6X10
220
220AB0516
SCREW-PAN-CROS,5X16
