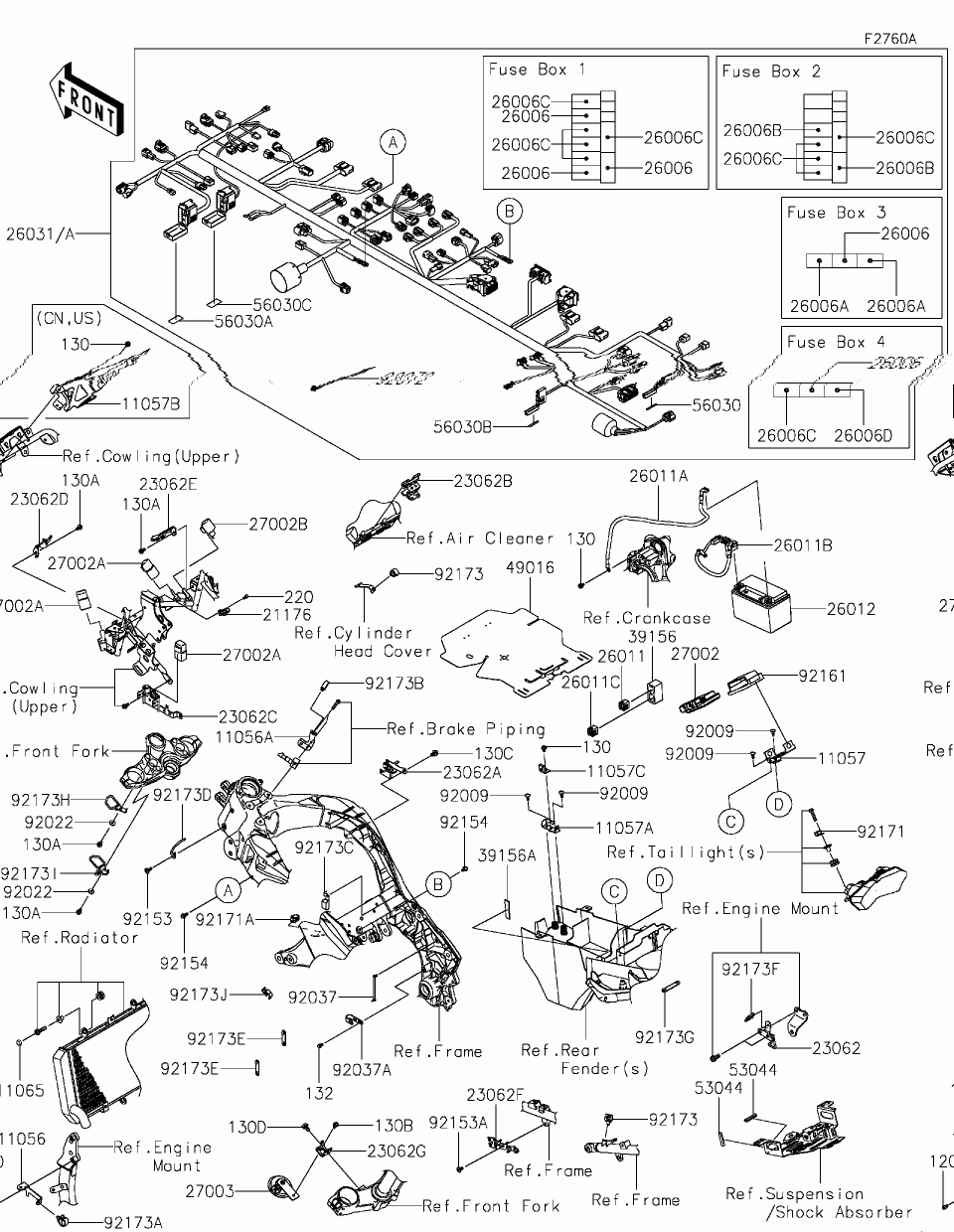

Chassis electrical equipment(dlf)

Kawasaki Versys 1000 SE LT+

Chassis electrical equipment(dlf)

#

oem код

название

цена

11056

BRACKET,ENGINE

BRACKET,ENGINE

11056A

BRACKET,WHEEL SPEED SENSOR

BRACKET,WHEEL SPEED SENSOR

11057

BRACKET,RELAY BOX

BRACKET,RELAY BOX

11057A

BRACKET,RR FENDER

BRACKET,RR FENDER

11057B

BRACKET,CANISTER

BRACKET,CANISTER

11057C

BRACKET,WATERPROOF JOINT

BRACKET,WATERPROOF JOINT

11065

CAP,BOLT

CAP,BOLT

120

BOLT-SOCKET,6X12

BOLT-SOCKET,6X12

130

BOLT-FLANGED,6X10

BOLT-FLANGED,6X10

130A

BOLT-FLANGED,6X12

BOLT-FLANGED,6X12

130B

BOLT-FLANGED,6X14

BOLT-FLANGED,6X14

130C

BOLT-FLANGED,8X12

BOLT-FLANGED,8X12

130D

BOLT-FLANGED,8X14

BOLT-FLANGED,8X14

132

BOLT-FLANGED-SMALL,6X10

BOLT-FLANGED-SMALL,6X10

21176

SENSOR,AIR TEMPERATURE

SENSOR,AIR TEMPERATURE

220

SCREW-PAN-CROS,5X16

SCREW-PAN-CROS,5X16

23062

BRACKET-COMP,CABLE GUIDE

BRACKET-COMP,CABLE GUIDE

23062A

BRACKET-COMP,A/C,RH

BRACKET-COMP,A/C,RH

23062B

BRACKET-COMP,A/C,RR

BRACKET-COMP,A/C,RR

23062C

BRACKET-COMP,IMMOBI AMP.

BRACKET-COMP,IMMOBI AMP.

23062D

BRACKET-COMP,DC PUT

BRACKET-COMP,DC PUT

23062E

BRACKET-COMP,FOG SWITCH

BRACKET-COMP,FOG SWITCH

23062F

BRACKET-COMP,KECS HARNESS

BRACKET-COMP,KECS HARNESS

23062G

BRACKET-COMP,HORN

BRACKET-COMP,HORN

26006

FUSE,MINI BLADE,15A,BLUE

FUSE,MINI BLADE,15A,BLUE

26006A

FUSE,MINI BLADE,25A,NATURAL

FUSE,MINI BLADE,25A,NATURAL

26006B

FUSE,MINI BLADE,7.5A,BROWN

FUSE,MINI BLADE,7.5A,BROWN

26006C

FUSE,MINI BLADE,10A,RED

FUSE,MINI BLADE,10A,RED

26006D

FUSE,MINI BLADE,30A,GREEN

FUSE,MINI BLADE,30A,GREEN

26011

WIRE-LEAD,CONNECTOR COVER

WIRE-LEAD,CONNECTOR COVER

26011A

WIRE-LEAD,BATTERY(-)

WIRE-LEAD,BATTERY(-)

26011B

WIRE-LEAD,BATTERY(+)

WIRE-LEAD,BATTERY(+)

26011C

WIRE-LEAD,DIAG CONNECTOR

WIRE-LEAD,DIAG CONNECTOR

26012

BATTERY,YTX9-BS,12V 8AH

BATTERY,YTX9-BS,12V 8AH

26031

HARNESS,MAIN

HARNESS,MAIN

26031A

HARNESS,MAIN

HARNESS,MAIN

27002

Реле

Реле

27002A

Реле

Реле

27002B

RELAY-ASSY,SIGNAL LAMP

RELAY-ASSY,SIGNAL LAMP

27003

Сигнал

Сигнал

39156

PAD,DIAG CONNECTOR

PAD,DIAG CONNECTOR

39156A

PAD,15X60X2

PAD,15X60X2

49016

COVER-SEAL

COVER-SEAL

53044

TRIM,L=40

TRIM,L=40

56030

LABEL,FUSE BOX3

LABEL,FUSE BOX3

56030A

LABEL,FUSE BOX1

LABEL,FUSE BOX1

56030B

LABEL,FUSE BOX4

LABEL,FUSE BOX4

56030C

LABEL,FUSE BOX2

LABEL,FUSE BOX2

92009

SCREW,TAPPING

SCREW,TAPPING

92022

Шайба

Шайба

92037

CLAMP,SPEED,L=80.5

CLAMP,SPEED,L=80.5

92037A

CLAMP,CABLE,STEEL SHEET

CLAMP,CABLE,STEEL SHEET

92072

BAND,OS170-FT7(BLACK)

BAND,OS170-FT7(BLACK)

92153

BOLT,SOCKET,6X16

BOLT,SOCKET,6X16

92153A

BOLT,SOCKET,6X12

BOLT,SOCKET,6X12

92154

BOLT,FLANGED,6X16

BOLT,FLANGED,6X16

92161

DAMPER,RELAY BOX

DAMPER,RELAY BOX

92171

Зажим

Зажим

92171A

CLAMP,EDGE CLIP

CLAMP,EDGE CLIP

92173

CLAMP,12MM DIA.

CLAMP,12MM DIA.

92173A

Зажим

Зажим

92173B

CLAMP,HOLDER CLIP

CLAMP,HOLDER CLIP

92173C

CLAMP,84MM

CLAMP,84MM

92173D

CLAMP,IRON WIRE

CLAMP,IRON WIRE

92173E

CLAMP,RUBBER PLATE

CLAMP,RUBBER PLATE

92173F

CLAMP,CABLE CLIP

CLAMP,CABLE CLIP

92173G

Зажим

Зажим

92173H

CLAMP,FRONT FORK,LH

CLAMP,FRONT FORK,LH

92173I

CLAMP,FRONT FORK,RH

CLAMP,FRONT FORK,RH

92173J

Зажим

Зажим
