Передняя вилка Оригинальные запчасти для мотоциклов Suzuki DL650A,XA (2019)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

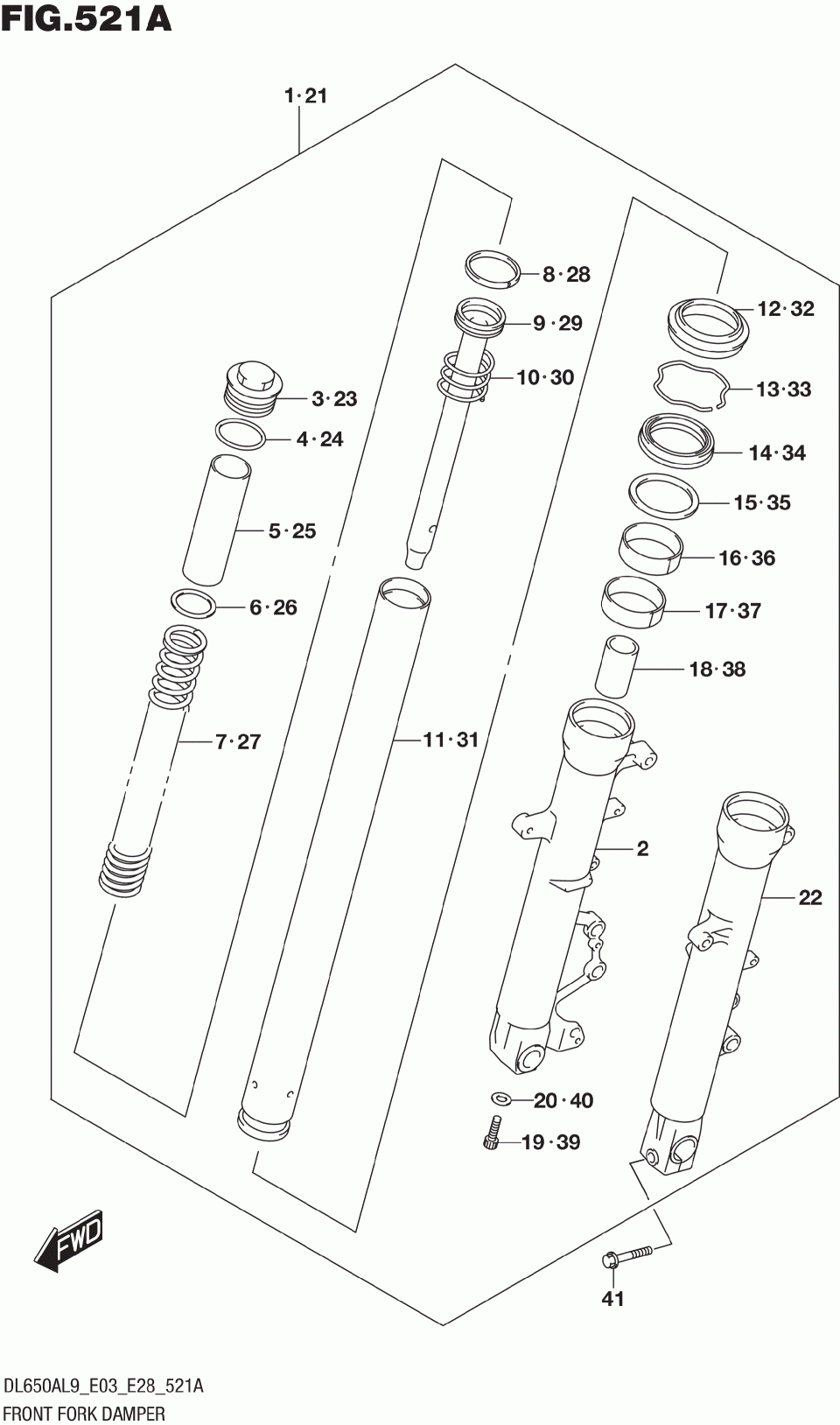

Передняя вилка

Suzuki DL650A,XA

Передняя вилка

#

oem код

название

цена

1

51103-28K10-291

DAMPER ASSY,FR FORK RH (BLACK

DAMPER ASSY,FR FORK RH (BLACK

2

51131-28K00-291

.TUBE,OUTER RH (BLACK)

.TUBE,OUTER RH (BLACK)

3

.BOLT,FORK

.BOLT,FORK

4

Кольцо

Кольцо

5

.COLLAR,SPRING

.COLLAR,SPRING

6

.SEAT,SPRING,LOWER

.SEAT,SPRING,LOWER

7

.SPRING,FR

.SPRING,FR

8

.RING,PISTON

.RING,PISTON

9

.PIPE SEAT

.PIPE SEAT

10

.SPRING,REBOUND

.SPRING,REBOUND

11

.PIPE,FORK

.PIPE,FORK

12

.SEAL,DUST

.SEAL,DUST

13

.RING,STOPPER

.RING,STOPPER

14

.SEAL OIL

.SEAL OIL

15

.SPACER,SEAL

.SPACER,SEAL

16

.BUSH,GUIDE

.BUSH,GUIDE

17

.BUSH SLIDE

.BUSH SLIDE

18

.PIECE,OIL LOCK

.PIECE,OIL LOCK

19

.BOLT (8X18)

.BOLT (8X18)

20

Прокладка

Прокладка

21

51104-28K10-291

DAMPER ASSY,FR FORK LH (BLACK

DAMPER ASSY,FR FORK LH (BLACK

22

51141-28K00-291

.TUBE,OUTER LH (BLACK)

.TUBE,OUTER LH (BLACK)

23

.BOLT,FORK

.BOLT,FORK

24

Кольцо

Кольцо

25

.COLLAR,SPRING

.COLLAR,SPRING

26

.SEAT,SPRING,LOWER

.SEAT,SPRING,LOWER

27

.SPRING,FR

.SPRING,FR

28

.RING,PISTON

.RING,PISTON

29

.PIPE SEAT

.PIPE SEAT

30

.SPRING,REBOUND

.SPRING,REBOUND

31

.PIPE,FORK

.PIPE,FORK

32

.SEAL,DUST

.SEAL,DUST

33

.RING,STOPPER

.RING,STOPPER

34

.SEAL OIL

.SEAL OIL

35

.SPACER,SEAL

.SPACER,SEAL

36

.BUSH,GUIDE

.BUSH,GUIDE

37

.BUSH SLIDE

.BUSH SLIDE

38

.PIECE,OIL LOCK

.PIECE,OIL LOCK

39

.BOLT (8X18)

.BOLT (8X18)

40

Прокладка

Прокладка

41

BOLT,HOLDER AXLE (8X40)

BOLT,HOLDER AXLE (8X40)
