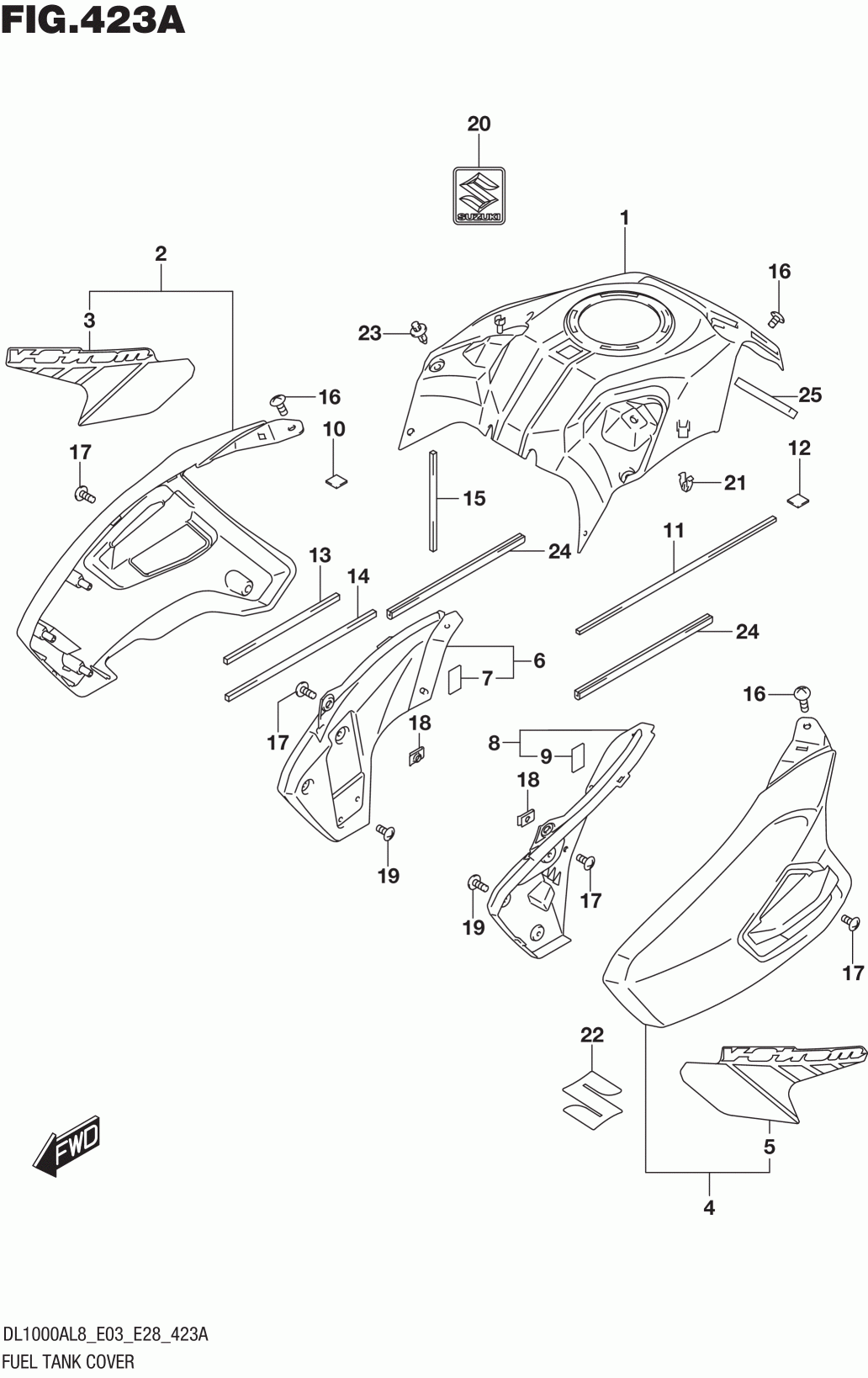

Fuel tank cover (dl1000al8 e03) (for yu1)

Suzuki DL1000A,XA
Suzuki
#oem кодцена
10
44612-13600
CUSHION, TANK COVER SIDE NO.4 (CUT AS REQUIRED)
11
44277-01H00
CUSHION, FUEL TANK COVER
12
94642-10GA0
CUSHION, FUEL TANK COVER NO.2
13
44176-31J00
CUSHION, TANK COVER SIDE NO.1
14
44177-31J00
CUSHION, TANK COVER SIDE NO.2
15
44178-31J00
CUSHION, TANK COVER SIDE NO.3
16
09139-06172
Болт (6x10)
17
09139-05074
BOLT (5X13)
18
09148-05052
Гайка
19
03241-0516B
Винт
20
68281-47HA0
EMBLEM,
21
09409-08326
Зажим
22
68111-47HA0
EMBLEM,
23
09409-06314-5PK
Зажим
24
44552-24B00
MOLDING, FUEL TANK
25
45289-05H00
Подушка
1
44191-31J00-YKV
COVER, FUEL TANK CENTER (BLACK)
2
44170-31J10-YKV
COVER, FUEL TANK SIDE RH (BLACK)
3
68125-31J00-BHA
.TAPE, FUEL TANK COVER RH
4
44180-31J10-YKV
COVER, FUEL TANK SIDE LH (BLACK)
5
68135-31J00-BHA
.TAPE, FUEL TANK COVER LH
8
44280-31J00
COVER, FUEL TANK FRONT LH
