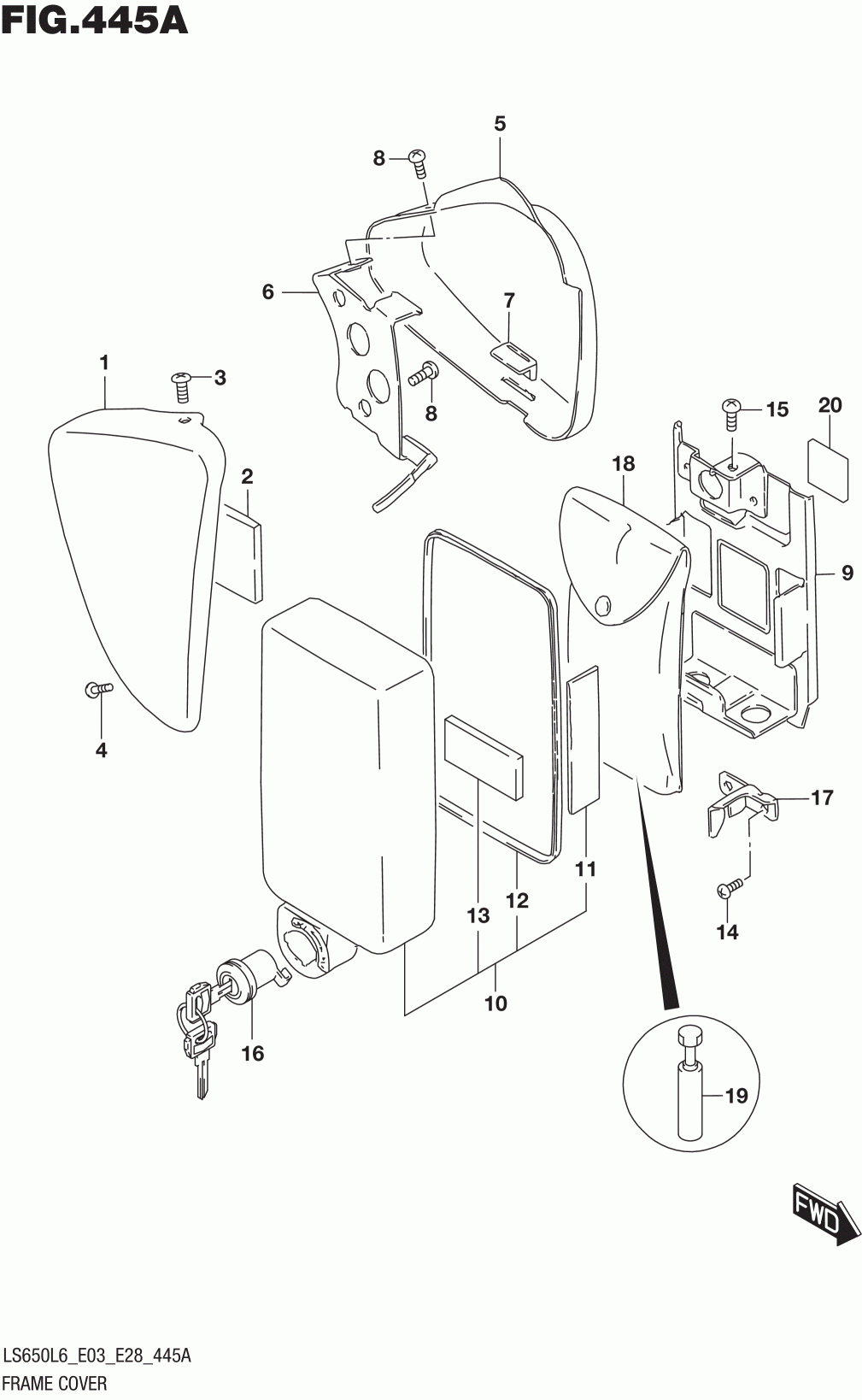

Обтекатель рамы

Suzuki LS650
Suzuki
#oem кодцена
10
47440-24B20
COVER, TOOL HOLDER
11
33652-07D00
.PROTECTOR, BATTERY
12
47445-24B00
.MOLDING, TOOL HOLDER
13
33652-31F00
.CUSHION, TOOL HOLDER
14
02142-0510B
Винт
15
02112-0610A
Винт
16
95700-24871
LOCK SET, TOOL HOLDER
17
47434-24B00
PLATE, TOOL HOLDER LOCK
18
09800-21055
TOOL ASSY
19
96220-24B00
GAUGE ASSY, TENSION
20
33652-20C00
PROTECTOR (50X50X5.0) (CUT AS REQUIRED PROFILE (30X30))
1-1
47100-24CB0-YSF
COVER ASSY, FRAME RH (BLUE)
1-2
47100-24CB0-YWW
COVER ASSY, FRAME RH (WHITE)
2
13719-84150
.CUSHION FRAME COVER RH
3
02142-0510B
Винт
4
02112-7516B
Винт
5-1
47200-24CB0-YSF
COVER ASSY, FRAME LH (BLUE)
5-2
47200-24CB0-YWW
COVER ASSY, FRAME LH (WHITE)
6
47180-24B03
BRACKET, FRAME COVER LH
7
47117-45000
CUSHION, FRAME COVER LH
8
02122-0612B
Винт
9
47430-24B01
HOLDER, TOOL
