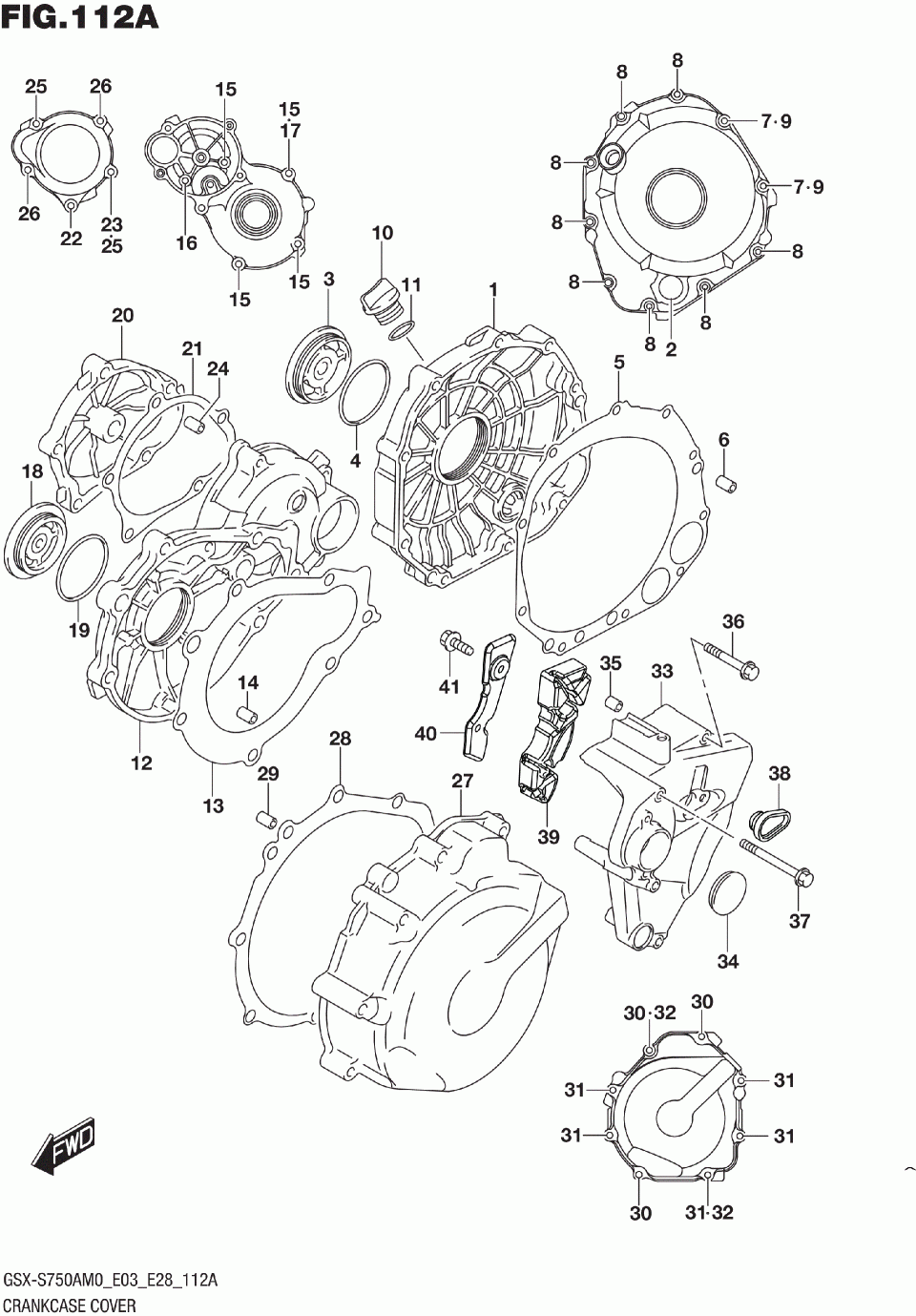

Боковые крышки

Suzuki GSX,S750Z,A,ZA

Боковые крышки

#

oem код

название

цена

1

Крышка сцепления

Крышка сцепления

10

PLUG,ENGINE OIL FILLER

PLUG,ENGINE OIL FILLER

11

O RING (D:3.1,ID:16.8)

O RING (D:3.1,ID:16.8)

12

COVER,STARTER CLUTCH

COVER,STARTER CLUTCH

13

GASKET,STARTER CLUTCH COVER

GASKET,STARTER CLUTCH COVER

14

Штифт

Штифт

15

BOLT,STARTER CLUTCH COVER (6X 5)

BOLT,STARTER CLUTCH COVER (6X 5)

16

BOLT,CLUTCH COVER (6X35)

BOLT,CLUTCH COVER (6X35)

17

GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)

18

PLUG (36X10)

PLUG (36X10)

19

O-RING (D:3.1,ID:32.7)

O-RING (D:3.1,ID:32.7)

2

.LENS, OIL LEVEL CHECK

.LENS, OIL LEVEL CHECK

20

CAP,STRAINER IDLE GEAR

CAP,STRAINER IDLE GEAR

21

GASKET,START IDLE GR CAP

GASKET,START IDLE GR CAP

22

BOLT,ENG SPROCKET COVER (6X55

BOLT,ENG SPROCKET COVER (6X55

23

GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)

24

Штифт

Штифт

25

BOLT,STARTER CLUTCH COVER (6X 5)

BOLT,STARTER CLUTCH COVER (6X 5)

26

BOLT,CLUTCH COVER (6X35)

BOLT,CLUTCH COVER (6X35)

27

COVER,MAGNETO

COVER,MAGNETO

28

GASKET,MAGNETO COVER

GASKET,MAGNETO COVER

29

Штифт

Штифт

3

CAP,CLUTCH RELEASE ADJUST

CAP,CLUTCH RELEASE ADJUST

30

BOLT,CLUTCH COVER (6X30)

BOLT,CLUTCH COVER (6X30)

31

BOLT,MAGNETO COVER (L45)

BOLT,MAGNETO COVER (L45)

32

GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)

33

COVER, ENGINE SPROCKET

COVER, ENGINE SPROCKET

34

CAP (OD:36)

CAP (OD:36)

35

Штифт

Штифт

36

BOLT,MAGNETO COVER (6X65)

BOLT,MAGNETO COVER (6X65)

37

BOLT,ENG SPROCKET COVER (6X95

BOLT,ENG SPROCKET COVER (6X95

38

CAP, ENG SPROCKET COVER HOLE

CAP, ENG SPROCKET COVER HOLE

39

DAMPER, ENGINE SPROCKET COVER

DAMPER, ENGINE SPROCKET COVER

4

O-RING (D:2.4,ID:52.6)

O-RING (D:2.4,ID:52.6)

40

PLATE, ENGINE SPROCKET COVER

PLATE, ENGINE SPROCKET COVER

41

Болт (6x10)

Болт (6x10)

5

GASKET,CLUTCH COVER

GASKET,CLUTCH COVER

6

Штифт

Штифт

7

GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)

8

BOLT,CLUTCH COVER (6X30)

BOLT,CLUTCH COVER (6X30)

9

BOLT,MAGNETO COVER (6X40)

BOLT,MAGNETO COVER (6X40)
