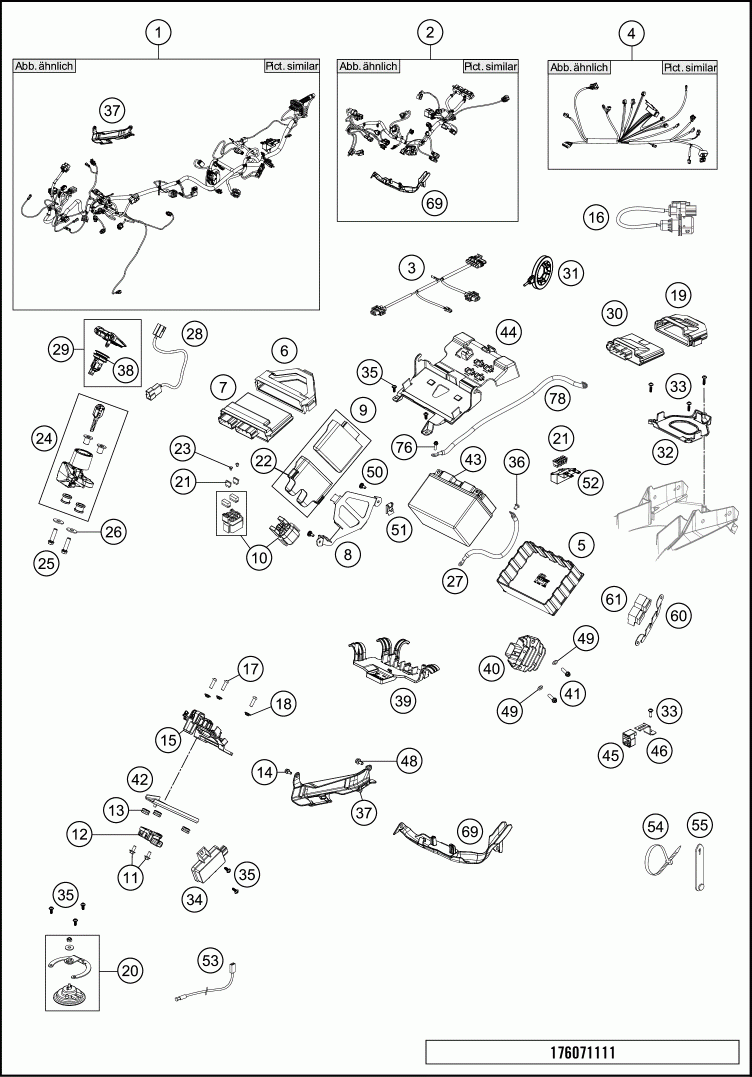

Электрика

KTM 2018 1290 SUPER ADVENTURE R CHASSIS
KTM
#oem кодцена
1
60711175033
Main wiring harness R cpl.
2
60711085100
Engine harness
3
60311079000
WIRING HARNESS HEAD LIGHT
4
60311076000
REAR WIRING HARNESS
5
60311053050
BA TTERIE HOUSING
5
60311053050
BA TTERIE HOUSING
6
60341031050
ECU RUBBER BRACKET
6
60341031050
ECU RUBBER BRACKET
7
61341031300
Control unit EFI
7
61341031300
Control unit EFI
8
60311057050
BRACKET ELECTRIC
8
60311057050
BRACKET ELECTRIC
9
60416031100
ELECTRONIC CONTROL UNIT SAFE
9
60416031100
ELECTRONIC CONTROL UNIT SAFE
11
0024060136
HH collar screw M6x13 TX30
11
0024060136
HH collar screw M6x13 TX30
12
60342090000
SLOPING POSITIONS SENSOR
12
60342090000
SLOPING POSITIONS SENSOR
13
62142041000
DAMP . COMPONENT ABS MODUL
13
62142041000
DAMP . COMPONENT ABS MODUL
14
69008021160
special screw M5x12
14
69008021160
special screw M5x12
15
60711048000
Connector support front
15
60711048000
Connector support front
16
60411078050
Wiring harness
16
60411078050
Wiring harness
17
0738060201
FLAT HEAD SCREW ISO7380 M6X20
17
0738060201
FLAT HEAD SCREW ISO7380 M6X20
18
76508043050
COLLAR BUSHING
18
76508043050
COLLAR BUSHING
19
60711033050
Rubber band
19
60711033050
Rubber band
20
60711060033
Direct current horn complete
20
60711060033
Direct current horn complete
21
58011109140
FUSE 40 A
21
58011109140
FUSE 40 A
21
58011109130
FUSE 30 A
21
58011109130
FUSE 30 A
21
58011109125
FUSE 25 A
21
58011109125
FUSE 25 A
21
58011109115
FUSE 15 A
21
58011109115
FUSE 15 A
21
58011109110
FUSE 10 A 2000
21
58011109110
FUSE 10 A 2000
22
60316029000
RUBBER EDS-CONTROL UNIT
22
60316029000
RUBBER EDS-CONTROL UNIT
23
0902060083
AH OVAL SCREW ISO 7380 M 6X8
23
0902060083
AH OVAL SCREW ISO 7380 M 6X8
24
60711066000
Ignition lock Race-on 868MHz
24
60711066000
Ignition lock Race-on 868MHz
25
0025080306S
HH COLLAR SCREW M8X30 TX40
25
0025080306S
HH COLLAR SCREW M8X30 TX40
26
0021080003
WASHER DIN9021-A 8,4
26
0021080003
WASHER DIN9021-A 8,4
27
60311059050
BA TTERIE CABLE
27
60311059050
BA TTERIE CABLE
28
60711042050
Провод
28
60711042050
Провод
29
60714013033B2
Power socket complete silver
29
60714013033B2
Power socket complete silver
30
60711033000
Control unit MCU 3.0
30
60711033000
Control unit MCU 3.0
31
69011168000
Antenna keyless
31
69011168000
Antenna keyless
32
60708019010
Суппорт
32
60708019010
Суппорт
33
0081050181
SCREW FOR PLASTIC K50X18 T20
33
0081050181
SCREW FOR PLASTIC K50X18 T20
34
60312032000
RECEIVER AIR PRESSURE SENSOR
34
60312032000
RECEIVER AIR PRESSURE SENSOR
35
0081050121
EJOT PT screw K50x12
35
0081050121
EJOT PT screw K50x12
36
0902060083
AH OVAL SCREW ISO 7380 M 6X8
36
0902060083
AH OVAL SCREW ISO 7380 M 6X8
37
60311047000
CABLE CHANNEL R/S
37
60311047000
CABLE CHANNEL R/S
38
60711042000
Power socket 12V
38
60711042000
Power socket 12V
40
60311034000
VOL TAGE REGULA TOR
40
60311034000
VOL TAGE REGULA TOR
41
0025060206
HH collar screw M6x20 TX30
41
0025060206
HH collar screw M6x20 TX30
42
60342090040
BRACKET SLOPING POSITIONS SENS
42
60342090040
BRACKET SLOPING POSITIONS SENS
43
60011053000
BA TTERY 12V/11AH 03
43
60011053000
BA TTERY 12V/11AH 03
44
60308017000
BA TTERIE COVER
44
60308017000
BA TTERIE COVER
45
61041085050
RUBBER SUPP . PRESSURE SENS. 05
45
61041085050
RUBBER SUPP . PRESSURE SENS. 05
46
60311040100
BRACKET PRESSURE SENSOR
46
60311040100
BRACKET PRESSURE SENSOR
48
0023060123
COLLAR SCREW M6X12 TX
48
0023060123
COLLAR SCREW M6X12 TX
49
60007020040
PLASTIC WASHER 03
49
60007020040
PLASTIC WASHER 03
50
0025050126
HH collar screw M5x12 TX30
50
0025050126
HH collar screw M5x12 TX30
51
54603048200
RANGE CHANGE METAL NUT M5
51
54603048200
RANGE CHANGE METAL NUT M5
52
58411087050
RUBBERCOVER F.LOCKHOLDE R
52
58411087050
RUBBERCOVER F.LOCKHOLDE R
53
61111018100
TEMPERA TURE SENSOR
53
61111018100
TEMPERA TURE SENSOR
54
44011076140
CABLE TIE 140/2,5MM BLACK
54
44011076140
CABLE TIE 140/2,5MM BLACK
54
44011076200
CABLE TIE 200/3,6MM BLACK
54
44011076200
CABLE TIE 200/3,6MM BLACK
54
44011076305
CABLE TIE 300/4,8MM BLACK
54
44011076305
CABLE TIE 300/4,8MM BLACK
55
60011093045
RUBBER CABLE TIE 45MM 03
55
60011093045
RUBBER CABLE TIE 45MM 03
55
60011093060
RUBBER CABLE TIE 60MM 03
55
60011093060
RUBBER CABLE TIE 60MM 03
55
60011093075
RUBBER CABLE TIE 75MM 03
55
60011093075
RUBBER CABLE TIE 75MM 03
60
60711057050
Retaining bracket
60
60711057050
Retaining bracket
61
61111057000
RELA Y CM1A-R-12 V-H80 07
61
61111057000
RELA Y CM1A-R-12 V-H80 07
69
60311046000
CABLE CHANNEL L/S
69
60311046000
CABLE CHANNEL L/S
76
0025050166
HH collar screw M5x16 TX30
76
0025050166
HH collar screw M5x16 TX30
78
60311097000
GROUND CABLE
78
60311097000
GROUND CABLE
