Механизм переключения

KTM 2018 1290 SUPER DUKE GT ENGINE

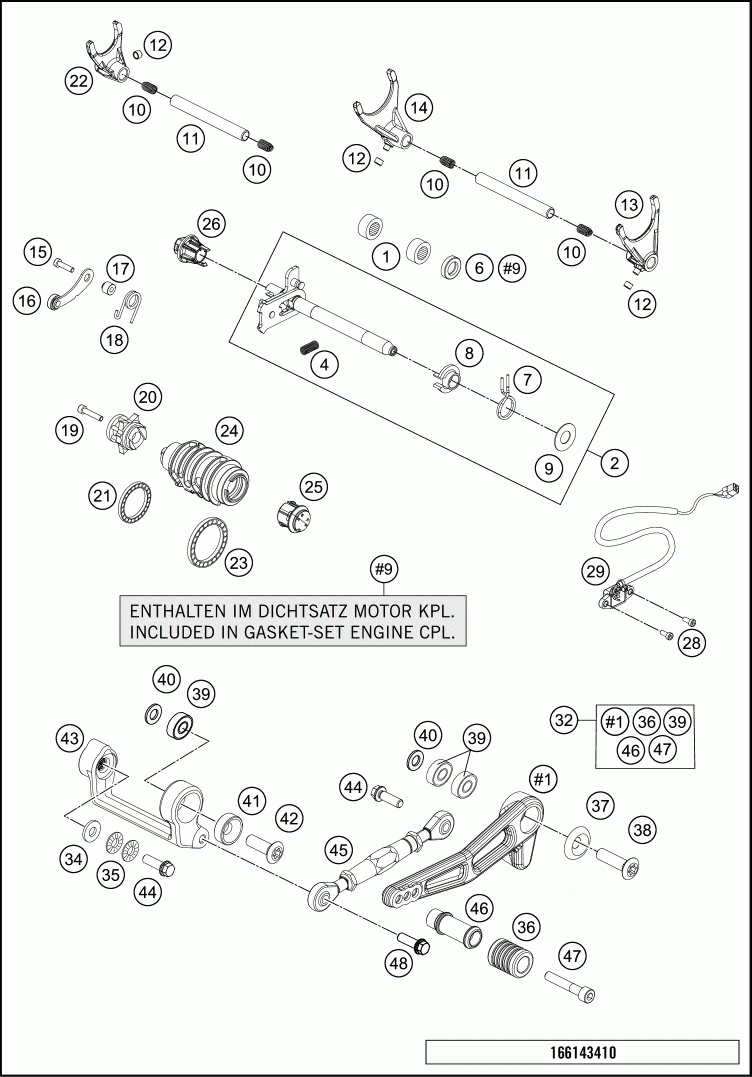

Механизм переключения

#

oem код

название

цена

1

needle sleeve HK 1412 14x20x12

needle sleeve HK 1412 14x20x12

2

SHIFT SHAFT CPL.

SHIFT SHAFT CPL.

4

TENSIONING SPRING 0,8MM

TENSIONING SPRING 0,8MM

6

radial shaft seal 14x24x6 B

radial shaft seal 14x24x6 B

7

RETURN SPRING 2.3 MM

RETURN SPRING 2.3 MM

8

SPRING GUIDE

SPRING GUIDE

9

STOP DISK 14X30X1

STOP DISK 14X30X1

10

PRESSURE SPRING 0,9MM

PRESSURE SPRING 0,9MM

11

SHIFT RAIL 11,8X105MM

SHIFT RAIL 11,8X105MM

12

SHIFTING ROLLER 6X8X5,2

SHIFTING ROLLER 6X8X5,2

13

SHIFT FORK 2-3 GEAR

SHIFT FORK 2-3 GEAR

14

SHIFTING FORK 08

SHIFTING FORK 08

15

HH collar screw M6x20 TX30

HH collar screw M6x20 TX30

16

LOCKING LEVER CPL.

LOCKING LEVER CPL.

17

SLEEVE FOR LOCKING LEVER 07

SLEEVE FOR LOCKING LEVER 07

18

SPRING - LOCKING LEVER

SPRING - LOCKING LEVER

19

AH SCREW DIN0912-M 6X30 12.9

AH SCREW DIN0912-M 6X30 12.9

20

SHIFT LOCA TING DRUM CPL.

SHIFT LOCA TING DRUM CPL.

21

BALL BEARING 61805 C3

BALL BEARING 61805 C3

22

SHIFT FORK 5-6 GEAR

SHIFT FORK 5-6 GEAR

23

GROOVED BALL BEARING 6808 JRC3

GROOVED BALL BEARING 6808 JRC3

24

SHIFTING DRUM 6G

SHIFTING DRUM 6G

25

magnet holder cpl.

magnet holder cpl.

26

MAGNET HOLDER

MAGNET HOLDER

28

CYL. SCREW DIN6912 M5X14 8.8

CYL. SCREW DIN6912 M5X14 8.8

29

GEAR POSITION SENSOR

GEAR POSITION SENSOR

32

SHIFT LEVER CPL. 16

SHIFT LEVER CPL. 16

34

STEEL WASHER 6,4X17X3

STEEL WASHER 6,4X17X3

35

PAIR OF WASHERS M 6 NORDLOCK

PAIR OF WASHERS M 6 NORDLOCK

36

RUBBER FOR SHIFT LEVER 05

RUBBER FOR SHIFT LEVER 05

37

SPECIAL WASHER D=23X7,2MM

SPECIAL WASHER D=23X7,2MM

38

AH-COLLAR SCREW M8X30 ISA45

AH-COLLAR SCREW M8X30 ISA45

39

GROOVED BALL BEAR. 608 2RS C3

GROOVED BALL BEAR. 608 2RS C3

40

washer DIN 125 A -8.4

washer DIN 125 A -8.4

41

SPECIAL WASHER D=20X6,8MM

SPECIAL WASHER D=20X6,8MM

42

COUNTER-SUNK SCREW ISA45 M8X26

COUNTER-SUNK SCREW ISA45 M8X26

43

RELA Y LEVER BLACK 07

RELA Y LEVER BLACK 07

44

HH collar screw M6x20 TX30

HH collar screw M6x20 TX30

45

SHIFT ROD CPL.

SHIFT ROD CPL.

46

GEAR LEVER

GEAR LEVER

47

AH SCREW DIN0912-M 6X45

AH SCREW DIN0912-M 6X45

48

HH collar screw M6x16 TX30 SL

HH collar screw M6x16 TX30 SL
