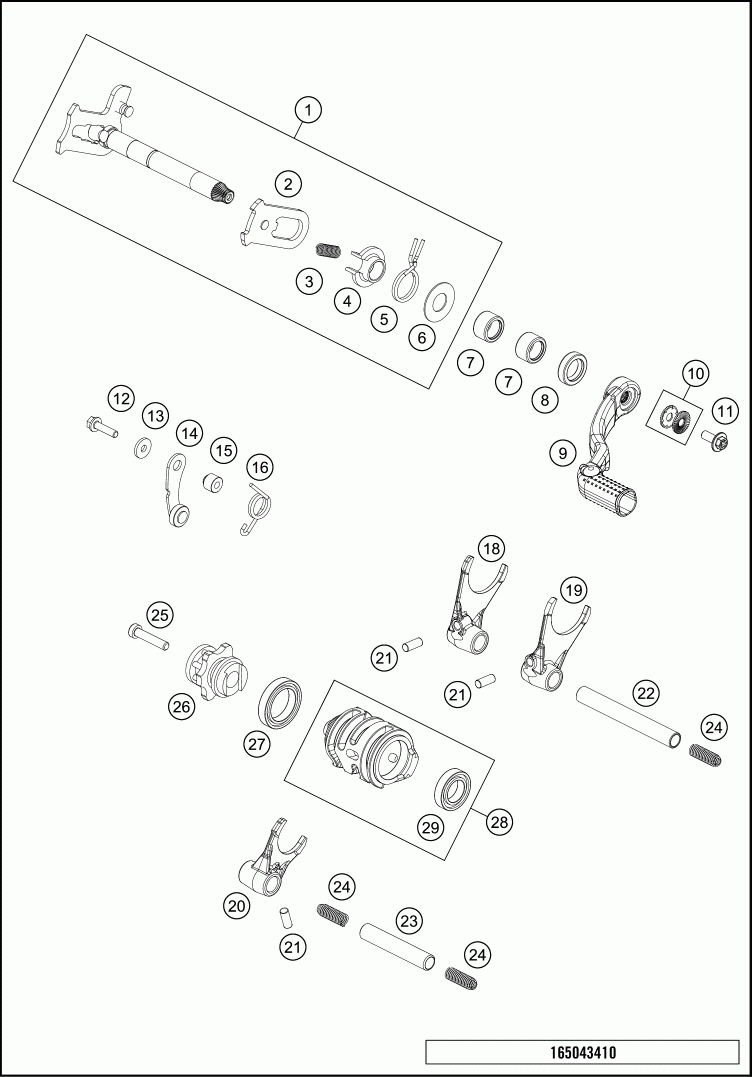

Механизм переключения

KTM 2018 150 SX ENGINE
KTM
#oem кодцена
1
54834005133
Вал переключения в сборе
2
61234008044
SLIDING PLATE
3
56534013100
TENSIONI NG SPRING 0,8MM
4
54634020000
SPRING GUIDE
5
54834014000
RETURN SPRING 03
6
54634050000
STOP DISK 14X30X1
7
54632095000
NEEDLE BEAR.HK 1412 14X20X12
8
0760142460
SHAFT SEAL RING 14X24X6 B
9
50434031000
SHIFT LEVER CPL.
10
50233041500
PAIR NORDLOCK WASHER M6
11
0024060156S
HH COLLAR SCREW M6X15 TORX30
12
0025050206
HH COLLAR SCREW M5X20 TX30
13
0349000050
WASHER DIN7349-5X15 X2
14
50334024144
LOCA TING LEVER CPL. 08
15
54634052300
SLEEVE FOR LOCKING LEVER
16
54834023000
LOCKING LEVER SPRING 03
18
50434003000
SHIFTING FORK 1ST/3RD GEAR
19
50434002000
SHIFTING FORK 2ND/4TH GEAR
20
50434001000
SHIFTING FORK 5/6 GEAR
21
0402061480
NEEDLE ROLLER DIN5402 6X14,8
22
54834020000
SHIFT . RAIL C. SHAFT 250/300
23
54834019000
SHIFT . RAIL MAIN SHAFT 250/300
24
58038023200
PRESSURE SPRING 0,9MM
25
0912060303
AH SCREW DIN6912 M6X30 8.8
26
50434015100
SHIFT DRUM LOCA TING CPL.
27
0625618050
BALL BEARING 61805 C3
28
50434012033
SHIFTING DRUM CPL.
29
0625069034
BALL BEARING 6903 C4
