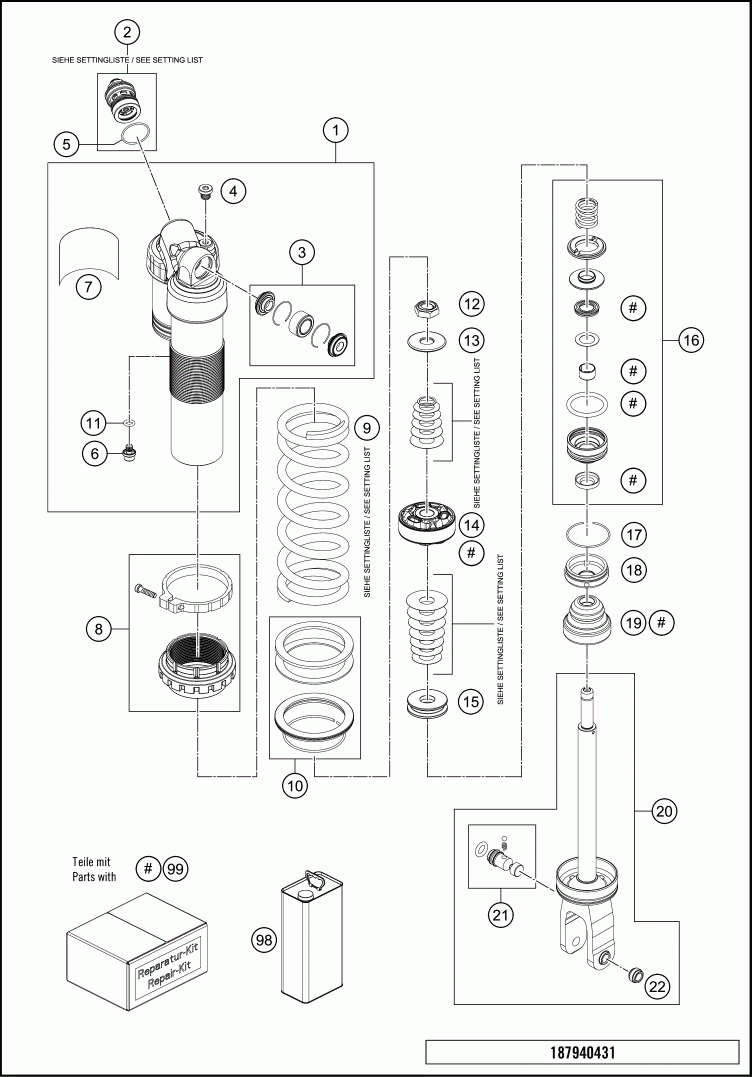

Амортизатор в разборе

KTM 2018 450 SX-F FACTORY EDITION CHASSIS
KTM
#oem кодцена
1
50181144S1
MONOSHOCK UPPER PAR T CPL.
2
50181101S23
DCC cpl.
3
R12025
REP .KIT BEAR./SEAL KGW 1525 HD
4
50180095
BLEED PLUG R 1/8
5
50180218
O-RING 25X1,5 VITON
6
36120151S
SCREW PLUG M5X6
7
52000146
STICKER WP WARNING 92X53MM
8
50180991S
SPRING ADJUSTER PLASTIC CPL.
9
91210100S
SPRING 260 45 N/MM
9
91210124S
SPRING 260 42 N/MM
9
91210101S
SPRING 260 48 N/MM
10
50180824S
SPRING PLATE SET
11
46810893
O-RING NBR 5,28X1,78
12
50181207
Mutter M12x1
13
50181092
REBOUND DISC 12X34 T2 H0
14
50181255S
Kolben i?12 a?50 kpl. MY18
15
50181091
REBOUND DISC 12X43 H8
16
50180603SA
ADAPTER D50 H28 CPL.
17
50180126
CIRCLIP 53X1,75
18
50180626
RESERVOIR CAP D=50 H=10 09
19
50181100
BUMP RUBBER ?57/18 H46
20
50181148S1
MONOSHOCK BOTTOM PAR T CPL.
21
50181094S
ADJUSTING SCREW M8X0,5 CPL.
22
46811205
ADAPTOR-BUSH M10x1,50, D=15
98
50180751S1
SHOCK ABSORBER FLUID 5 LT
99
RP10019
Revisionskit 5018 Link 2019
